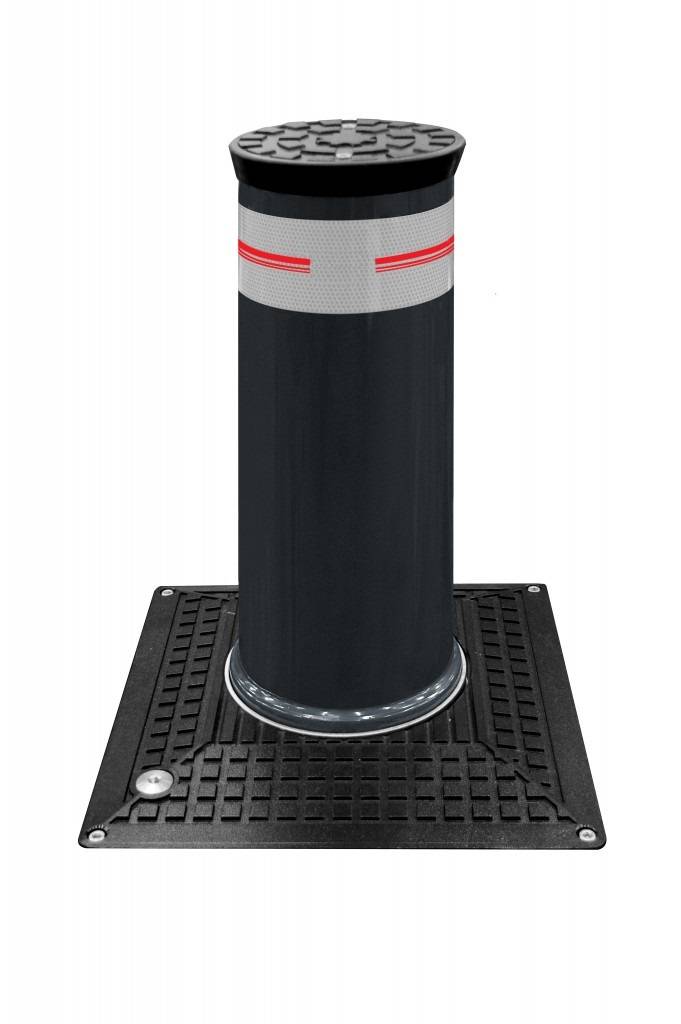

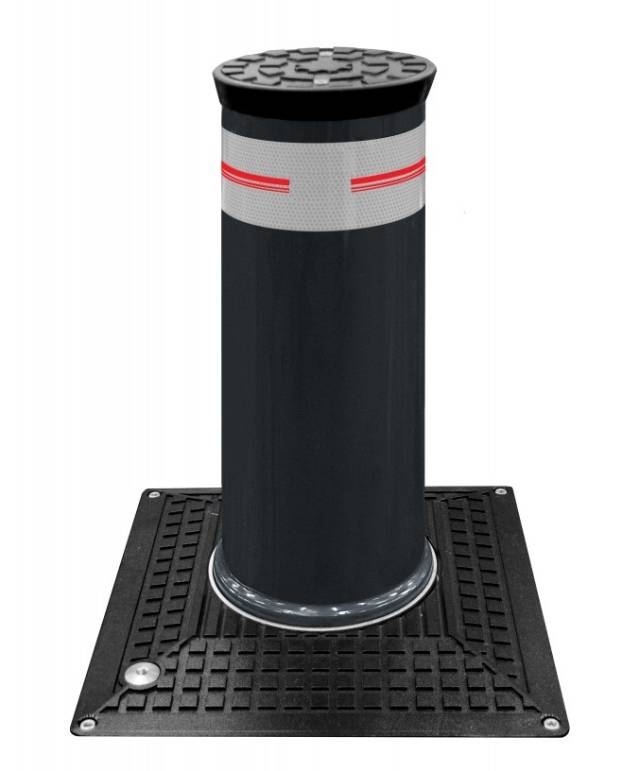

Macs Vigilo 200mm Automatic Security Bollard

Application

Suitable for use on both low usage residential applications and high usage commercial sites.

Description

The Macs Vigilo security bollard is suitable for use in both low and high-frequency applications. The bollard comes with a self-contained hydraulic pump and piston assembly for ease of installation and servicing.

Features and benefits:

  • Available in 500 mm (2250 and 2251) or 800 mm heights (2280 and 2281).
  • Hydraulic pump integrated within bollard for ease of installation and increased reliability and intensive use.
  • Manual override allows for safe lowering in case of power failure.
  • CE marked.

Applications:

Suitable for use on both low usage residential applications and high usage commercial sites.

General information

Color

RAL coated

Features

Emergency manual lowering, hydraulic pump built in to bollard, reflective adhesive strip

Finish

Powder coated (standard anthracite) or stainless steel

Material

Powder Coated Steel or Stainless steel

Shape

Cylinder

Size

200 x 500 mm

200 x 800 mm

200 x 600 mm

Uniclass 2015

Pr_20_76_08_84 Stainless steel rising bollardsPrimary

CAWS

Q50/194 Retracting bollards

Specification data - Stainless steel rising bollards

Product Reference

Macs Vigilo 200 mm Automatic Security Bollard

Type

VIGILO 2250

Stroke: 500 mm.

VIGILO 2251

Stroke: 500 mm. Integrated LED lighting.

VIGILO 2280

Stroke: 800 mm.

VIGILO 2281

Stroke: 800 mm. Integrated LED lighting.

Material/ Finish

Brushed stainless steel, 1.4301

Powder coated Anthracite

RAL painted steel

Consult manufacturer for details and insert requirement.

Accessories

None

Reflective adhesive strip

Standard product features

Diameter:

200 mm.

Thickness:

4 mm.

Technical characteristics:

  • Rising speed: 5.1s (2250/2251), 7.7s (2280/2281).
  • Lowering Speed: 4.3s (2250/2251), 7.0s (2280/2281).
  • Connection cable to control unit: Standard 10 mt.
  • Type of Use: 52 cycles per hour/ 151,840 per year (2250/2251). 48 cycles per hour/ 140,160 per year (2280/2281).

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
