Macs Coral 100 mm Automatic Bollard
Application

For use in private and commercial security applications, such as car parks, private parking spaces, driveway security, and shop premises.

Description

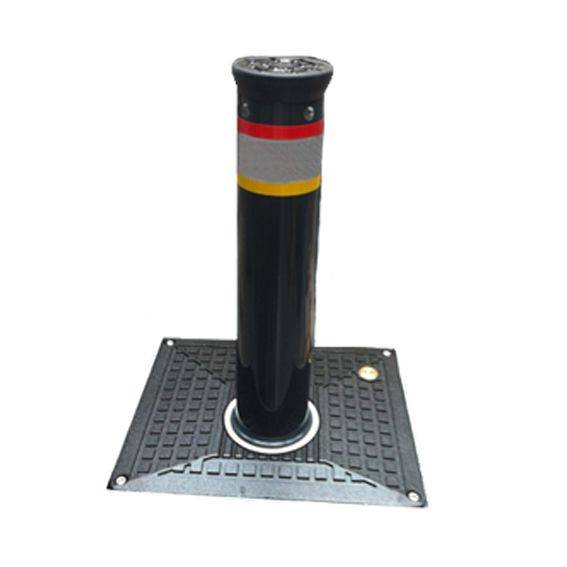

Security bollard designed to control and restrict vehicle access. The bollard is supplied with an anti-corrosion powder coated steel cylinder, in a diameter of 100 mm and in heights of 500 mm and 800 mm. Reflective bands, integrated LED's and dual limit switches allow for high visibility, reliability and safety.

It has a self-contained hydraulic pump and piston assembly for ease of installation and servicing. Once the foundation has been secured, the bollard can be fitted and ready for use as soon as the wiring has been completed, offering an easy to operate security solution.

The Elpro control unit allows for the retractable bollards to be operated in various ways, in either automatic or step by step mode. Additional equipment such as traffic indicator lights, safety photocells and vehicle induction loops can be easily integrated to add additional safety to the system. The integrated manual override allows for lowering in an emergency or in case of power failure.

Features and benefits:

  • Available in heights of 500 mm or 800 mm.
  • Hydraulic pump integrated within bollard for ease of installation and increased reliability and intensive use.
  • Manual override allows for safe lowering in case of power failure.
  • Optional LED lights integrated into bollard cylinder.
  • Available in variety of RAL painted finishes.

Applications:

For use in private and commercial security applications, such as car parks, private parking spaces, driveway security, and shop premises.

General information
Finish

Powder coated

Material

Steel

Uniclass 2015
Pr_20_76_08_12 Carbon steel rising bollardsPrimary
CAWS

Q50/194 Retracting bollards

Specification data - Carbon steel rising bollards
Product Reference

Macs Coral 100 mm Automatic Bollard

Height

500 mm

4 seconds opening time.

800 mm

6 seconds opening time.

Colour

Anthracite

Special order

Insert RAL colour requirement.

LED lighting

Not required

Required

Standard product features

Material:

Steel.

Finish:

Powder coated.

Diameter:

100 mm

Cylinder thickness:

5 mm.

Connection cable to control unit:

10 m.
