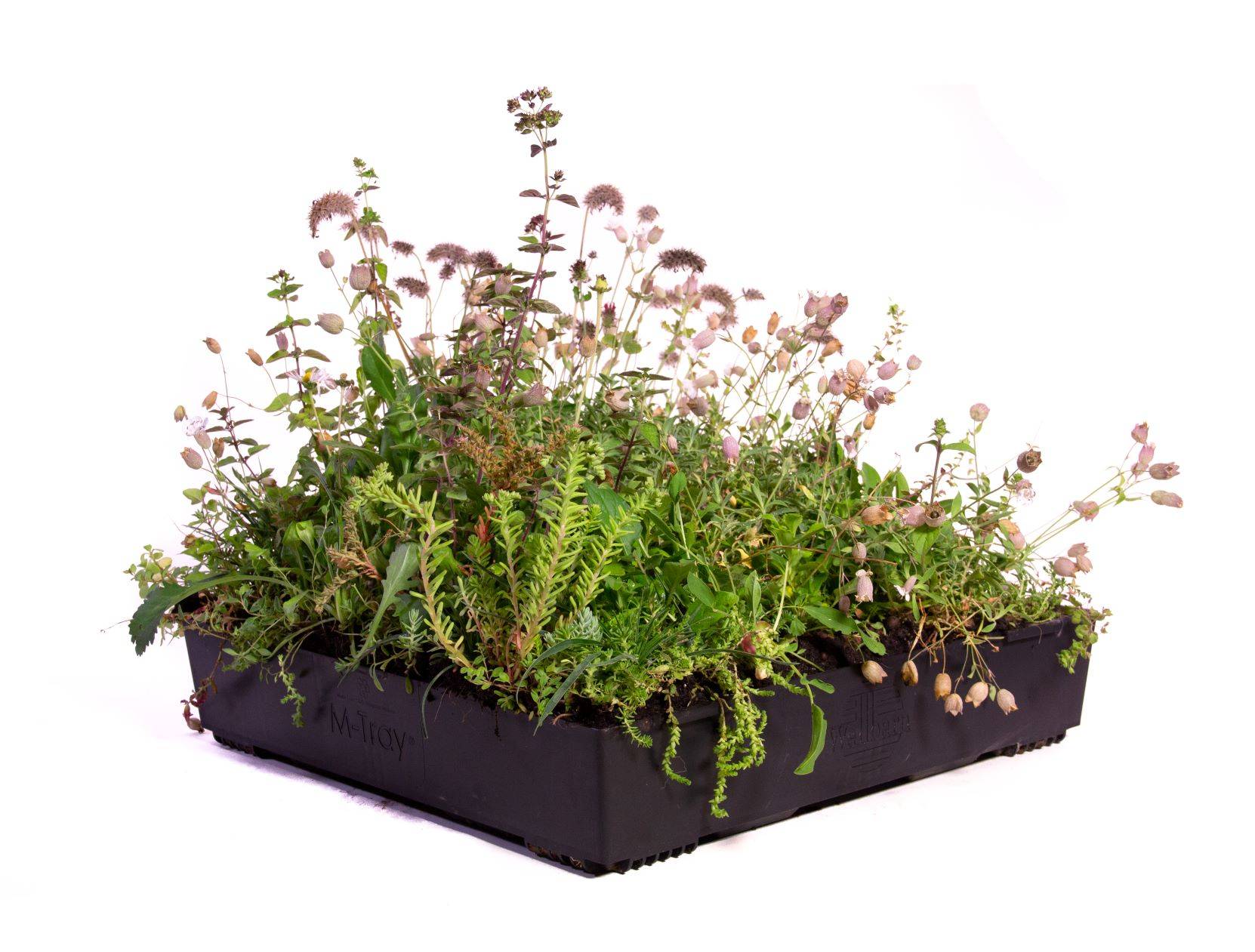

M-Tray® Wildflower Modular Green Roof System - Wildflower Species

Verified by manufacturer 5 days ago

Wallbarn Ltd Third party certifications:
  • Warringtonfire

    Warringtonfire

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Statement of compliance

    Certificate type

  • Wind Uplift Test Certificate

    Certificate type

M-Tray modular green roof system, comprising plastic carrier / drainage module, free draining low nutrient substrate, wildflower sedum mix grown from seed and recycled polyester filtration membrane.

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

Suitable for domestic, retro-fitted or large scale commercial green roofs.

Description

M-Tray modular green roof system, comprising plastic carrier / drainage module, free draining low nutrient substrate, sedum mix grown from seed and recycled polyester filtration membrane.


A mix of sedum for base cover of the M‐Tray® modules with a variety of low‐growing, perennial wildflower species. These plants are tolerant to dry conditions and suitable for substrate a depth of 100 mm.


The wildflower plants will produce flowers up to a height of approximately 50 cm and attract bees and butterflies. As it is made up of a wide range of native (& wild origin) flowering species and grasses to maximum diversity and reduce the amount of dead vegetation at the end of the summer.


Wildflowers often take 2‐3 years to fully germinate and flower, and some species are viable only as annual and biennial flowers, so new seeds should be broadcast regularly.


Features and benefits:

  • A fast and easy way to install truly instant, future-proof green roofs.
  • Portable and lightweight, ideal for areas with restricted access.
  • Mix of succulent sedum species to ensure year round coverage and low maintenance.
  • Supplied as complete ready-grown units.
  • Mix of at least 12 species of Northern European sedum species grown from seed.
  • Each unit or module clips together to the next to give a seamless surface of vegetation.
  • The sedum will grow over the top of the side walls of the tray.
  • All plants fully established and grown for a minimum of six months to ensure strong, healthy vegetation with at least 85% coverage.
  • Sustainably sourced, bespoke substrate mix developed to ensure plant growth in long-term.
  • Substrate depth and makeup is consistent across the roof.
  • Plants less likely to be shocked or need time to bed into substrate after installation.
  • An instant green roof.
  • No fixings required; the weight of the system holds everything in place.
  • Mess, disruption and time of installation are avoided as all soil and substrate is contained.
  • Access to the roof deck is easy - simply lift one module up.
  • Improved connection.
  • Optimum drainage.
  • Modules made from recycled polypropylene.
  • Made in UK.
  • Substrate: Less than 50% organics. Tested to and complies with BS 8616:2019.
  • Complies with GRO Code 2021.
  • Tested in accordance with CEN/TS 1187 Test 4. . Achieves fire classification of BROOF t(4).
  • Has EXAP Report based on CEN/TS 16459:2019.

General information

Color

Finish

Natural

Material

Vegetation

Shape

Square

Length

500 mm

Width

500 mm

Height

100 mm

Warranty description

15 year

Manufacturer guidance

Plastic limited warranty is 15 years, substrate warranty limited to specification and compliance to British Standards.

No warranty on living products.

Uniclass

Ss_45_40_47_28 Extensive green roof systemsPrimary

CAWS

Q37/130 Extensive green roof

Product range

Green Roof - Modular, Rollout, Extensive and Intensive

Specification data - Extensive green roof systems

Protection

-

Protection layer

Wallbarn PPST geotextile fabric.

PECT geotextile fabric.

Manufacturer guidance

Loose laid.

Root barrier

Not required.

Separation layer

Wallbarn PPST geotextile fabric.

Wallbarn PECT geotextile fabric.

Moisture control

-

Drainage layer

Included.

Filter membrane

Included.

Moisture retention mat

Included.

Drainage ancillaries

Included.

Planting systems

-

Planting medium

Included.

Edge restraints

Aluminium.

Vegetation

Birdsfoot trefoil.

Ribwort plantain.

Selfheal.

Buttercup.

Dog violet.

Show more

Aluminium edging

Not required.

Required.

Components

Tray comprises pre-grown, multi-layered green roof system with drainage membrane, filtration layers, substrate and vegetation pre-installed.

Weight

25 kg.

Guidance for specification option:

Planted, saturated weight.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %
