Lyra Granite
Verified by manufacturer 2 months ago
Flamed Finish
Flamed Finish

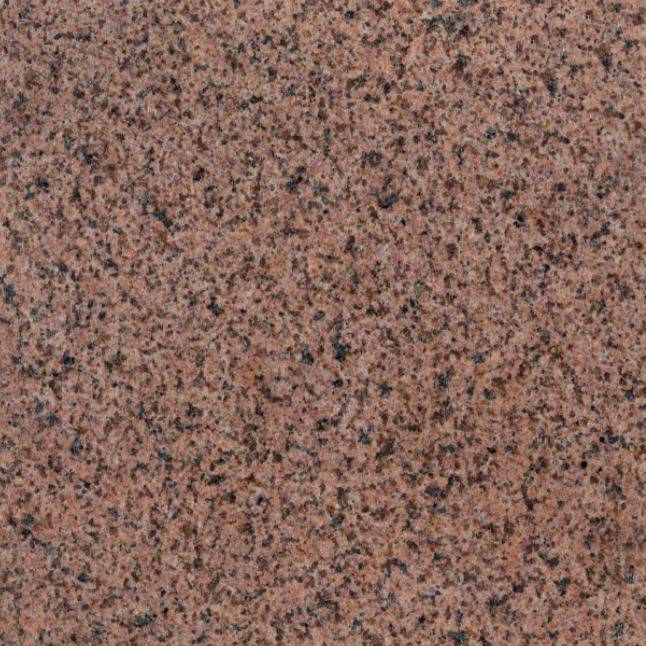

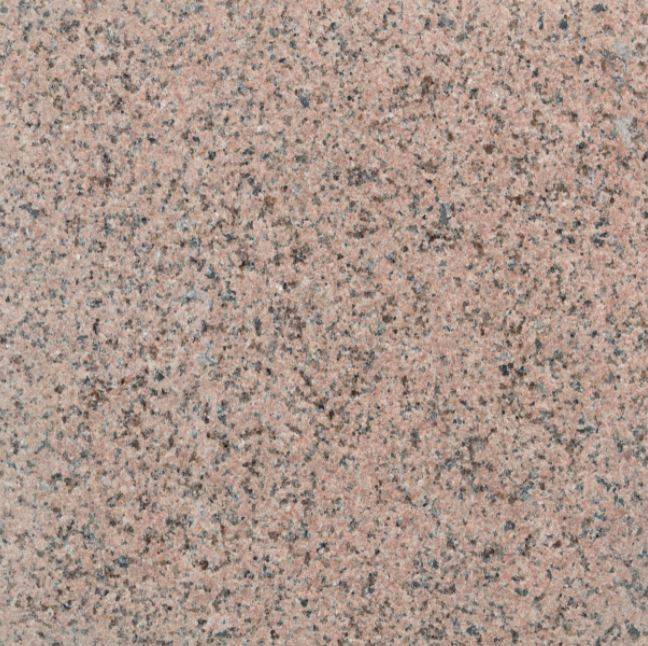

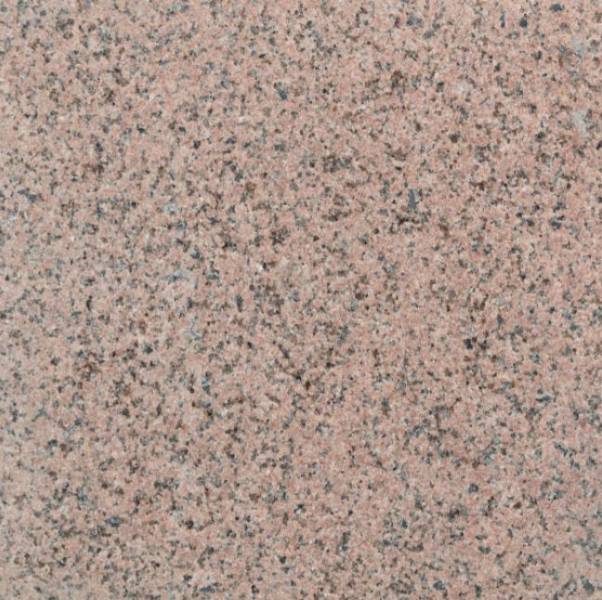

Hard-wearing, strong and durable pink and red granite .
Application
Suitable for both pedestrian and vehicular trafficked areas.
Available across all product areas including Paving, Setts, Kerbs, Tactile, Steps, Water Management, Bespoke Street furniture, Masonry and Specials – allowing for the creation of unified schemes.
Description
Hard-wearing, strong and durable granite slabs available in three finish options.
Features and benefits:
- Blasted, flamed and polished finish options to match different applications and their needs, whether they call for a smooth aesthetic or superior non-slip properties.
- UKCA marked in accordance with the latest legislation.
- Reddish Pink granite.
- Available in a range of standard plan sizes.
- Bespoke size options can be accommodated upon request.
General information
Color | Grey |
Finish | Blasted Flamed Polished |
Material | Granite |
Shape | Rectangle Square |
Length | 200 mm 300 mm 450 mm 600 mm 900 mm |
Width | 100 mm 150 mm 200 mm 450 mm 600 mm |
Height | 50 mm 60 mm 70 mm Bespoke |
Uniclass | |
CAWS | Q25/320 Tactile flags and slabs Q25/26 Natural stone slab paving systems Q25/310 Natural stone slabs |
Specification data - Natural stone paving slabs
Standard | To BS EN 1341. |
Stone denomination | |
Petrological family | Granite. |
Colour | Reddish pink. |
Origin | Portugal.Guidance for specification option: Quarry of origin: Monforte. |
Physical properties | |
Profile | |
Slab type | Regular plan form. |
Dimensions and associated tolerances | |
Nominal sizes | 200 x 100 x 50 mm.200 x 100 x 60 mm.200 x 100 x 70 mm.300 x 100 x 50 mm.300 x 100 x 60 mm.300 x 100 x 70 mm.300 x 150 x 50 mm.300 x 150 x 60 mm.300 x 150 x 70 mm.300 x 200 x 50 mm.300 x 200 x 60 mm.300 x 200 x 70 mm.450 x 450 x 50 mm.450 x 450 x 60 mm.450 x 450 x 70 mm.600 x 600 x 50 mm.600 x 600 x 60 mm.600 x 600 x 70 mm.900 x 450 x 50 mm.900 x 450 x 60 mm.900 x 450 x 70 mm.900 x 600 x 50 mm.900 x 600 x 60 mm.900 x 600 x 70 mm. |
Finish | Flamed. |
Performance requirements | |
Slip resistance | To BS 14231, 83 (dry); 67 (wet).Manufacturer guidancePTV. |
Breaking load | To EN 12372, 13.1 MPa.Guidance for specification option: Lev = 11.4 MPa. |
Water absorption (maximum) | To EN 13755, 0.2%.Guidance for specification option: Hev = 0.2%. |
Abrasion resistance | To EN 14157, 15 mm. Guidance for specification option: Hev = 15.5 mm. |
Durability | To EN 12371, 12.9/13.1 MPa. Manufacturer guidanceFreeze-thaw. |
Material density | To EN 1936, 2600 k.g./m³. |
Porosity | To EN 1936, 0.6%. Manufacturer guidanceOpen porosity. |
CompressiveStrength | To EN 1926, 196 MPa. Guidance for specification option: Lev = 153 MPa. |
Sustainability data
Country of material origin | Portugal |

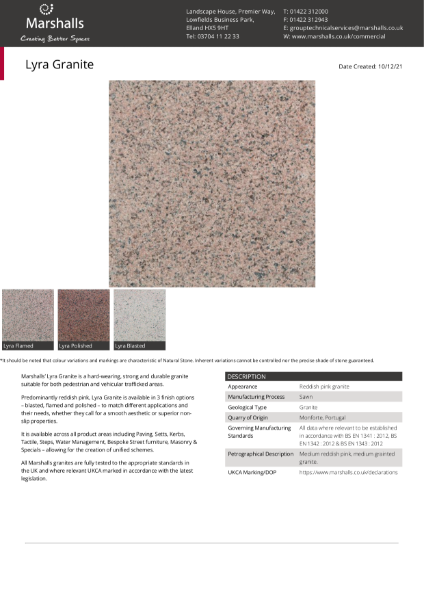

Literature
Lyra Granite
