Application

Suitable for residential applications, used as stairway access to attics and loft spaces.

Description

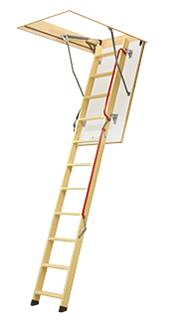

The LWL Lux loft ladder has been equipped with an additional handrail mounted onto the middle ladder section, the loft ladder also incorporates a special mechanism which assists ladder folding and unfolding by means of a gas spring.


Features and benefits:

  • The special mechanism of the hatch unloading mechanism makes it possible to eliminate the use of a locking latch.
  • The timber loft ladder is supplied with an insulated hatch using 3 mm of insulation, finished in white and with stile ends and two handrails.
  • The steps are finished protruding from the strings and the ladders can be supplied with various accessories.

General information

Color

White

Material

Wood

Timber

Shape

Rectangle

Size

580 x 1180 mm

Guidance for specification option:

Ceiling opening 600 x 1200 mm.

580 x 1280 mm

Guidance for specification option:

Ceiling opening 600 x 1300 mm.

680 x 1180 mm

Guidance for specification option:

Ceiling opening 700 x 1200 mm.

680 x 1280 mm

Guidance for specification option:

Ceiling opening 700 x 1300 mm.

680 x 1380 mm

Guidance for specification option:

Ceiling opening 700 x 1400 mm.

Warranty description

Three year

Uniclass

Pr_25_30_85_36 Hardwood loft laddersPrimary

CAWS

L30/41 Loft ladders

L30/421 Loft ladders

Specification data - Hardwood loft ladders

Format

Folding.

Strings

-

Floor to ceiling height (minimum)

2800 mm.

Handrails

Two.

Loft trap door

-

Minimum opening size (l x w)

580 x 1180 mm.

Guidance for specification option:

Ceiling opening 600 x 1200 mm.

580 x 1280 mm.

Guidance for specification option:

Ceiling opening 600 x 1300 mm.

680 x 1180 mm.

Guidance for specification option:

Ceiling opening 700 x 1200 mm.

680 x 1280 mm.

Guidance for specification option:

Ceiling opening 700 x 1300 mm.

680 x 1380 mm.

Guidance for specification option:

Ceiling opening 700 x 1400 mm.

Manufacturer guidance

/ Ladder box dimensions:

Operating mechanism

Gas spring (ladder); hatch unloading mechanism.

Other requirements

Not required.

Balustrade.

Slats.

Stile ends.

Upper hatch.

Thickness

36 mm.

Manufacturer guidance

(of loft hatch):

U-value

1.1 W/m²K.

Manufacturer guidance

(of loft hatch):

Finish/ Colour

White on both sides.

Manufacturer guidance

(of loft hatch):

Load (maximum)

160 kg.

Manufacturer guidance

(Maximum safe load of loft hatch):
