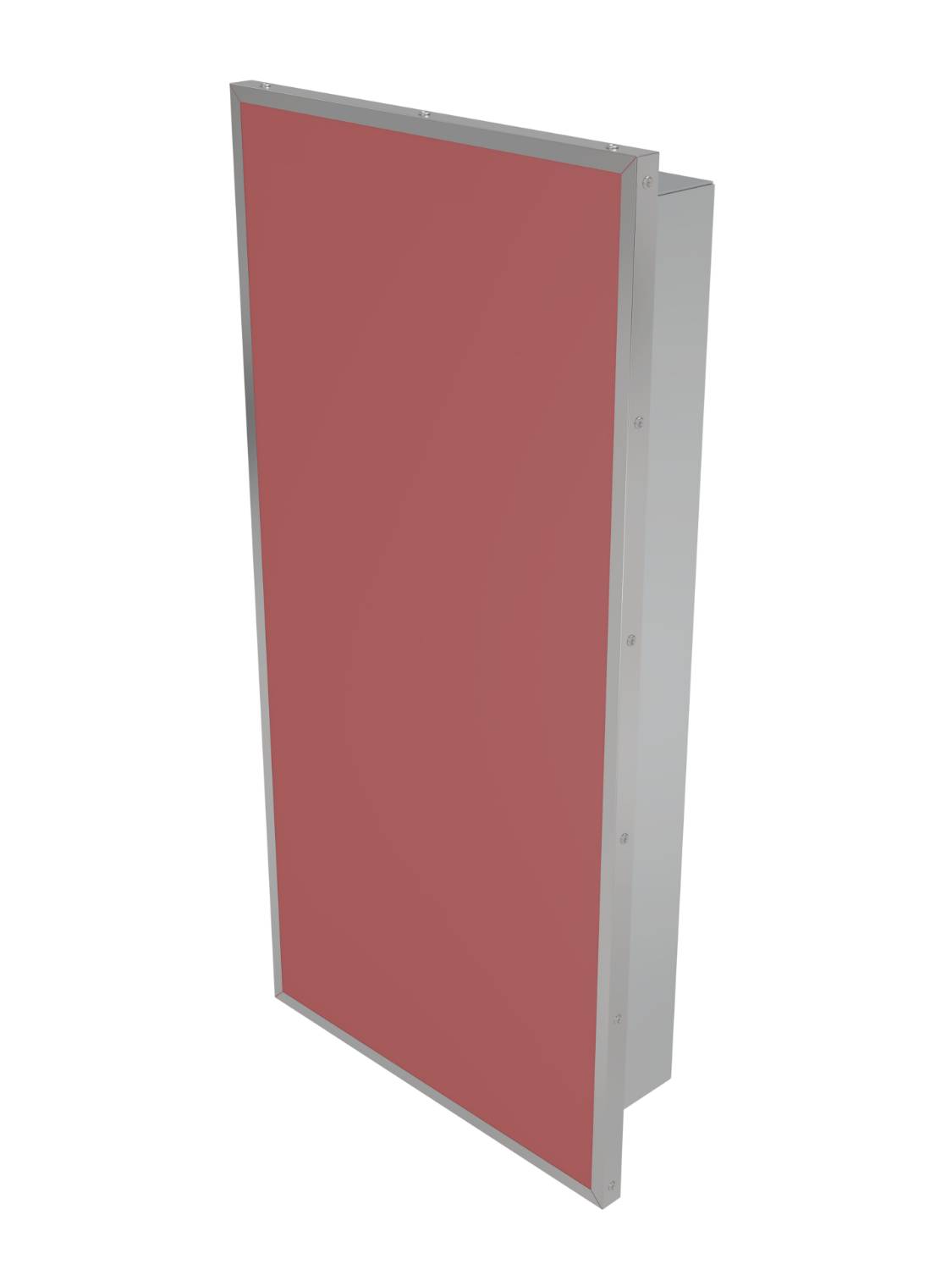

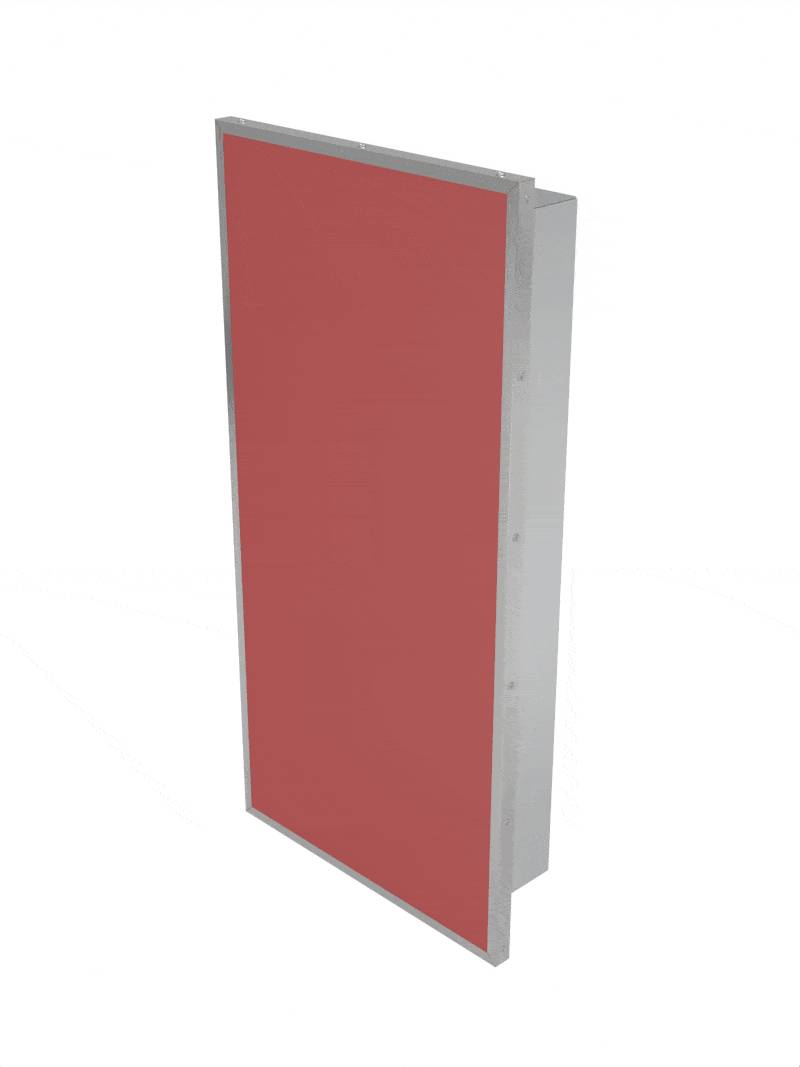

Luxe Clad A1® SS - Insulated Stepped Spandrel Panels - Insulated Spandrel Panels

Name: Luxe Clad A1® SS - Insulated Stepped Spandrel Panels - Insulated Spandrel Panels
Brand: Luxe Clad
SKU: 6zJTaY7VPXYh3VTY9QU1XW

Verified by manufacturer 11 days ago

Sparkling Collection

Luxe Clad

Product certifications:

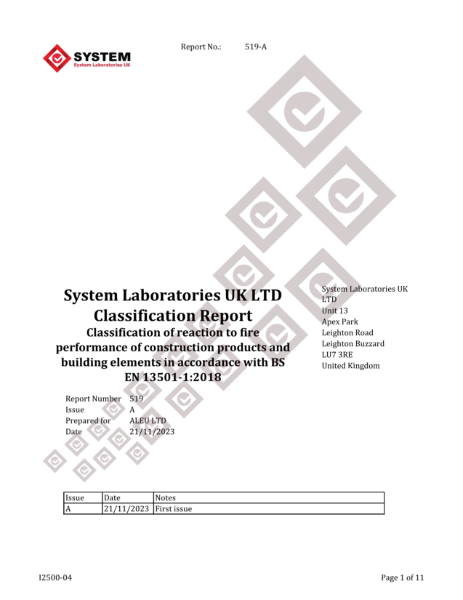

BS EN 13501-1
Certificate type
BS EN 13501-1
Certificate type
UL Certified
Certificate type

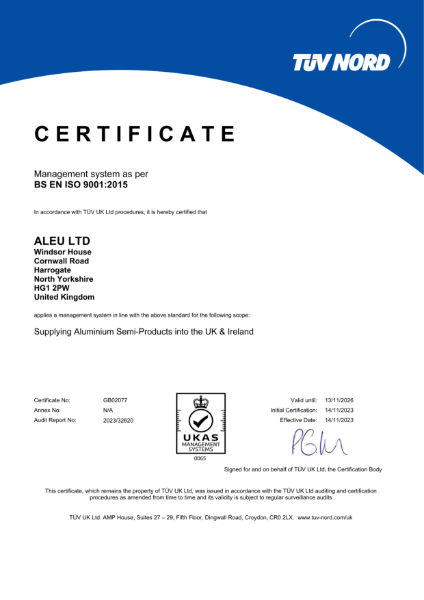

TUV NORD
Certificate type

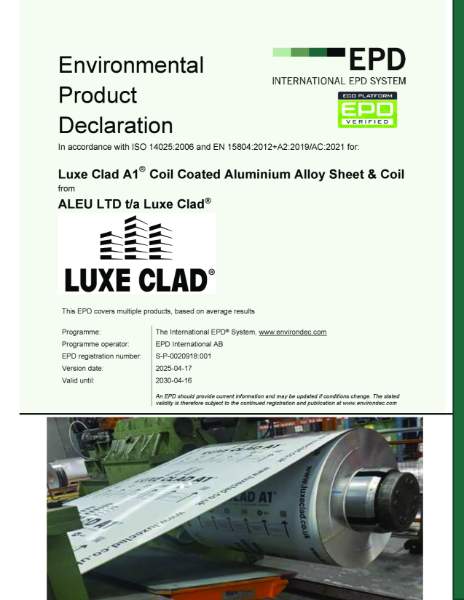

EPD
Certificate type
TUV NORD
Certificate type

Non-combustible, A1-rated, aluminium stepped spandrel panels with insulated core.

Jump to:

Request BIM

+44 (0)1423 611 100 Website

Application

Insulated spandrel panels.

All provided products are tested and certified in accordance with Approved Document B, Volume 2, for high-rise buildings.

Description

Non-combustible, A1-rated, aluminium stepped spandrel panels with insulated core. Internal and external skins are available in different thickness options.

Features and benefits:

Panels are cut and folded by air bending to form a four-sided tray/ cassette panel, with fixings installed through stainless steel cleats in the panel edges.
Offers a cost-effective and aesthetically pleasing facade solution.
Lightweight and rigid, easy to install.
Installation method: Either top-down or bottom-up.

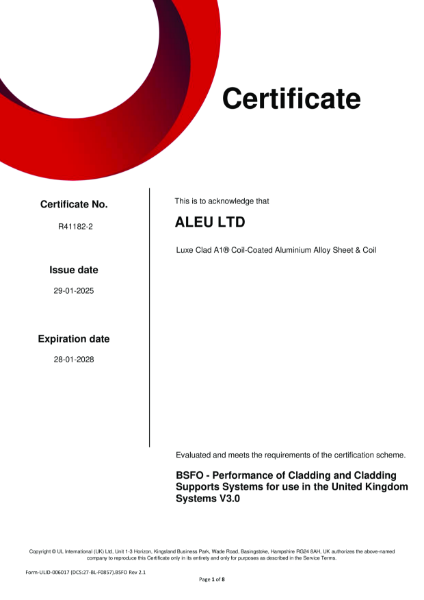

UL Enhanced Mark ‘Performance of Curtain Walling and Rainscreen Cladding Support Systems’ (R41182-2)
Non-combustible: A1 rated to BS EN 13501-1 with double sided, pre-finished panels.
Versatile: Can be custom designed into a wide range of shapes and thicknesses up to 156 mm (dependent on the specified thickness of the components).
Available in an extensive range of standard colours.
Finished with polyvinylidene difluoride (PVDF) KYNAR 500, HYLAR 5000 or fluoroethylene vinyl ether (FEVE) paints, known for their high durability, providing the optimum resistance to weather and industrial pollutants. They also provide customizable colour/ finish options.
Warranty available up to 40 years - consult manufacturer for details.
Also available in Eco Luxe® (near zero CO2 e) low carbon aluminium alloy (which are specified separately).

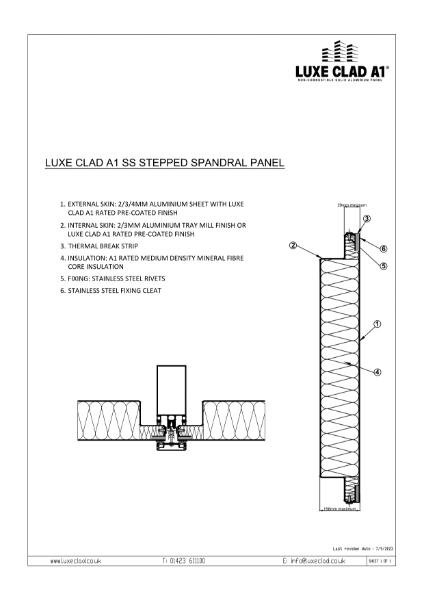

Panel components:

External skin: Aluminium sheet, with A1 pre-coated finish (to specified thickness).
Internal skin: Aluminium tray, mill finish or with A1 pre-coated finish (to specified thickness).
Thermal break strip.
Insulation: Mineral fibre core insulation (to specified thickness).
Fixings: Stainless steel.

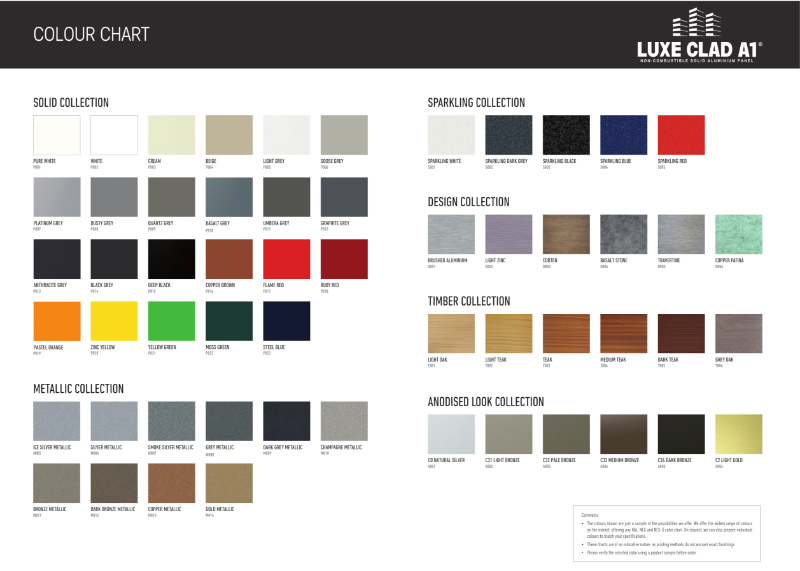

Multiple colour options are available, including:

Solid.
Metallic.
Sparkling.
Patina.
Corten.
Stone.
Brushed.
Wood.
Iridium.
Bespoke.

General information

Color	White Cream Beige Grey Black Brown Copper Red Orange Yellow Green Blue Silver Bronze Gold Turquoise Other Show more
Finish	PVdF Painted Powder-coated Metallic Anodized Other Show more
Material	Aluminium Mineral fibre
Shape	Rectangle Other
Length	2500 mm 3200 mm 4000 mm Bespoke
Width	1000 mm 1250 mm 1500 mm Bespoke
Height	2 mm Guidance for specification option: Internal/ external skin. 3 mm Guidance for specification option: Internal/ external skin. 4 mm Guidance for specification option: External skin. Manufacturer guidance Sheet thickness.
Warranty description	40 year Guidance for specification option: Warranty available up to 40 years - consult manufacturer for details.

Uniclass	Pr_25_71_42_08 Aluminium infill panelsPrimary Pr_25_71_14_02 Aluminium cassette panels
CAWS	H20/10 Sheet cladding H43/120 Metal insulating sandwich panel H43/10 Metal insulating sandwich panel H20/150 Sheet cladding (attached to metal support systems)

Specification data - Aluminium infill panels

Classification data
Alloy, temper and thickness	3000 series - 2 mm. Guidance for specification option: 5.51 kg/m². 3000 series - 3 mm. Guidance for specification option: 8.24 kg/m². 3000 series - 4 mm. Guidance for specification option: 10.92 kg/m². 5000 series - 2 mm. Guidance for specification option: 5.51 kg/m². 5000 series - 3 mm. Guidance for specification option: 8.24 kg/m². 5000 series - 4 mm. Guidance for specification option: 10.92 kg/m². Manufacturer guidance Internal skin.
Size (height x width)	2500 x 1000 mm. 2500 x 1250 mm. 2500 x 1500 mm. 3200 x 1000 mm. 3200 x 1250 mm. 3200 x 1500 mm. 4000 x 1000 mm. 4000 x 1250 mm. 4000 x 1500 mm. Bespoke. Guidance for specification option: Consult manufacturer for details. Manufacturer guidance Length x width.
Panel finish	PVDF KYNAR 500. HYLAR 5000. FEVE. Mill. Guidance for specification option: Internal skin only. Polyester powder-coated. Manufacturer guidance EN 1396/ AAMA 2605. Internal and external skin finishes need to be selected.
Colour	Sparkling White. Sparkling Dark Grey. Sparkling Black. Sparkling Blue. Sparkling Red. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidance Colours listed are only a sample of the possibilities available. Any RAL, NCS and NCS-S color chart can be used. On request, manufacturer can also prepare individual colours to match required specifications.
Reaction to fire	-
Panel external face	To BS EN 13501-1, Class A1.
Panel internal face	To BS EN 13501-1, Class A1.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	99.5%. Guidance for specification option: Up to 99.5% recycled content for aluminium sheet. These values could vary depending on where the material is sourced.
Fixings	Stainless steel, A2 grade.
Insulation	Rockwool RW - mineral fibre insulation (or equivalent, where applicable). Guidance for specification option: Insert required thickness. Thermal performance: 0.034 W/(m·K). Density: 60 kg/m³. Reaction to fire (to BS EN 13501-1): A1.
Sheathing board	RCM Multipurpose Board. Guidance for specification option: Thickness/ weight: 6 mm/ 8.28 kg/m². Panel size (l x w): 2400 x 1200 mm. Thermal performance: 0.012 W/(m·K). Density: 1380 kg/m³. Reaction to fire (to BS EN 13501-1): A1.
Outer skins	2 mm. 3 mm. 4 mm. Manufacturer guidance Thickness.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Aluminium Mineral fibre
Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Certified
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : 4.92 (kg CO₂ eq/kg) Declared unit : 4.92 Lower emissions
Recyclability	100% recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	99.5 % Guidance for specification option: Up to 99.5% recycled content for aluminium sheet. These values could vary depending on where the material is sourced.
Expected Life	50 year
