Lune Suspended Feature Lighting
Application

Suitable for residential or commercial interiors including office, hospitality, retail or as architectural feature lighting.

Description

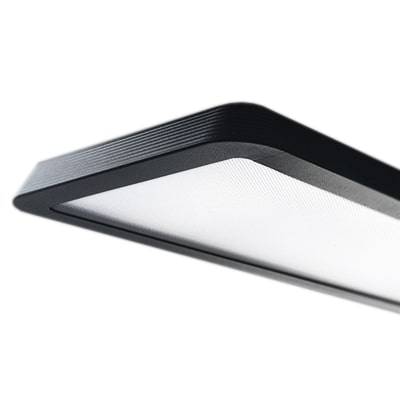

Rectangular suspended feature LED lighting with bevelled edges.


Features and benefits:

  • With two options of suspension cup, it can either appear to be effortlessly floating in space or firmly planted into a ceiling and making a bold presence.
  • The edge design makes the luminaire appear thinner, whilst adding a texture to an interior thanks to its bevelled surface.
  • Dual wire suspension kit can be fixed directly to ceiling or to recessed ceiling mount.
  • Available in a range of colours.
  • High level of visual comfort.

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Feature linear

Size

1330 x 183 mm

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Standards

Directive 2014/30/EC - EMC.

Directive 2006/95/EC - Low Voltage.

Regulation 1907/2006 - REACH.

Directive 2019/15/EC - Labelling.

Directive 2015/863/EC - RoHS.

Directive 2012/19/EC - WEEE.

Directive 2014/35/EU - making available on the market of electrical equipment.

Directive 2011/65/EU - hazardous substances.

Luminaire description

Suspended, large rectangular, linear.

Classification

-

Electric shock

To BS EN 60598-1, Class I.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Loop wiring.

Nominal voltage

220–240 V.

Luminaire power factor

0.95.

LED luminaires

-

Initial LED luminaire efficacy (minimum)

116 lm/W.

Wattage

Direct/ Indirect 50.8 W/ 5870 lm.

Colour temperature

3000K.

4000K.

Colour rendering index (Ra)

80.

Beam angle

180°.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Non-dimming.

Standard.

Integral sensors

Philips EasyAir.

PIR/ Daylight.

Helvar active plus.

Micro standalone sensor.

Accessories

Not required.

Suspension kit, 2000 mm.

Product Reference

Lune Suspended

Control gear position

Integral within luminaire.

Optics

Microprismatic Diffuser.

Opal Diffuser.

Colour

Black.

Silver.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<19.7.

Longitudinal

<19.7.

Efficiency

96%.

Frequency

50–60 Hz.

Direct/ Indirect upward light output ratio (ULOR)

60%.

Direct/ Indirect downward light output ratio (DLOR)

40%.

Output direction

Direct/ indirect.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
