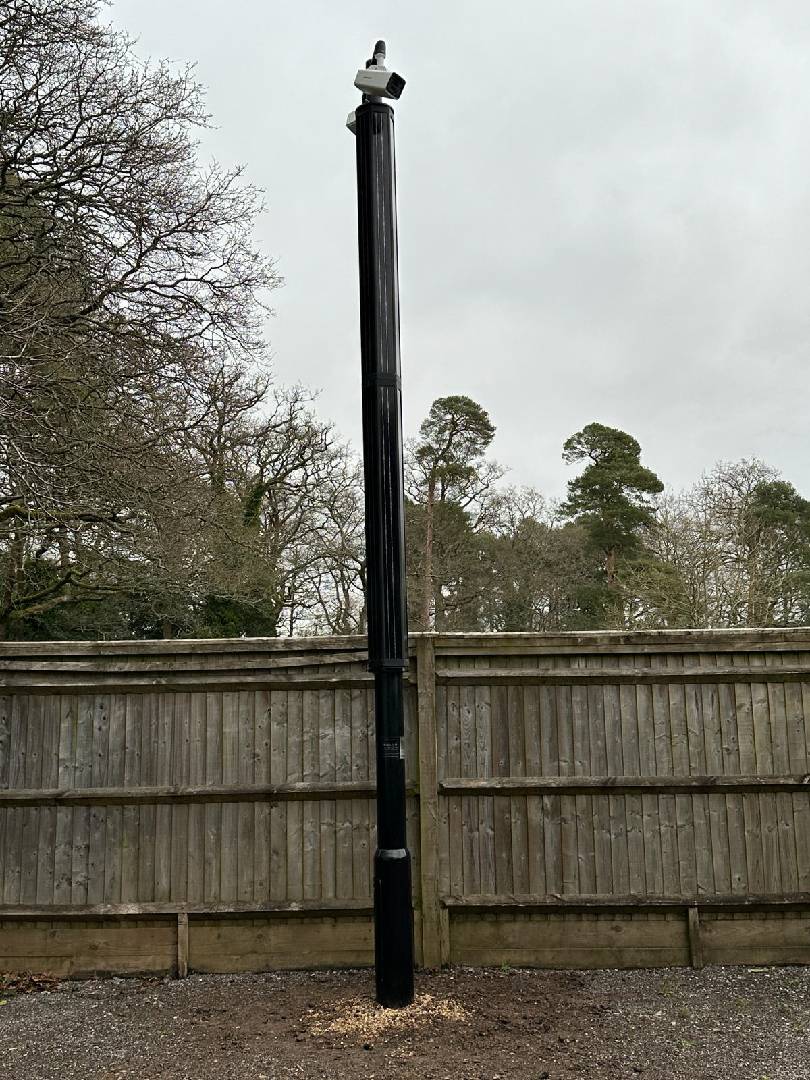

LUNAR - Solar CCTV

Verified by manufacturer 5 months ago

SolarVision Lighting Technologies Third party certifications:
  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • Acclaim Accreditation

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Corporate Group Member

    Certificate type

8MP High Res. Remote Access 4G. IP67 Rated. Solar powered CCTV column.

Jump to:
+44 01923 726150 Website

Application

Suitable for residential and commercial use.

Description

Solar CCTV column offers the ability to quickly and simply install CCTV or replace obsolete ones. This is achievable with the latest generation HIKvision fixed bullet camera powered by solar energy.

​

Hikvision ColorVu technology provides 24/7 vivid colourful images with F1.0 advanced lenses and high performance sensors. F1.0 super-aperture collects more light to produce brighter images.


Features and benefits:

  • 100% solar solution, completely independent and off the grid.
  • 4G wireless network transmission, support Micro SIM card.
  • High quality imaging with 8 MP at 15 fps resolution.
  • Focus on human and vehicle targets classification based on deep learning.
  • Built-in 64 GB eMMC storage.
  • Camera is water and dust resistant (IP67).

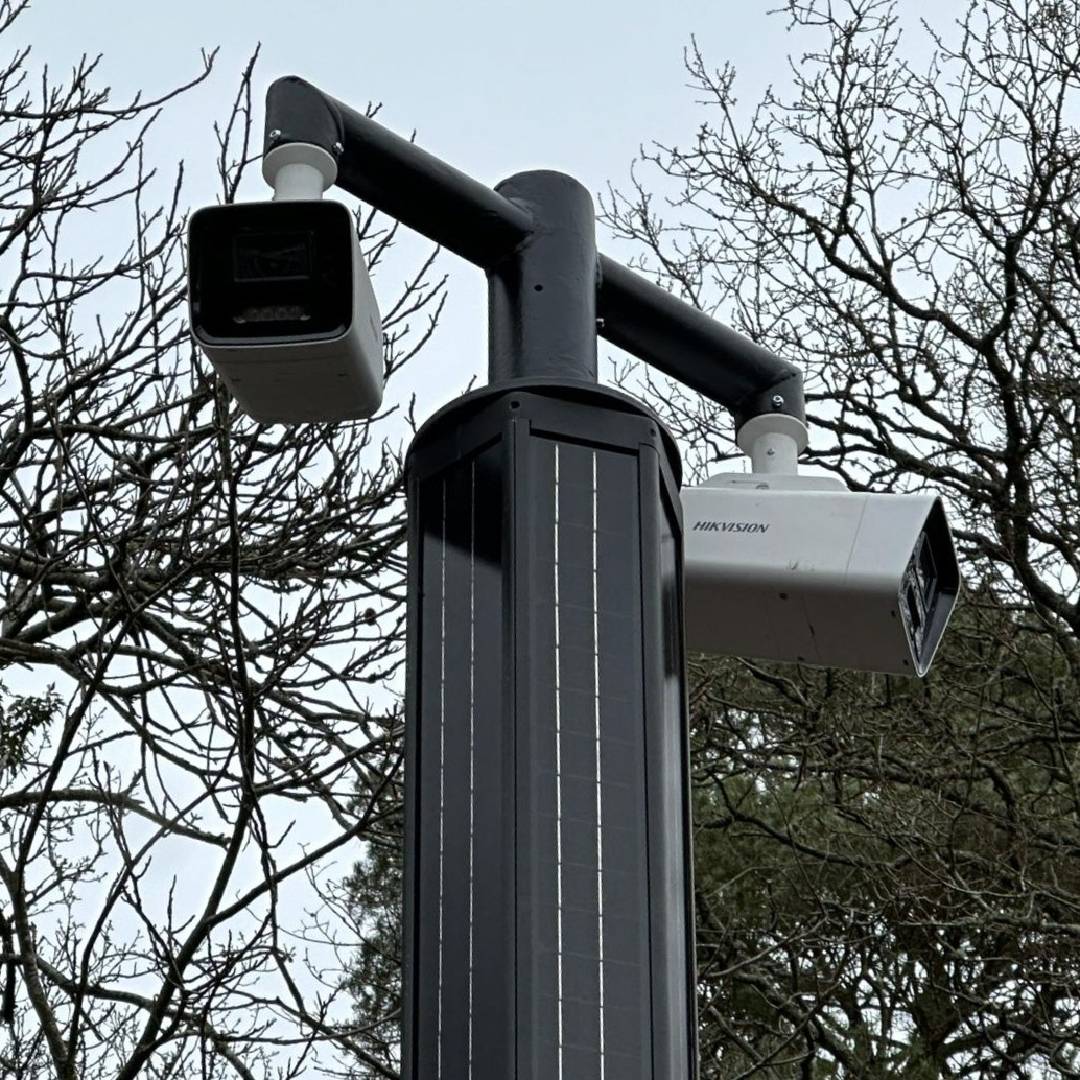

  • Option for a single-headed or double-headed camera installation.
  • Height: 5–10 m.
  • Quality: 24/7 colourful.
  • Technology: 120 dB True WDR.
  • Comms: 4G wireless <256 GB.
  • Hot-dip galvanized steel column with a painted finish and IP67 waterproof grade, it can be used in various severe environments.

General information

Color

Grey

Black

Finish

Painted

Material

Steel

Shape

Other

Length

Bespoke

Width

Bespoke

Height

5000 mm

Guidance for specification option:

Minimum.

10000 mm

Guidance for specification option:

Maximum.

Warranty description

Three year

Uniclass

Pr_60_75_86_09 Internet protocol (IP) bullet camerasPrimary

CAWS

W90/170 Surveillance CCTV systems

W90/170 Closed-circuit television (CCTV) system

Product range

Solar CCTV Columns

Specification data - Internet protocol (IP) bullet cameras

Image sensor

1/1.2-inch progressive scan CMOS.

Video system

PAL.

Spectrum

Colour.

Resolution (minimum)

3840 x 2160 (maximum).

Minimum illumination

Colour 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light.

Camera functions

-

Focus

Manual.

Guidance for specification option:

Fixed focal lens, 2.8 and 4 mm optional.

Shutter

1/100000 s.

White balance control

Automatic.

Wide dynamic range

Automatic.

Lens

-

Format

Fixed focal length.

Iris

Fixed.

Focal length

2.8–4 mm.

Guidance for specification option:

  • 2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124°.
  • 4 mm, horizontal FOV: 88.2°, vertical FOV: 48.7°, diagonal FOV: 101.8°.

Aperture range

F1.0.

Angle of view

124°.

Guidance for specification option:

Per camera. Columns fitted with dual cam heads will have a 248° view.

Video motion detection

Included.

Power supply

12 V d.c.

Network connectivity

Wireless 4G.

Network protocols

Open network video interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP.

Video compression formats

H.265.

Guidance for specification option:

Main stream: H.265 / Sub-stream: H.265/MJPEG.

*Full power mode: main stream supports H.265+.

Video streaming

IOT card (unlimited contract).

Integral memory storage (minimum)

256 GB.

Manufacturer guidance

Memory card slot, supports microSD card up to 256 GB. Insert requirements.

Alarm inputs

Motion detection and video tampering alarm.

Alarm outputs

Notify surveillance centre, send email and trigger recording.

Camera housing

-

Ingress protection (minimum)

IP67.

Accessories

Not required.

MicroSIM.

MicroSD card (up to 256 GB).

Battery

Lithium Iron Phosphate - LiFeP04 (2000 cycles).

Guidance for specification option:

  • Battery lifetime: >4000 cycles DOD 50% or >2000 cycles at 100% DOD.
  • Charge time: thee hours.

Solar system

Q100.

Guidance for specification option:

  • Structure: aluminium alloy.
  • Dimensions: 228 x 200 x 1160 mm.
  • Pmax: 100 wp x2.
  • Vmp 36 V.
  • Solar cell efficieny: 21.20%.

Q140.

Guidance for specification option:

  • Structure: aluminium alloy.
  • Dimensions: 228 x 200 x 1560 mm.
  • Pmax: 140 wp x2.
  • Vmp 36 V.
  • Solar cell efficieny: 21.20%.

Q200.

Guidance for specification option:

  • Structure: aluminium alloy.
  • Dimensions: 228 x 200 x 2065 mm.
  • Pmax: 200 wp x2.
  • Vmp 36 V.
  • Solar cell efficieny: 21.20%.

Controller

Programmable MPPT controller.

Guidance for specification option:

  • Charge mode: MPPT.
  • System voltage: 12 V.
  • Efficiency: >98%.
  • Setting method: remote control.
  • Installation method: built-in.
  • IP rating: IP68.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

Recyclability

Steel columns, components in the battery and the PV wrap are all recyclable as they can be broken down into their original materials such as steel, glass, aluminum, silicon, zinc, manganese, potassium, cobalt, nickel and lithium

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Expected Life

25 year
