Ludlow Monobloc Traditional Kitchen Mixer Tap
Application

Traditional kitchen mixer tap.

Description

Victorian inspired design. It combines age old values with modern engineering technology to offer effortless quarter turn control of both temperature and flow. Available in 3 different finishes with all featuring the timeless white lever handle design.


Features and Benefits:

  • Metal & acrylic handle construction.
  • Custom designed for lower to mid pressures.
  • Elegant retro design form.
  • Quarter turn handle action for precise flow control.
  • Antisplash spout supplied as standard

General information

Color

Silver

Ludlow Monobloc - Chrome.

Grey

Ludlow Monobloc - Brushed Nickel.

Gold

Ludlow Monobloc - Antique Brass.

Finish

Chrome

Ludlow Monobloc - Chrome.

Brushed

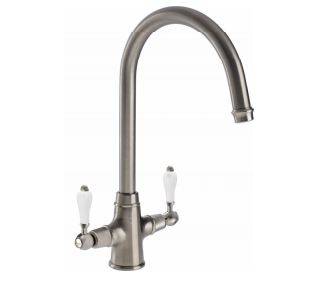

Ludlow Monobloc - Brushed Nickel.

Antique

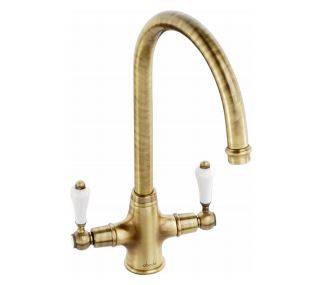

Ludlow Monobloc - Antique Brass.

Material

Brass

Size

49 x 355 x 190 mm

Base width x overall height x depth (reach).


Exit height: 225 mm.

Recommended hole diameter: Ø 35 mm.

Max. surface depth: 25 mm.

Spout diameter: 22 mm.

Spout aerator size: 22f.

WarrantyDescription

Five year

Materials and workmanship defects and valves and working parts warranted for five years.

Surface warranty defects and O-rings, hoses & gaskets warranted for one year.

Uniclass 2015

Pr_40_20_87_84 Sink taps

Primary

CAWS

N11/350 Sinks, taps, traps and wastes

Specification data - Sink taps Enhanced data

Approval

Water Regulations Advisory Scheme (WRAS) approved.

Form

Mixer taps.

Materials

-

Body

Brass.

Finish and colour

Chrome plated.

Brushed nickel.

Antique brass.

Flow rate (maximum)

16.63 L/min at 3 bar.

Water supply temperature (maximum)

User controlled.

Product Reference

Ludlow Monobloc - Chrome

Ludlow Monobloc - Brushed Nickel

Ludlow Monobloc - Antique Brass

Water pressure

0.30 - 5.50 bar.

Minimum - maximum.

Non-return valve

Not required.

ConnectionType

Locking collar.

InletConnectionSize

15 mm Ø.

Tail pipe inlet / outlet size: M12 / 15mm Ø.

Type/ pipe diameter

Copper rigid tube.

Length

245 mm.

Weight

1.49 kg.

Tap only weight.
