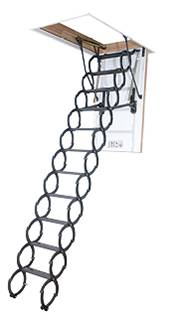

LST Loft Ladder
Verified by manufacturer 2 months ago
Scissor-action, metal loft ladder with insulated loft hatch.
Application
Suitable for residential applications, used as stairway access to attics and loft spaces.
Description
Scissor-action, metal loft ladder with insulated loft hatch.
Features and benefits:
- The scissor-action enables the ladder to be fitted in smaller openings than conventional folding ladders.
- The LST scissors loft ladder is equipped with a 36 mm thick, white insulated hatch as standard.
- The box is made of wood and has quick-fit brackets while the hatch opening mechanism guarantees safe folding and unfolding.
- In addition, its construction has eliminated the need for a lock.
- The ladder itself is powder-coated in RAL 7022 Grey.
- The overall floor – ceiling ladder height can be increased to a maximum of 3300 mm by adding two LSS treads.
General information
Color | White Grey |
Finish | Powder-coated |
Material | Aluminium Metal Wood Timber |
Shape | Rectangle |
Size | 500 x 786 mm Guidance for specification option: Ceiling opening: 500 x 800 mm. 580 x 886 mm Guidance for specification option: Ceiling opening: 600 x 900 mm. 580 x 1186 mm Guidance for specification option: Ceiling opening: 600 x 1200 mm. 680 x 786 mm Guidance for specification option: Ceiling opening: 700 x 800 mm. 680 x 1186 mm Guidance for specification option: Ceiling opening: 700 x 1200 mm. |
Warranty description | Three year |
Uniclass | |
CAWS | L30/41 Loft ladders L30/421 Loft ladders |
Specification data - Aluminium loft ladders
Standard | To BS EN 14975. |
Format | Folding. |
Finish | Powder-coated in RAL 7022 Grey. |
Strings | |
Number of sections | Guidance for specification option: Scissor ladder construction (folding/ unfolding segmented sections). |
Floor to ceiling height (minimum) | 2300 mm.Guidance for specification option: Height can be increased to a maximum of 3300 mm by adding two LSS treads. |
Handrails | None. |
Treads | Not required.Required. |
Loft trap door | |
Minimum opening size (length x width) | 500 x 786 mm.Guidance for specification option: Ceiling opening: 500 x 800 mm. 580 x 886 mm.Guidance for specification option: Ceiling opening: 600 x 900 mm. 580 x 1186 mm.Guidance for specification option: Ceiling opening: 600 x 1200 mm. 680 x 786 mm.Guidance for specification option: Ceiling opening: 700 x 800 mm. 680 x 1186 mm.Guidance for specification option: Ceiling opening: 700 x 1200 mm. Manufacturer guidance/ Ladder box dimensions: |
Construction | Scissor ladder construction. |
Operating mechanism | Scissor operated.Guidance for specification option: Hatch unloading (hinge) mechanism. |
Dimensions | Guidance for specification option: Ladder height (maximum): 3.3 m. Additional feet required to get from 3.2 to 3.3 m. Please advise. |
U-value | 1.1 W/m²K. Manufacturer guidance(of loft hatch): |
Load (maximum) | 200 kg. Manufacturer guidance/ Maximum safe loading of loft hatch: |
