LST I Plus Xtra Protection

Stelrad Radiators

Low surface temperature (LST) radiator finished with antibacterial paint. Includes a Danfoss RAS-D Remote Sensor. Available in variants to suit most applications.

Jump to:
+44 (0)844 543 6200 www.stelrad.com
Description

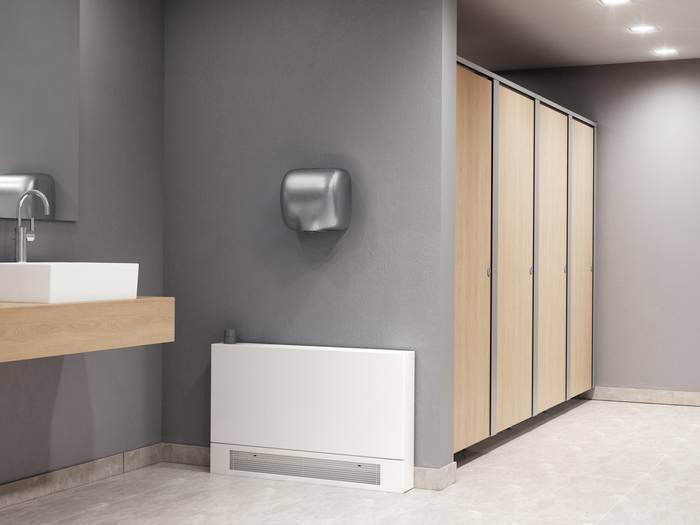

Low surface temperature (LST) radiator which meets NHS guidance for ‘safe hot water and surface temperature’ and is finished in antibacterial paint. It can be installed in domestic, commercial and public buildings’ running heating systems with total public safety assured.

It includes a Danfoss RAS-D Remote Sensor, designed specifically for commercial heating systems and can be pre-set to allow adjustment of room temperatures between 5–26°C.

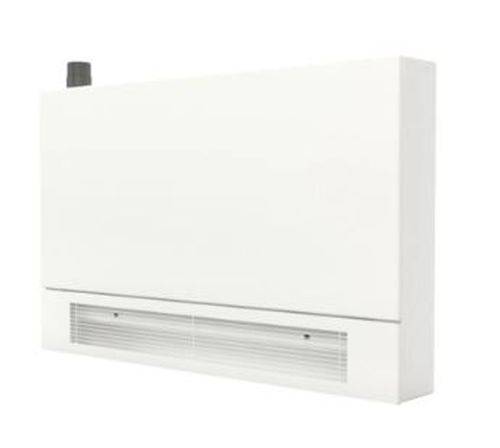

It has an attractive, flat panel outer casing, which is totally reversible to allow piping flexibility. Simple and quick to install, the casing is held by security fittings with a unique seam fixing bracket system to prevent unauthorized access to the emitter accommodated inside. The emitter itself provides high outputs through convection for good heating performance.

Features and benefits:

  • Performs to a maximum working pressure of 145 psi (10 bar).
  • Conforms to BS EN 442.
  • Available in a range of 16 sizes.
  • White (RAL 9016) in colour.
  • Five-year manufacturer’s warranty on casing and 10-year warranty on emitter.

General information
Uniclass 2015
Radiators (Pr_70_60_36_73)Primary
Specification data - Radiators
Product Reference

LST I Plus Xtra Protection

Controls location

Left hand side

Right hand side

Standard product features

Style:

K2.

Colour:

White (RAL 9016).

Heat output:

478–2767 W/ 669–9441 Btu/hr dependent on size and style, consult manufacturer's literature for information.

Emitter size:

Dependent on size and style, consult manufacturer's literature for information.

Connections:

½” inlet connections as standard.

Pressures:

  • Working pressure: 10 bar.
  • Operating pressure: 13.5 bar.

Technical characteristics:

Dependent on size and style, consult manufacturer's literature for information.
