LP - Windposts

Name: LP - Windposts
Brand: IG Masonry Support Ltd
SKU: rEJuFPqArdbRyabsChescw

Verified by manufacturer 4 months ago

IG Masonry Support Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type
BRE Certificate
Certificate type

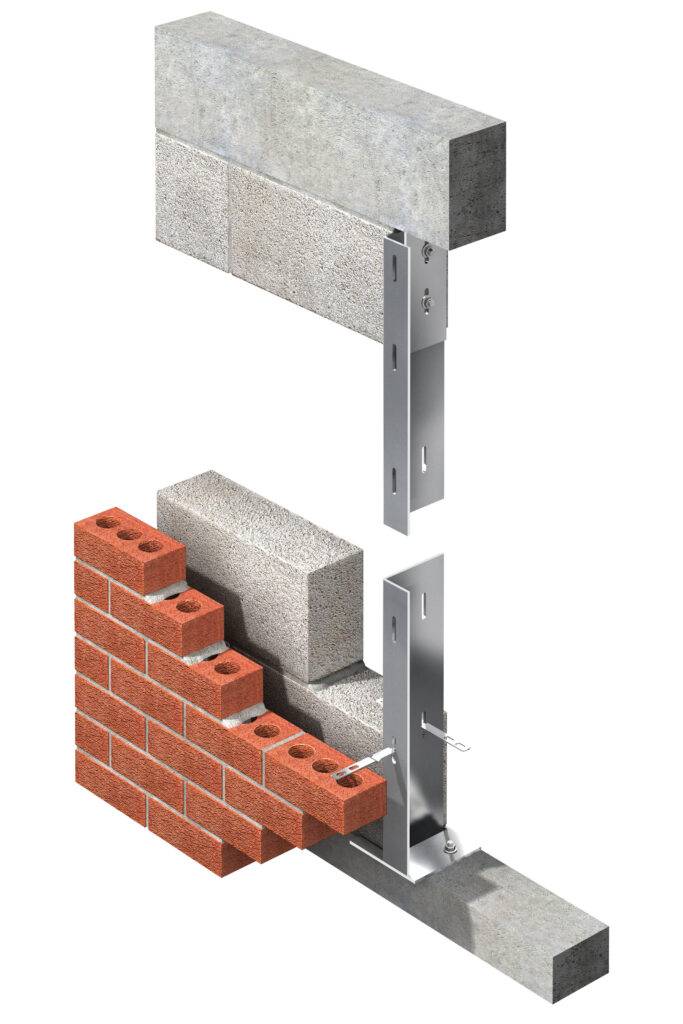

"L" shaped section wind post.

Jump to:

+44 (0)1283 200 157 Website

Application

Designed to suit a range of loading conditions and is built into the inner skin of the cavity wall.

Description

An "L" shaped section wind post supplied with a complete package of connections and wall ties including specifically designed base and upper connections and fixings. They are also supplied with a suitable number of wall-ties which will vary in relation to the post type used and the cavity width.

Features and benefits:

It is installed within the cavity and normally spans between floor structures
Available in shorter lengths for parapets or below windows
Quick and easy installation

General information

Color	Silver
Finish	Stainless steel
Material	Stainless steel
Shape	Other
Length	Bespoke
Width	70 mm Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_20_85_16_96 Wind postsPrimary
CAWS	F30/255 Wind posts

Specification data - Wind posts

Material	Stainless steel, grade 304.
Configuration type	Within cavity.
Section	Channel.
Sizes	-
Section	-
Channel (d x w x t)	125 x 70 x 4 mm. 125 x 70 x 5 mm. 125 x 70 x 6 mm. 150 x 70 x 4 mm. 150 x 70 x 5 mm. 150 x 70 x 6 mm. 170 x 70 x 4 mm. 170 x 70 x 5 mm. 170 x 70 x 6 mm. 200 x 70 x 4 mm. 200 x 70 x 5 mm. 200 x 70 x 6 mm.

Sustainability data

Contains Red List materials	No
Material	Stainless steel
Recyclability	100% recyclable
Recycled content As defined in clause 7.8 of BS EN ISO 14021	85 %
Expected Life	120 year
