Low Thermal Conductivity Wall Ties - Helical Cavity Tie

Name: Low Thermal Conductivity Wall Ties - Helical Cavity Tie
Brand: Vista Engineering Ltd
SKU: 5AssgGGC4GqDssGdKZ8ME

Verified by manufacturer 2 months ago

NEUTRAS 1

Vista Engineering Ltd

Third party certifications:

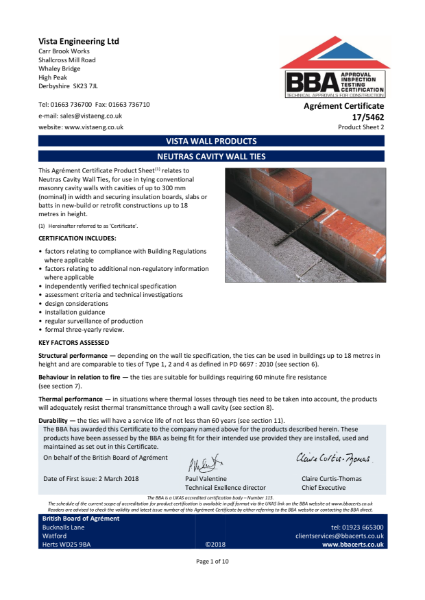

BBA Agrément Certificate
Certificate type

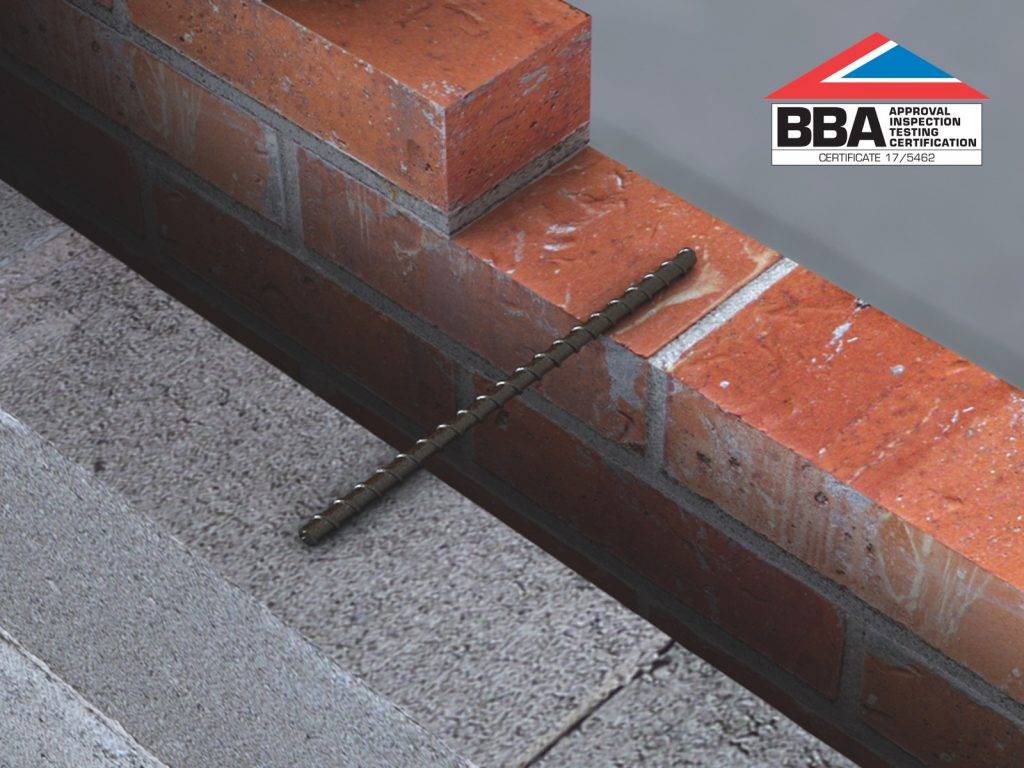

For securing two leaves of a cavity wall to each other, allowing them to act as one structurally.

Jump to:

+44 (0)1663 736700 Website

Application

Light-duty wall ties (type 4) are suitable for use in domestic dwellings. Suitable for buildings with a maximum height of 10 m and cavity widths of 50–150 mm.
General-purpose wall ties (type 2) are suitable for use in small commercial buildings and domestic dwellings. Suitable for buildings with a maximum height of 15 m and cavity widths of 50–125 and 125–150 mm.
Heavy-duty wall ties (type 1) are suitable for most buildings in the UK of any height, with cavities up to 150 mm.

Description

For securing two leaves of a cavity wall to each other, allowing them to act as one structurally.

Features and benefits:

Will adequately resist thermal transmittance.
Constant drip feature to prevent moisture travelling across the cavity.
Available with a dedicated clip to secure insulation (usually in sheet form) within the cavity.
Tested as Type B (sound).
Tested Types 4, 2, & 1 to BS EN 845-1.
BBA certified 17/5462.

General information

Color	Black
Material	Fibre Guidance for specification option: Basalt.
Length	200 mm 225 mm 250 mm 275 mm 300 mm Guidance for specification option: NEUTRAS 4 or 2. 325 mm Guidance for specification option: NEUTRAS 2 only. 350 mm Guidance for specification option: NEUTRAS 2 only. 375 mm Guidance for specification option: NEUTRAS 2 only. 400 mm Guidance for specification option: NEUTRAS 2 only. 425 mm Guidance for specification option: NEUTRAS 2 only. Show more

Uniclass	Pr_20_85_84_19 Cavity wall tiesPrimary
CAWS	F30/25 Cavity wall ties used with partial fill insulation F30/215 Cavity wall ties used with partial fill insulation F30/220 Wall ties F30/26 Wall ties F30/24 Cavity wall ties F30/214 Cavity wall ties

Specification data - Cavity wall ties

Standard	To BS EN 845-1.
Tie type	PD 6697 Type 1 (Masonry – heavy duty). Guidance for specification option: Neutras ties will adequately resist thermal transmittance through a cavity wall. Constant drip feature to prevent moisture travelling across cavity.
Material	Basalt fibre composite. Guidance for specification option: High specific tensile strength, 4–6 times higher than stainless steel. Excellent corrosion resistance (never rusts). Low thermal conductivity of 0.65 W/m·K, which is 15–20 times lower than stainless steel. High compressive strength compared to conventional FRP materials. Non-magnetic and electrically non-conductive.
Length	200 mm. Guidance for specification option: Cavity: 0–75 mm. Supplied in packs of 250. 225 mm. Guidance for specification option: Cavity: 76–100 mm. Supplied in packs of 250. 250 mm. Guidance for specification option: Cavity: 101–125 mm. Supplied in packs of 250. 275 mm. Guidance for specification option: Cavity: 126–150 mm. Supplied in packs of 250.
End types	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details.
Design embedment length (minimum)	Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. See also Length guidance.
Movement	Manufacturer's standard.
Additional requirements	-
Mortar joint thickness (minimum)	Guidance for specification option: Consult manufacturer for details and insert requirements.
Resistance to water crossing cavity	Resistant (constant drip feature). Guidance for specification option: Spiral configuration; no need for additional drip rings.
Slope tolerance	Manufacturer's standard.
Compressive load capacity	Manufacturer's standard. Guidance for specification option: Dependent on length specified; consult manufacturer's Declaration of Performance (DoP) literature for details.
Tensile load capacity	Manufacturer's standard. Guidance for specification option: Dependent on length specified; consult manufacturer's Declaration of Performance (DoP) literature for details.
Dynamic stiffness	Type B.

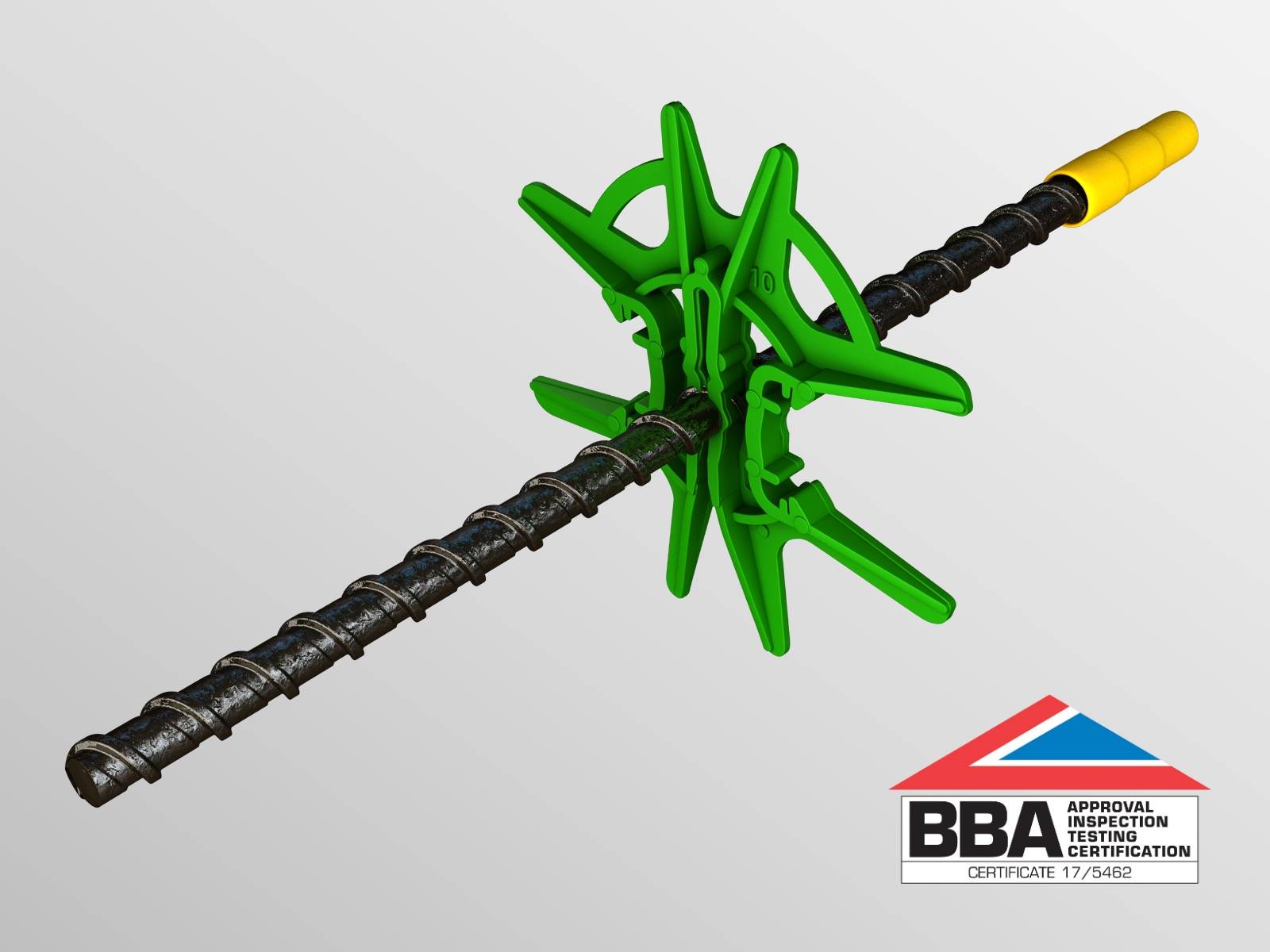

Tie-mounted insulation retaining clips	ECO-clips. Guidance for specification option: Universal 80 mm-diameter insulation clip made using less plastic for reduced environmental impact. Supplied in bags of 250 or 50. Not required.
