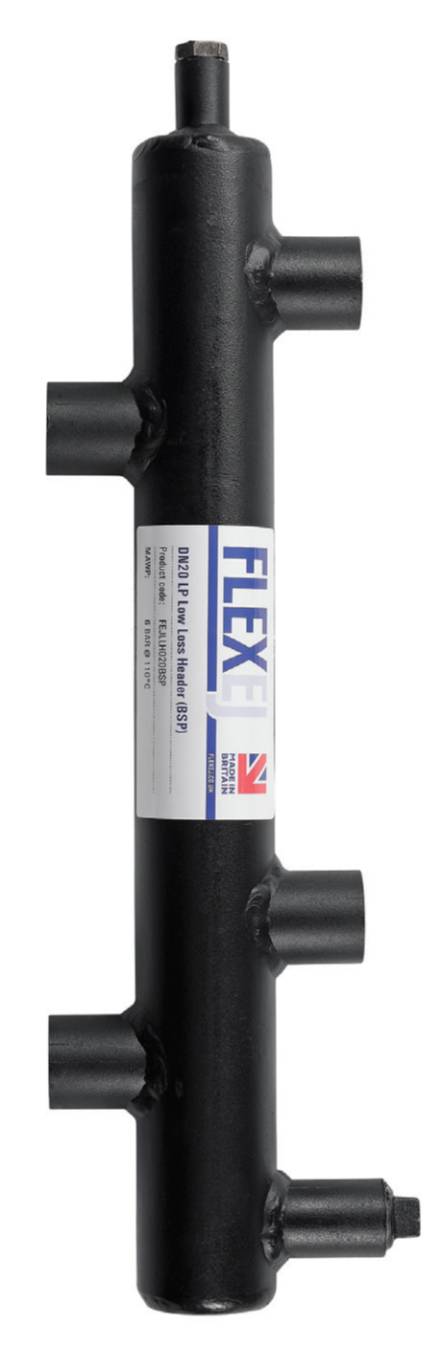

Low Loss Header / Hydraulic Separator
Verified by manufacturer 6 months ago
Low Power - BSP - FEJLLH020BSP - DN20 (¾″)
Low Power - BSP - FEJLLH020BSP - DN20 (¾″)
A range of low loss headers for heating systems.
Application
HVAC water applications - HTHW, LTHW, heating water, chilled water, boiler arrays.
Description
FlexEJ’s range of low loss headers, also known as hydraulic separators, covers sizes from DN20/30 kW up to DN150/1480 kW.
A low loss header decouples the boiler from the system. This allows the boilers/ boiler circuit flow to optimize at the best efficiency for any system conditions.
Features and benefits:
- Robust and cost effective units.
- Manufactured in the UK.
Recommended accessories:

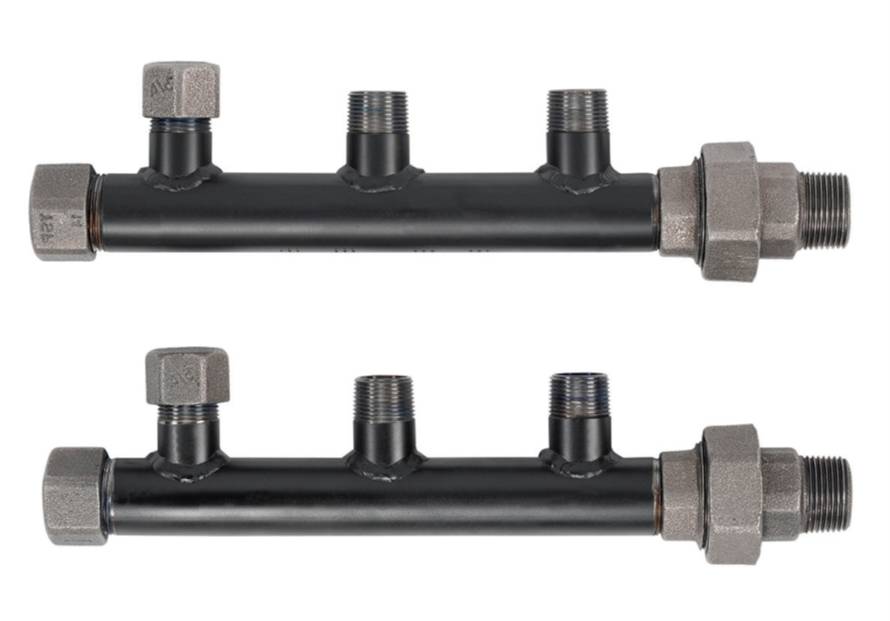

Valve kit, manifold kit, compression fittings kit, insulation jacket.
General information
Color | Black |
Finish | Painted |
Material | Carbon steel |
Shape | Other |
Length | 288 mm 350 mm 391 mm 437 mm 452 mm |
Width | 112 mm 136 mm 250 mm 270 mm 300 mm |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | T90/110 Heating system T90/110 Heating system |
Specification data - Steel pipe fittings
Body | DN40. |
Size | DN20 (¾″). |
Flowrate | 1.3 m³/h. |
Power | 30 kW. |
Connection | BSPP female. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Literature
Product Data Sheet - Low Loss Headers - High Power
Product Data Sheet - Low Loss Headers - Low Power
Product Data Sheet - Low Loss Headers - Low Power Manifolds
