Louvex® Architectural Screening, Privacy, Louvre Screen
Verified by manufacturer 1 month ago
Privacy and security screen fencing.
Application
Privacy and security fencing applications.
Description

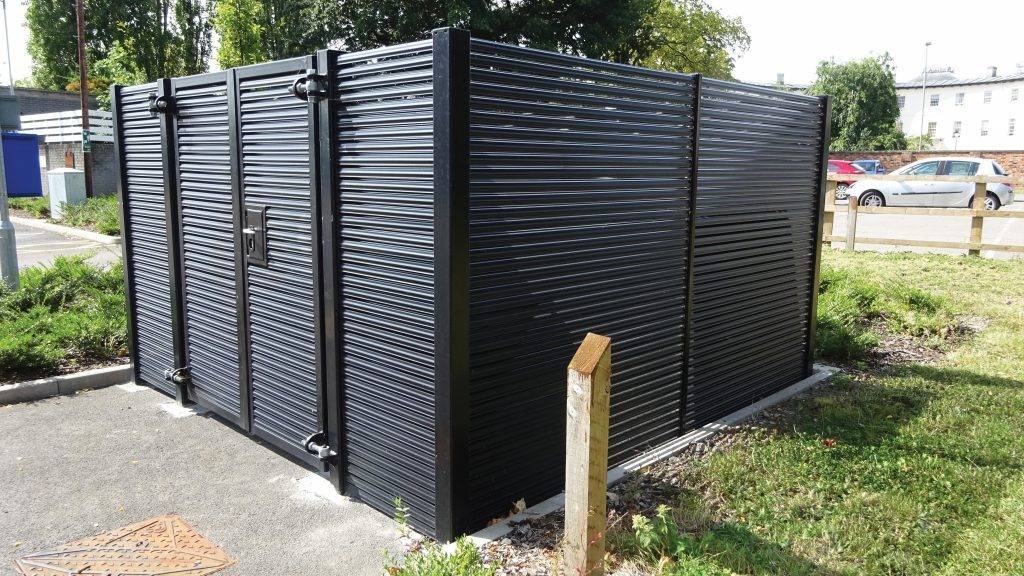

IAE Louvex® fencing is a strong, stylish and modern architectural screen fencing system. Panels are made from mild steel and forge welded at every intersection in accordance with BS 4592-1.
Features and benefits:
- A choice of visibility is available at 100% screen (zero visibility), or 80% screen (allowing 20% visibility).
- Supplied as two meter wide panels that can be stacked in a modular fashion to achieve a range of heights.
- Can be installed with vertical or horizontal louvres.
- Laser cut and robotically welded using modern folding and bending machines.
General information
Color | Black Silver Beige Blue Green |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H31/120 Metal H31/10 Metal Q40/30 Proprietary fencing L10/54 Louvres L10/60 Security Q40/430 Proprietary fencing L10/690 Security L10/650 Metal louvres |
Specification data - Louvre screen systems
Screen framing | Mild steel louvre frames. |
Louvres | |
Type | Mild steel 100% screen.Mild steel 80% screen.Guidance for specification option: 20% visibility. |
Operation | Fixed. |
System accessories | Not required.IAE Louvex HD 3 mm thick heavy duty corrugated louvres.Vertical louvres.Horizontal louvres. |
Posts | Mild steel. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/unit |
Recyclability | 100 |
