Lot Bollard - Fixed and Removeable Bollards
Verified by manufacturer 3 days ago
SL100 - 60 mm, anchored below the ground
SL100 - 60 mm, anchored below the ground
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

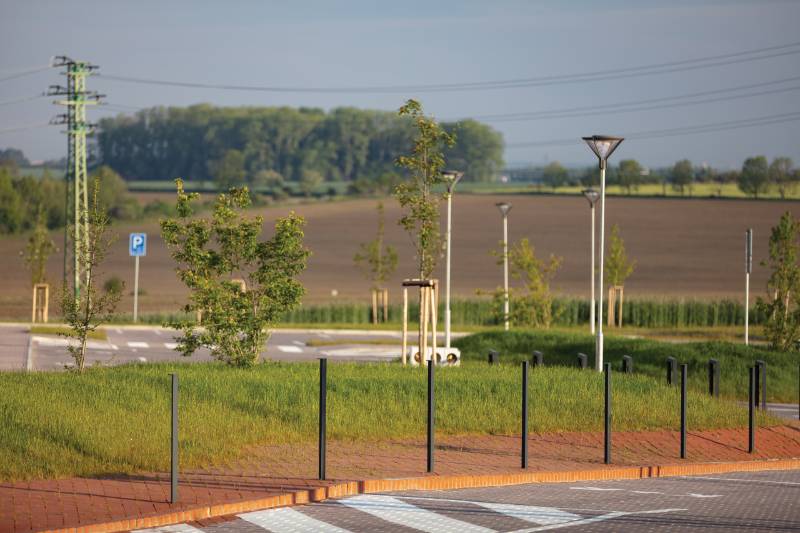

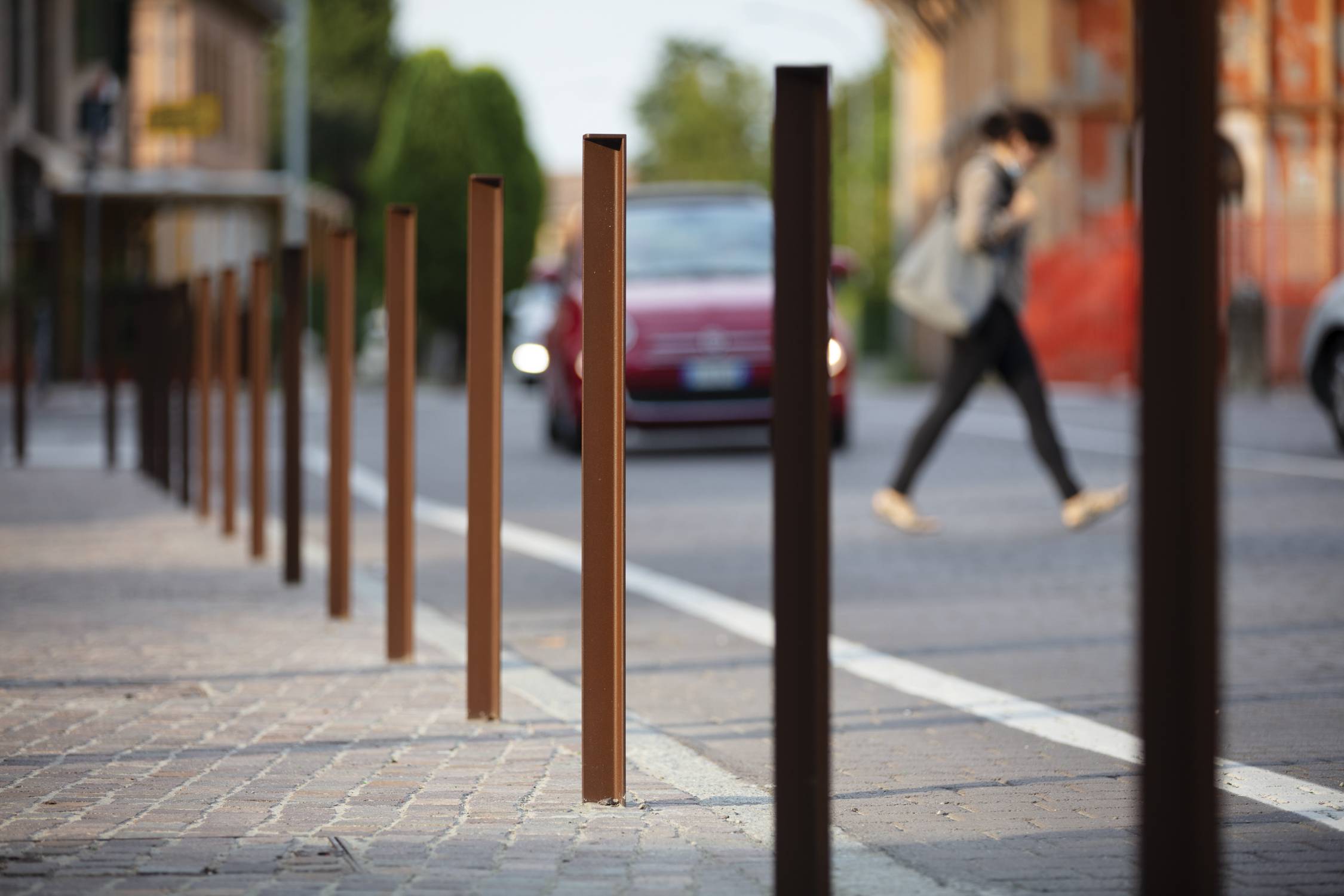

Steel bollards with a simple L-profile and simple top.
Application
Suitable for marking paths and other demarcation.
Description
Steel bollards with a simple L-profile and simple top.
Two cross-sectional sizes allow the choice of the right proportion for a variety of spaces. The optical impression and silhouette varies according to the angle of view.
Features and benefits:
- Galvanized steel structure treated with powder coating.
- Possible to connect the bollards between each other with a steel chain.
- Surface mounted, anchored under the ground or removable.
- The removable model is operated using a quick-release key.
The barrier post is not certified as a guardrail or restraint system for roads. For a decision about the location of the posts are fully responsible designer, who must take into account all the circumstances of place of realization.
General information
Color | Silver Other Beige Black Blue |
Finish | Galvanized Powder-coated |
Material | Carbon steel |
Shape | Rectangle |
Length | 60 mm 80 mm Manufacturer guidanceEffectively width (bollards are square-topped). |
Width | 60 mm 80 mm |
Height | 1000 mm Guidance for specification option: Visible height. |
Warranty description | Six year One year |
Uniclass | |
CAWS | Q50/196 Removable bollards Q50/31 Bollards Q50/190 Bollards |
Specification data - Carbon steel bollards
Duty | Manufacturer's standard. |
Dimensions | |
Size and profile | 60 x 60 mm., L-profile. |
Height | 1000 mm. |
Length below ground | Manufacturer's standard.Guidance for specification option: Anchoring under the paving or in compacted terrain into concrete foundation using M12 (½“) threaded rods. |
Post top | Flat. |
Post base | Flat. |
Finishes | |
Applied finish | Galvanized and powder coated. |
Colour | RAL 1000 green beige.RAL 1012 lemon yellow.RAL 1013 oyster white.RAL 1019 grey beige.RAL 1020 olive yellow.RAL 1021 colza yellow.RAL 2004 pure orange.RAL 2005 fluorescent orange.RAL 2008 bright red orange.RAL 3003 ruby red.RAL 3012 beige red.RAL 3015 light pink.RAL 3016 coral red.RAL 3020 traffic red.RAL 4010 telemagenta.RAL 5002 ultramarine blue.RAL 5011 steel blue.RAL 5015 sky blue.RAL 5019 capri blue.RAL 5024 pastel blue.RAL 6007 bottle green.RAL 6010 grass green.RAL 6018 yellow green.RAL 6019 pastel green.RAL 6027 light green.RAL 7002 olive grey.RAL 7006 beige grey.RAL 7016 anthracite grey.RAL 7021 black grey.RAL 7022 umbra grey.RAL 7024 graphite grey.RAL 7032 pebble grey.RAL 7035 light grey.RAL 7043 traffic grey B.RAL 8019 grey brown.RAL 8024 beige brown.RAL 9005 jet black.RAL 9006 white aluminium.RAL 9007 grey aluminium.RAL 9010 pure white.DB 703 deutsche bahn.AKZO NOBEL Interpon D1036 SW302G.AKZO NOBEL Interpon D1036 SW325i.Corten.Other.Guidance for specification option: Insert requirements (RAL). |
Weight | 8 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Czechia |
Material | Carbon steel |
Third party certifications
ISO 45001 Health and Safety Management
ISO 45001
ISO 9001 Quality Management
ISO 9001
Literature
mmcité standard colour and material chart
