Lorient Compression Seals

Description

The Lorient Architectural Seals range consists of self-adhesive weatherstrips which provide compression seals to reduce the transmission of sound, weather, draughts and dust at window and door openings.

General information

Uniclass 2015

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L10/10 Wood windows

L10/210 Wood windows

L10/250 Wood windows

L10/260 Wood windows

P21/62 Weatherstrip to door head and jambs

P21/855 Weatherstrip to door head and jambs

P21/860 Door seals for

Specification data - Door and window weatherstrips and seals

Product Reference

Lorient Architectural Seals LAS1020 self-adhesive, compression weatherstrip seal

Lorient Architectural Seals LAS1025 self-adhesive, compression weatherstrip seal

Lorient Architectural Seals LAS1030 self-adhesive, compression weatherstrip seal

Lorient Architectural Seals LAS1040 self-adhesive, compression weatherstrip seal

Lorient Architectural Seals LAS1046 self-adhesive, compression weatherstrip seal

Colour

Brown

White

Location

On frame

Recessed

Standard product features

Product reference

LAS1020:

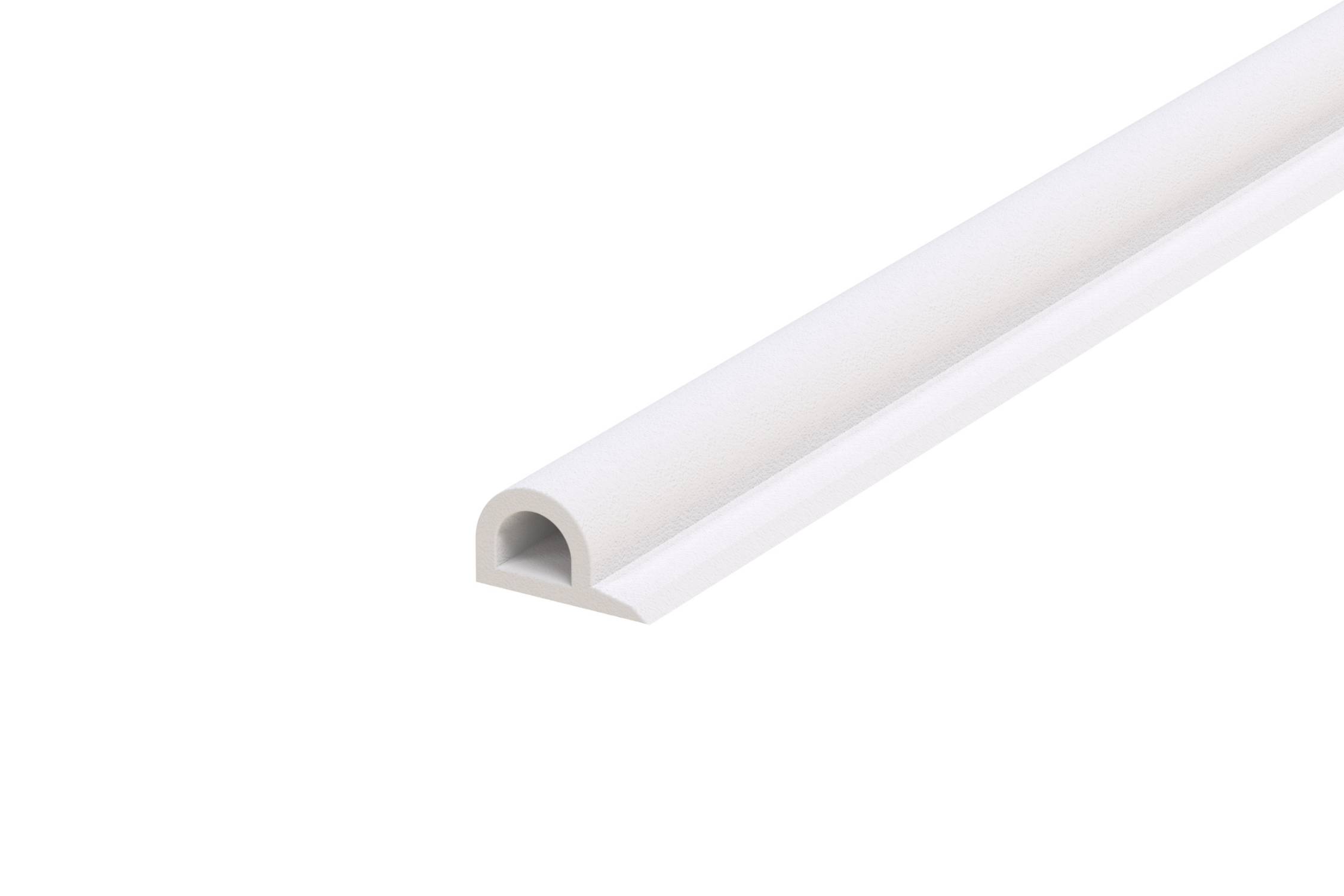

  • Profile: P-shaped.
  • Material: Soft PVC foam.
  • Dimensions: 8 mm wide x 4.5 mm deep, in 6 m and 100 m rolls.
  • Minimum/ maximum gap size: 3 mm/ 4 mm.

LAS1025:

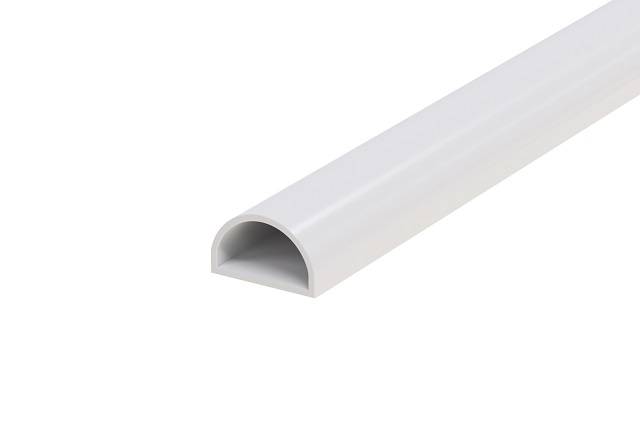

  • Profile: D-shaped.
  • Material: Co-extruded elastomeric bulb with PVC spine.
  • Dimensions: 10 mm wide x 6 mm deep, in 1000 mm and 2100 mm lengths.
  • Minimum/ maximum gap size: rebated - 3 mm/ 4 mm; non-rebated - 3 mm/ 5.5 mm.

LAS1030:

  • Profile: Jagged.
  • Material: Soft EPDM foam.
  • Dimensions: 9 mm wide x 4 mm deep, in 6 m and 100 m rolls.
  • Minimum/ maximum gap size: 3 mm/ 4 mm (rebated).

LAS1040:

  • Profile: Flat.
  • Material: Soft EPDM foam.
  • Dimensions: 9 mm wide x 3 mm deep, in 6 m rolls.
  • Minimum/ maximum gap size: 2 mm/ 3 mm.

LAS1046:

  • Profile: Pointed ellipse.
  • Material: Silicone.
  • Dimensions: 12.5 mm wide x 6.5 mm deep, in 100 m reels.
  • Minimum/ maximum gap size: 3 mm/ 5 mm.

­­LAS1050:

  • Profile: Q shaped.
  • Material: Flexible silicone rubber.
  • Dimensions: 14.5 mm wide x 19 mm deep, in 100 m rolls.
  • Minimum/ maximum gap size: 2 mm/ 4 mm.

LAS1060:

  • Profile: Arrow shaped.
  • Material: Flexible elastomer rubber.
  • Dimensions: 4.4 mm wide x 10 mm deep, in 40 m rolls.
  • Minimum/ maximum gap size: 3 mm/ 6 mm.

LAS1606:

  • Profile: Bulb seal.
  • Material: Co-extruded elastomeric bulb with PVC spine.
  • Dimensions: 11.5 mm deep, in 5 m or 10 m rolls.
  • Minimum/ maximum gap size: 3 mm/ 6 mm.

Fixing:

Self-adhesive tape. Contact surfaces must be clean, smooth and, if painted, well cured.

Product Options

Location:

All seals can be mounted on the frame. LAS1025 can be mounted on the frame or recessed by up to 2 mm.
