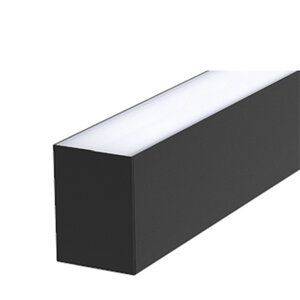

Lopen Wall Linear Lighting
Application

Suitable for offices, retail, galleries, lobby areas and healthcare.

Description

Wall mounted linear LED lighting.


Features and benefits:

  • Versatile, performance driven linear profile.
  • A range of size and colour variations are possible.
  • Ceiling mount bracket screws onto ceiling, and slides into profile groove.
  • Diffuser clicks out and into place for cleaning and easy access.
  • High level of visual comfort.
  • Internal drivers are supplied.

Also available as suspended, recessed and surface mounted (specified separately).

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Linear

Size

561 mm

842 mm

1122 mm

1403 mm

1683 mm

Show more

Uniclass 2015

Pr_70_70_48_85 Surface luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Surface luminaires Enhanced data

Luminaire description

Wall mounted, rectangular, linear.

Classification

-

Electric shock

To BS EN 60598-1, Class I.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Loop wiring.

Nominal voltage

220–240 V.

Luminaire power factor

0.96.

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471.

Safety standard

Non-SELV.

Initial LED luminaire efficacy (minimum)

144 lm/W.

Wattage

Direct 7.4 W/ 1060 lm up to 149 W/ 8850 lm; Direct/ Indirect 18 W/ 2340 lm up to 51.1 W/ 7060 lm.

Colour temperature

3000K.

4000K.

Colour rendering index (Ra)

80.

Beam angle

180°.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Non-dimming.

Standard.

Emergency version

-

Standard

Tridonic.

Integral sensors

Philips EasyAir.

PIR/Daylight.

Helvar active plus.

Micro standalone sensor.

Accessories

Not required.

Ceiling cup, 80 x 80 x 32 mm.

Available white, black or silver.

Corner joint, 139 x 139 mm.

Available white or anodised.

End cap 90 x 79 mm.

Available white, black or anodised.

Power cable, 2000 mm, 4 core.

Power cable, 2000 mm, 5 core.

Straight connector 100 x 57 x 10 mm.

Metal.

Unlit profile, 1000 mm.

Available white or anodised.

Product Reference

Lopen Wall Mounted

Standards

Directive 2014/30/EC - EMC.

Directive 2006/95/EC - Low Voltage.

Regulation 1907/2006 - REACH.

Directive 2019/15/EC - Labelling

Directive 2015/863/EC - RoHS.

Show more

Control gear position

Integral within luminaire.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Three hours.

Optics

Microprismatic Diffuser.

Opal Diffuser.

Colour

Black.

Silver.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<22.8.

Longitudinal

<22.8.

Efficiency

96%.

Frequency

50–60 Hz.

Emergency output

210 lm.

Output direction

Direct/ indirect.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
