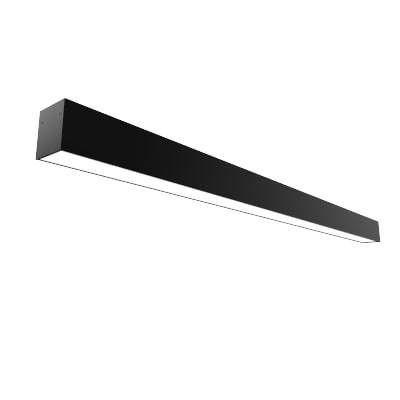

Lopen Surface Linear Lighting
Application

Suitable for offices, retail, galleries, lobby areas and healthcare.

Description

Surface mounted linear LED lighting.

Features and benefits:

  • Versatile, performance driven linear profile.
  • A range of size and colour variations are possible.
  • Diffuser clicks out and into place for cleaning and easy access.
  • High level of visual comfort.
  • Internal drivers are supplied.

Also available as suspended, recessed and wall mounted (specified separately).

Application:

Suitable for offices, retail, galleries, lobby areas and healthcare.

General information

Features

Unique chamfered design, suitable for spaces with low ceilings

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Linear

Size

Ten lengths ranging from ranging from 561-4488 mm

Uniclass 2015

Pr_70_70_48_85 Surface luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Surface luminaires Enhanced data

Product Reference

Lopen Surface Mounted

Standards

Directive 2014/30/EC - EMC

Directive 2006/95/EC - Low Voltage

Regulation 1907/2006 - REACH

Directive 2019/15/EC - Labelling

Directive 2015/863/EC - RoHS

Directive 2012/19/EC - WEEE

Directive 2014/35/EU - making available on the market of electrical equipment

Directive 2011/65/EU - hazardous substances

Luminaire description

Surface mounted, rectangular, linear

Classification

-

Electric shock

Class I

Ingress protection (minimum)

IP20 Rated

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces

Circumstances of use

Normal use

Rated maximum ambient temperature

25°C

Control gear position

Integral within luminaire

Supply circuit conductor connections

Loop wiring

Nominal voltage

220-240 V

Luminaire power factor

0.96

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471

Safety standard

Non SELV

Initial LED luminaire efficacy (minimum)

144 lm/W

Wattage

Direct 7.4 W/ 1060 lm up to 149 W/ 8850 lm

Colour temperature

3000K

4000K

Colour rendering index (Ra)

80

Beam angle

180°

Useful life

50 000 hours (L80B20)

Dimming protocol

DALI Dimming

Non-dimming

Standard.

Emergency version

-

Standard

Tridonic

Mode of operation

Maintained

Duration of emergency mode (minimum)

No emergency

0 hours.

3 hours

Integral sensors

Philips EasyAir

PIR/Daylight

Helvar active plus

Micro standalone sensor

Accessories

Not required

Ceiling cup, 80 x 80 x 32 mm

Available white, black or silver.

Corner joint, 139 x 139 mm

Available white or anodised.

End cap 90 x 79 mm

Available white, black or anodised.

Power cable, 2000 mm, 4 core

Power cable, 2000 mm, 5 core

Straight connector 100 x 57 x 10 mm

Metal.

Unlit profile, 1000 mm

Available white or anodised.

Length

561 mm

842 mm

1122 mm

1403 mm

1683 mm

1964 mm

2244 mm

2805 mm

3366 mm

4488 mm

Light distribution

Direct

Optics

Microprismatic Diffuser

Opal Diffuser

Colour

Black

Silver

White

RAL

Insert requirements.

Unified glare rating

-

Transverse

<22.8, meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards

Longitudinal

<22.8

Driver

-

Efficiency

96%

Frequency

50-60 Hz

Emergency output

210 lm

Output direction

Direct

Standard product features

Colour:

Available in three standard colours or bespoke RAL colour.

Features:

Unique chamfered design, suitable for spaces with low ceilings.

Finish:

Polyester powder coat.

Material:

Extruded aluminium profile with LEDs.

Shape:

Linear.

Size:

Ten lengths ranging from ranging from 561-4488 mm.

Warranty:

Two-year warranty.

Recycled content:

Aluminium and packaging.

Recyclability:

Frame and packaging.

Country of origin:

UK.

Environmental information

Recyclability

Frame and packaging

Recycled content

Aluminium and packaging
