Loox 12V Lighting - Recessed LED Luminaires

Name: Loox 12V Lighting - Recessed LED Luminaires
Brand: 7ULewr8aAUpnoo1xkxV21g
SKU: on33kFXvrjhviSQTj1Sj2z

Hafele UK Ltd

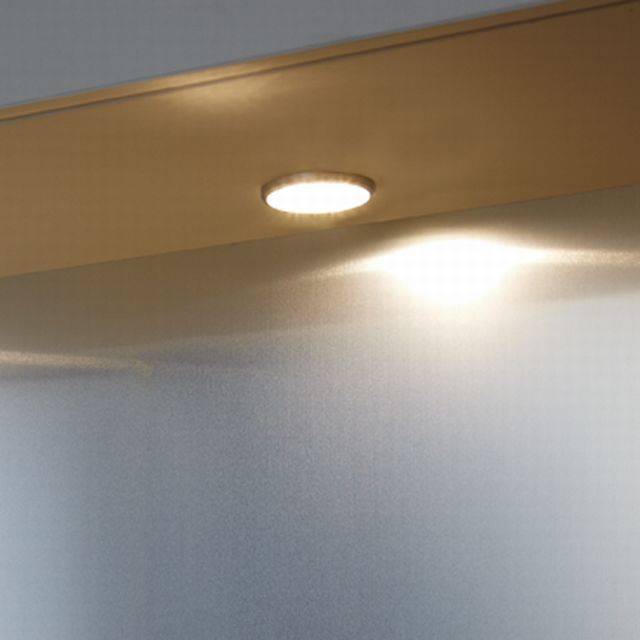

12 V recessed LED luminaires and accessories for use in the Loox 12V modular LED lighting system for furniture.

Jump to:

+44 (0)800 171 2907 www.hafele.co.uk

Application

For use in furniture lighting systems.

Description

12 V recessed LED luminaires and accessories for use in the Loox 12V modular LED lighting system for furniture.

Features and benefits:

Includes innovative and powerful drivers.

The simple and flexible design of the system is reflected in the standardized Plug and Play technology, making it easy to integrate LED lighting in furniture and fittings.

The flexible and modular system components make it possible to have a wide range of applications and solutions, simplify installation or provide meaningful combinations of different lights and switches.

Matching surface-mounted luminaries also available (specified separately).

Application:

For use in furniture lighting systems.

General information

Uniclass 2015	Recessed luminaires (Pr_70_70_48_71)

Specification data

Product Reference	LED 2005, recess mounted lights LED 2020, recess mounted lights
Accessories	-
Drivers	833.74.900 15 W maximum output. 833.74.917 20 W maximum output. 833.74.901 30 W maximum output. 833.74.913 60 W maximum output.
Converters and multi-driver boxes	Not required 833.89.061, multi-driver box 833.80.912, converter for 350 mA lights
Switches	833.89.044, push switch, black 833.89.045, door contact switch 833.89.046, foot switch 833.89.070, touch-free switch 833.89.071, door sensor switch 833.89.072, motion detector 833.89.073, touch-free dimmer 833.89.074, push switch, silver
Switch accessories	Not required 833.89.048, surface mounted housing, black 833.89.049, surface mounted housing, silver 833.89.090, surface mounted housing, silver 833.89.060, multi-switch box Allows up to three switches for one light.
Leads and distributors	Not required 833.89.067, 2000 mm extension lead for switches 833.89.068, 500 mm lead for multi-switch box or multi-driver box 833.89.069, 2000 mm lead for multi-switch box or multi-driver box 833.74.724, 500 mm extension lead for lights 833.74.725, 1000 mm extension lead for lights 833.74.726, 2000 mm extension lead for lights 833.74.765, four-way extension lead for lights 833.75.743, six-way distributor 833.74.742, three-way distributor with switching
Profiles	Not required 833.74.817, recessed mounting profile, milky cover 833.74.818, recessed mounting profile, frosted cover 833.74.819, recessed mounting profile, milky cover 833.74.820, recessed mounting profile, frosted cover 833.72.735, aluminium wardrobe rail profile 833.74.812, corner mounting profile
Cable channel	Not required 833.89.013, white, RAL 9010 – 2500 mm long. 833.89.023, brown, RAL 8007 – 2500 mm long. 833.89.033, black, RAL 9005 – 2500 mm long.

Product Options	Profiles: For mounting LED 2013 and LED 2015 strip lights.

Loox 12V Lighting - Recessed LED Luminaires

LED 2005, recess mounted lights

LED 2020, recess mounted lights

833.74.900

833.74.917

833.74.901

833.74.913

Not required

833.89.061, multi-driver box

833.80.912, converter for 350 mA lights

833.89.044, push switch, black

833.89.045, door contact switch

833.89.046, foot switch

833.89.070, touch-free switch

833.89.071, door sensor switch

833.89.072, motion detector

833.89.073, touch-free dimmer

833.89.074, push switch, silver

Not required

833.89.048, surface mounted housing, black

833.89.049, surface mounted housing, silver

833.89.090, surface mounted housing, silver

833.89.060, multi-switch box

Not required

833.89.067, 2000 mm extension lead for switches

833.89.068, 500 mm lead for multi-switch box or multi-driver box

833.89.069, 2000 mm lead for multi-switch box or multi-driver box

833.74.724, 500 mm extension lead for lights

833.74.725, 1000 mm extension lead for lights

833.74.726, 2000 mm extension lead for lights

833.74.765, four-way extension lead for lights

833.75.743, six-way distributor

833.74.742, three-way distributor with switching

Not required

833.74.817, recessed mounting profile, milky cover

833.74.818, recessed mounting profile, frosted cover

833.74.819, recessed mounting profile, milky cover

833.74.820, recessed mounting profile, frosted cover

833.72.735, aluminium wardrobe rail profile

833.74.812, corner mounting profile

Not required

833.89.013, white, RAL 9010 – 2500 mm long.

833.89.023, brown, RAL 8007 – 2500 mm long.

833.89.033, black, RAL 9005 – 2500 mm long.

Profiles:For mounting LED 2013 and LED 2015 strip lights.

Profiles:
For mounting LED 2013 and LED 2015 strip lights.
