4" Link & Lock Batten
Verified by manufacturer 4 months ago
Two-piece link and lock siding board: 4"
Two-piece link and lock siding board: 4"
EPD
Certificate type
UKAS
Certificate type
Link and Lock is a two-piece aluminium battens with concealed fastener system.
Application
Suitable for interior and exterior wall features and façade cladding applications.
Description
Link & Lock™ is the innovative hidden fastener solution! The system was designed for easy install and creative adaptability in a variety of interior and exterior applications.
The Link & Lock™ aluminum batten system complement any architectural design being non-combustible, VOC free and corrosion resistant and also accepts matching Longboard end caps where needed to create a premium finished look.

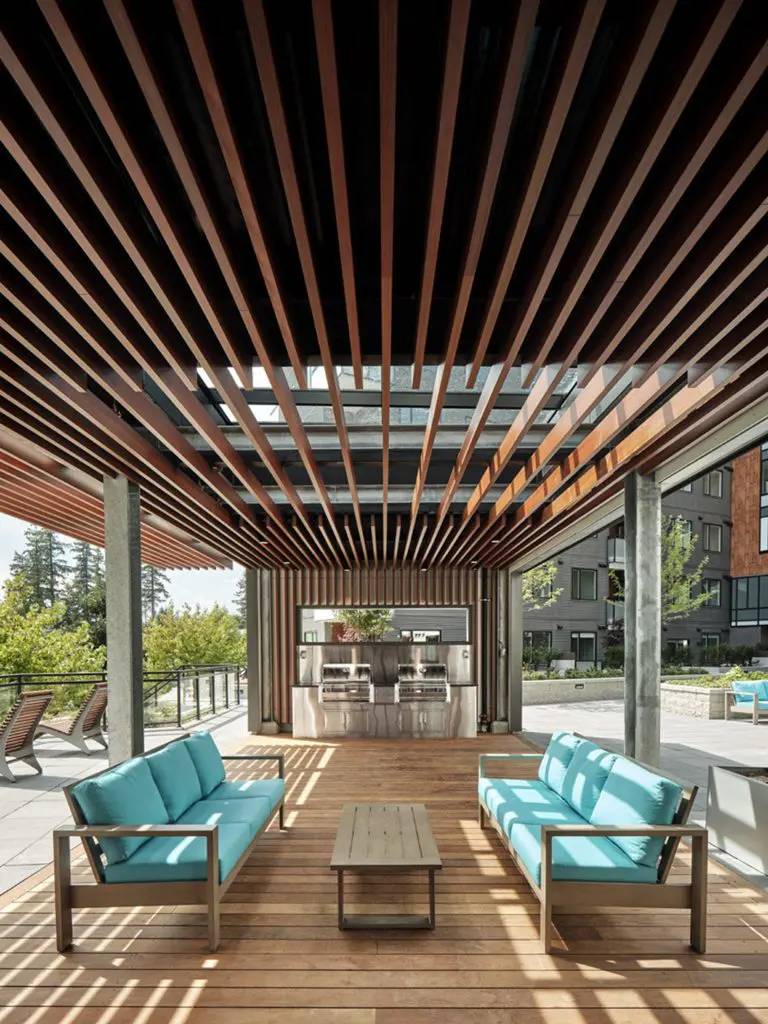

The system is available in various dimensions and all woodgrain, solid color, naturally aged metal, and specialty finish options. These 2-piece battens can be installed in a variety of different ways and orientations to achieve beam, fin or louver designs.
Features and benefits:
- Built for easy installation and creative adaptability.
- Available in woodgrain, solid and shimmer colour options. Custom colours are also available.
- 15 year warranty, with 20 year ultra-warranty available; consult manufacturer for details.
- VOC-free.
- Non-combustible.
- Weather resistant.
- Accepts matching Longboard end caps where required, to create a finished look.
General information
Color | Black Blue Bronze Brown Grey |
Finish
| Gloss Powder-coated |
Material | Aluminium Extruded aluminium. |
Shape | Rectangle |
Length | 7315.2 mm |
Width | 41 mm |
Height | 101.6 mm |
WarrantyDescription | 15 year Surface finish. 50 year Aluminium material. 20 year |
Uniclass | |
CAWS | H72/3 Aluminium sheet fully supported roof covering H72/130 Aluminium sheet fully supported wall covering |
Specification data - Aluminium traditional sheets
Temper | T5. |
Factory finishesFor Woodgrains, Solid and Specialty colour finishes, refer to colour specification. | Powder coated. |
ThicknessBase metal thickness. | 1.65 mm.1/16". |
Reaction to fire | - |
External face | Class A Non-Combustible by ASTM E136 and ASTM E84. |
Internal face | Class A Non-Combustible by ASTM E136 and ASTM E84. |
Colour
| Western cedar. Woodgrain. Dark cherry. Woodgrain. Light cherry. Woodgrain. Dark fir. Woodgrain. Light fir. Woodgrain. |
Accessories | Not required. Batten end caps. With matching powder coated finish. |
Profile | 41 x 102.8 mm. 1 5/8 x 4". |
Length | 7315.2 mm. 24 ft. |
Material | Extruded aluminium alloy 6063-T5. |
Gloss level | 30 (±5). |
FixingThe first L-piece is fastened directly to the supporting structure and thereafter the second L-piece is snapped in place. | Hard fasten with ten screws at 845 mm (32") centers. Screws by others. |
Weight | 1.93 kg/m. 1.3 lbs/lf. |
Environmental information
Contains Red List materials | No |
Country of material origin | Canada |
Country of product manufacture | Canada |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 6.75 kg CO₂ eq/kg |
Recyclability | 100% The extrusion does not contain any plastic elements. |
Recycled content | 50 % |
EPD
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
EPD
Environmental Product Declaration
UKAS
UK Fire Testing
