Privacy Screen Beam 1 x 3"

Verified by manufacturer 4 months ago

Longboard Products Third party certifications:
  • EPD

    EPD

    Certificate type

  • Declare

    Declare

    Certificate type

  • UKAS

    UKAS

    Certificate type

1 x 3" aluminium siding/ privacy beams.

Jump to:
+44 2039911138 Website

Application

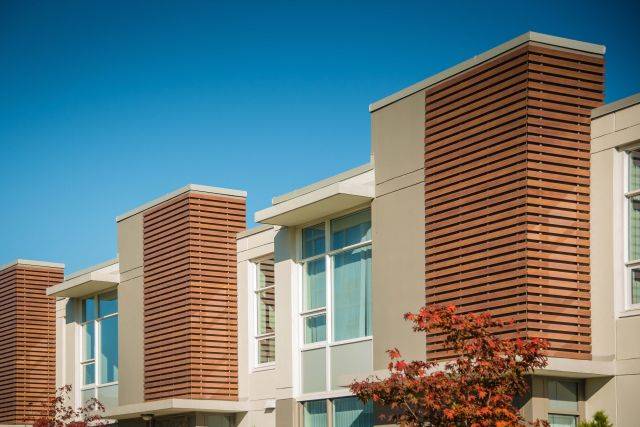

Suitable for use as siding/ privacy beams and compliments any building design.

Description

Aluminium siding/ privacy beams with a 1 x 3" profile, providing a floating appearance.


Features and benefits:

  • Built for easy installation, low-maintenance and durability.
  • Can be installed horizontally or vertically.
  • Available in woodgrain, solid and shimmer colour options. Custom colours are also available.
  • 15 year warranty. 20 year ultra-warranty available for additional cost; consult manufacturer for details.

General information

Color

Black

Blue

Bronze

Brown

Copper

Show more

Finish

As per manufacturer and includes:

  • Woodgrain.
  • Solid.
  •  Shimmer.

Gloss

Powder-coated

Material

Aluminium

Shape

Rectangle

Length

7315.2 mm

Width

25.4 mm

Height

76.20 mm

Warranty description

15 year

20 year

Ultra-warranty available for additional cost; consult manufacturer for details.

50 year

Uniclass

Pr_25_71_51_06 Aluminium traditional sheetsPrimary

CAWS

H72/130 Aluminium sheet fully supported wall covering

Specification data - Aluminium traditional sheets

Factory finishes

Powder coated.

Thickness

Base metal thickness.

0.062 mm.

Colour

Custom colours are also available; consult manufacturer for more information.

Western cedar.

Dark cherry.

Light cherry.

Dark fir.

Light fir.

Show more

Accessories

None.

Beam caps.

Flat bar spacers.

Mounting brackets.

Plastic spacers.

Show more

Profile

25.4 x 76.2 mm.

1 x 3".

Length

7315.2 mm.

24 ft.

Material

Extruded aluminium 6063-T5.

Gloss level

30 (±5).

Sustainability data

Contains Red List materials

No

Country of material origin

Canada

Country of product manufacture

Canada

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

6.75 kg CO₂ eq/kg

Recyclability

100%

Recycled content

50 %

EPD

BIM objects

Platform Compatible Version
Revit
-

1
