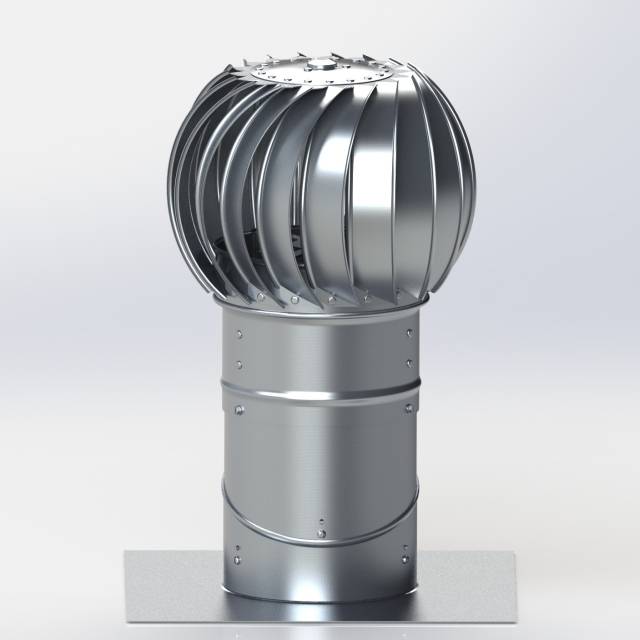

Lomanco Turbine BIB8
Application

  • Roofs - flat and pitched.
  • Ventilation shafts within tower blocks.
  • Attics/ loft spaces.
  • Stores.
  • Production plants.
  • Cellars.

Description

8" diameter aluminium ventilation turbine suitable for flat and pitched roofs.

Features and benefits:

  • Extends the life of the roof structure by exhausting damaging heat and moisture from attic/ loft space.
  • Wind powered turbine maximizes ventilation capacity while geared towards going green.
  • Can reduce energy bills and the likelihood of winter ice build-up.
  • Permanently lubricated upper and lower ball bearings for long life and no maintenance.
  • All-aluminium, rust-free construction.
  • Rigid spider-type structure.
  • Large flashing for ease of installation.
  • Turbine head and base can be used separately.
  • Tested to withstand winds of 110 mph.
  • Square base adjusts to a roof pitch of 0–27°.
  • Includes roof pitch bevel to help determine roof pitch.
  • 18 air-foil curved vanes with rolled vane edges to deflect water.
  • 12" and 14" models also available.
  • Lifetime transferrable warranty for residential use (15 year-warranty for commercial use); two-year warranty on all accessories.

Applications:

  • Roofs - flat and pitched.
  • Ventilation shafts within tower blocks.
  • Attics/ loft spaces.
  • Stores.
  • Production plants.
  • Cellars.

Components:

  • Base.
  • Adjustable neck.
  • Reinforced turbine head (8", 203 mm).
  • Roof pitch bevel.
  • Screws/ fixings.

General information

Uniclass 2015

Pr_30_59_29_77 Rotary roof ventilatorsPrimary

CAWS

H30/10 Fibre cement

H30/110 Fibre cement

H30/120 Fibre cement

H31/10 Metal

H31/110 Metal

H31/120 Metal

H32/110 GRP

H32/111 PVC-U

H32/115 Polycarbonate

H32/120 Plastics

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

H60/105 Clay roof tiling

H60/110 Clay roof tiling with counterbattens

H60/120 Concrete roof tiling

H60/125 Concrete roof tiling with counterbattens

H60/3 Roof tiling

H60/5 Roof tiling with counterbattens

H61/105 Roof slating

H61/110 Roof slating with counterbattens

H61/3 Roof slating

H61/5 Roof slating

H62/105 Roof slating

H62/110 Roof slating with counterbattens

H62/125 Roof slating

H62/130 Roof slating with counterbattens

H62/145 Roof slating

H62/150 Roof slating with counterbattens

H62/3 Roof slating

H62/5 Roof slating with counterbattens

H64/10 Wood shingle/ shake roofing with counterbattens

H64/110 Wood shingle/ shake roofing

H64/120 Wood shingle/ shake roofing with counterbattens

H64/5 Wood shingle/ shake roofing

H65/10 Reconstituted slate roof tiling with counterbattens

H65/105 Clay roof tiling

H65/110 Clay roof tiling with counterbattens

H65/115 Concrete roof tiling

H65/120 Concrete roof tiling with counterbattens

H65/125 Reconstituted slate roof tiling

H65/130 Reconstituted slate roof tiling with counterbattens

H65/135 Ceramic slate roof tiling

H65/140 Ceramic slate roof tiling with counterbattens

H65/3 Roof tiling

H65/5 Roof tiling with counterbattens

H65/8 Reconstituted slate roof tiling

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/3 Metal roof tiling

H67/5 Metal roof tiling with counterbattens

Specification data - Rotary roof ventilators

Product Reference

Lomanco Turbine BIB8

Accessories

None

Base for extension parts

Galvanized steel; suitable for flat roofs.

Electromechanical regulation flaps, electric

See 'Options' for details.

Electromechanical regulation flaps, mechanical

See 'Options' for details.

Extension part, 500 mm-high

Galvanized steel.

Extension part, 1000 mm-high

Galvanized steel.

Universal base, black

Aluminium; suitable for profiled metal roofs and tiled roofs.

Universal base, brown

Aluminium; suitable for profiled metal roofs and tiled roofs.

Universal base, red

Aluminium; suitable for profiled metal roofs and tiled roofs.

Standard product features

Colour/ finish:

Anodized aluminium.

Size:

- Turbine:

  • Height: 360 mm.
  • Diameter: 320 mm.

- Neck/ base:

  • Neck height: 195 mm.
  • Neck diameter: 203 mm.
  • Base width: 400 mm).

Weight:

1.319 kg.

Ventilation characteristics:

- By ventilated area:

  • 0–90 m²: Three units required.
  • 90–140 m²: Six units required.
  • 140–185 m²: Nine units required.
  • > 185 m²: 12 units required.

- Exhausted air rate:

  • Wind speed 8 km/h: 165 m³/h.
  • Wind speed 13 km/h: 295 m³/h.
  • Wind speed 24 km/h: 565 m³/h.

Product Options

Accessories:

- Electromechanical regulation flaps:

  • Material: Galvanized steel.
  • Allows for control of the amount of air exhausted directly below the turbine. This is an indirect control of the turbine, reducing exhausted air.
  • Two positions: Closed or open.
  • Not supplied with fitted cabling and switches.
  • Flap height: 230 mm (8" diameter version).
