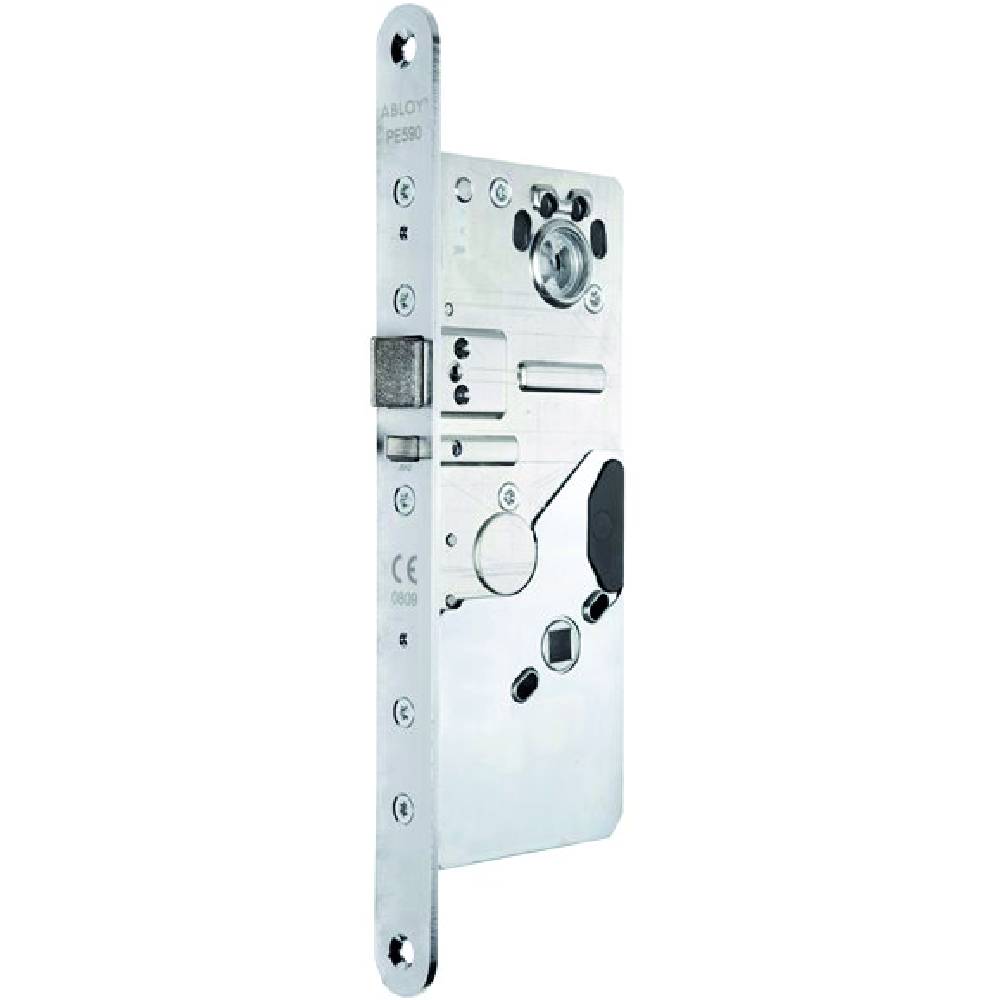

Lock Case for Panic Exit (PE590)

Verified by manufacturer 11 months ago

Abloy UK

Push and pull function lock case for panic exit solid doors.

Jump to:
+44 (0)1902 364500 Website

Application

  • Suitable for interior and exterior panic exit and fire rated one leaf doors of offices, business premises, hospitals and schools.
  • Suitable for doors with door automatics.

Description

Push and pull function lock case for panic exit solid doors.


Features and benefits:

  • Easily reversible dead bolt and trigger bolt.
  • 14 mm deadbolt.
  • Inside handle operates at all times or can be controlled electrically in two way access controlled doors (electrically controlled handle won't meet EN 179 or EN 1125).
  • Meets EN 179 and EN 1125 for emergency and panic exits and EN1634-1 for fire resistance doors (when inside handle can be operated at all times and installed with suitable hardware).
  • Tested to mechanical resistance standard EN 12209.
  • Tested to draft standards prEN 14846.
  • Retrofits mechanical Scandinavian mortice locks.

General information

Finish

Chrome

Material

Steel

Size

255 x 22 mm

Manufacturer guidance

Plate size.

Uniclass

Ss_25_38_20_20 Door hardware systemsPrimary

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door hardware systems

Operating

Push and pull function lock case.

Execution

Installing door hardware.

Product Reference

Lock Case for Panic Exit (PE590)

Voltage

12–24 V.dc.

Power consumption

1700–700 mA.

Guidance for specification option:

Max consumption at 12—24 V.dc.

(Idle consumption 50—25 mA at 12—24 V.dc).

Operating temperature

-20°C to +60°C.

Bolt

14 mm.

Manufacturer guidance

Bolt throw.

Backset

50 mm.

Forend

22 mm.

Spindle

8 mm.

Surface finish

Polished chrome.

Standard

To EN 1125.
