Litho-Glass - Glass Cladding System
Verified by manufacturer 7 days ago
Lightweight glass cladding system.
Application
Cladding/ facades for new builds and refurbishment projects.
Description

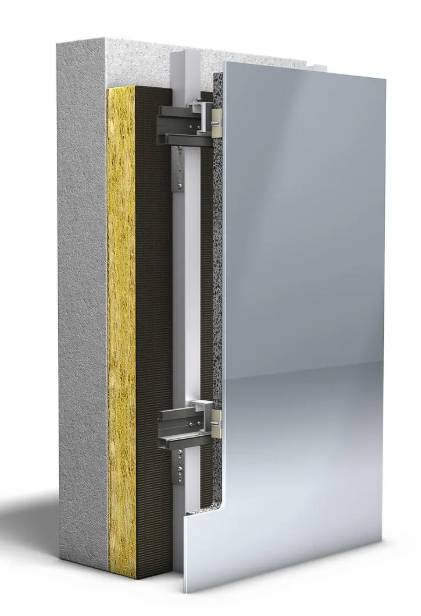

Lightweight glass cladding system with concrete carrier panels and aluminium sub-structure.
Features and benefits:
- Consists of resistant laminated sheets of 8 mm toughened safety glass (ESG-H) with a maximum thickness of 27 mm, which are bonded to a lightweight concrete support.
- Panels can measure up to 7.74 m², and are fastened with an invisible agraffe suspension construction.
- The toughened safety glass panels are available in numerous attractive color variants – individual digital printing is also possible.
- Compensation of unevenness thanks to flexible substructure, weather and frost resistant.
General information
Color | Other |
Finish | Enamelled Other Guidance for specification option: Enamelling, screen printing or digital printing. |
Material | Glass Concrete Aluminium |
Shape | Other Guidance for specification option: Glass elements are available with corresponding substructures for ceiling areas. This allows you to continue the glass facade architecturally over suspended ceilings, projections or canopies, something that is structurally difficult and expensive with conventional glass cladding due to the high dead weight and complex fastenings. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Description | Lightweight glass cladding system. |
System manufacturer | Telling Rainscreens Ltd. |
Thermal insulation | Mineral wool slab insulation. Guidance for specification option: Mineral wool insulation (WLG 032 and 035). |
Breather membrane | |
Material | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Secondary support structure | Aluminium sub-structure. Guidance for specification option: L and T-sections. Consult manufacturer for details. Aluminium grade 6063-T6. |
Cladding panels | |
Material | Toughened safety glass. |
Panel joints | Manufacturer's standard. |
Reveals | Manufacturer's standard. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Additional supports | Lightweight concrete carrier panels. |
Panel Type | Manufacturer guidanceInsert details of required formats and shaped parts. |
Finish | Manufacturer guidanceAvailable in numerous attractive color variants including RAL colors, RAL design, NCS colors – enamelling, screen printing and digital printing is also possible. Consult manufacturer and insert requirements. |
Panel size | Manufacturer guidance
|
Reaction to fire | To DIN EN 13501, Class A2-s1,d0. To DIN 4102-1, Class B1. Manufacturer guidanceCan be produced as A2-s1 d0 for panels above 4 storeys or lower if required, and they are produced as standard in a B1 class according to DIN 4102-1 for a flame-retardant panel below this height, if acceptable to the fire officer and client team as standard. |
Impact resistance | To DIN 14019, Class E5. |
Sustainability data
Country of product manufacture | Germany |
Material | Glass Concrete Aluminium |
