Argeton Terracotta Facades Systems

Name: Argeton Terracotta Facades Systems
Brand: Telling Rainscreens Ltd
SKU: s4XGcX4ZnR8NZuxhCGTCey

Verified by manufacturer 1 day ago

Telling Rainscreens Ltd

Third party certifications:

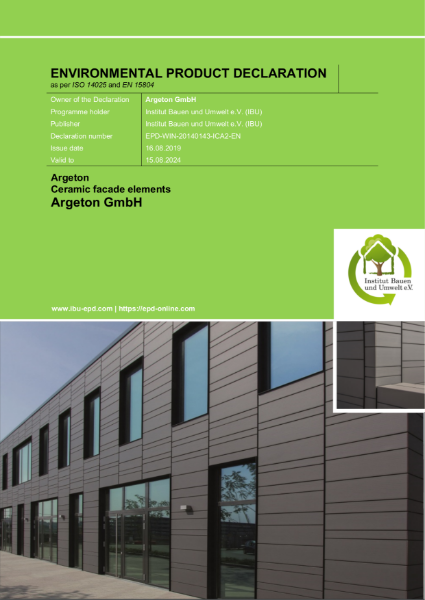

EPD
Certificate type

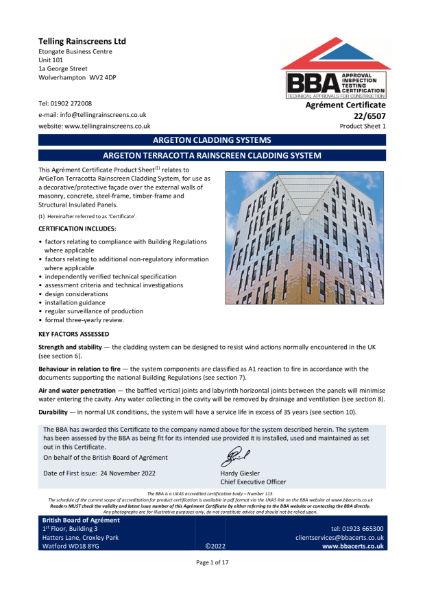

BBA Agrément Certificate
Certificate type

Terracotta rainscreen cladding system.

Jump to:

BOS

+441902272008 Website

Application

For use as a decorative/ protective facade over the external walls of masonry, concrete, steel-frame, timber-frame and structural insulated panels.
Suitable applications include; hotels, hospitality and entertainment venues, retail and shopping centres, residential buildings, research and educational institutions, hospitals and civic and government buildings.

Description

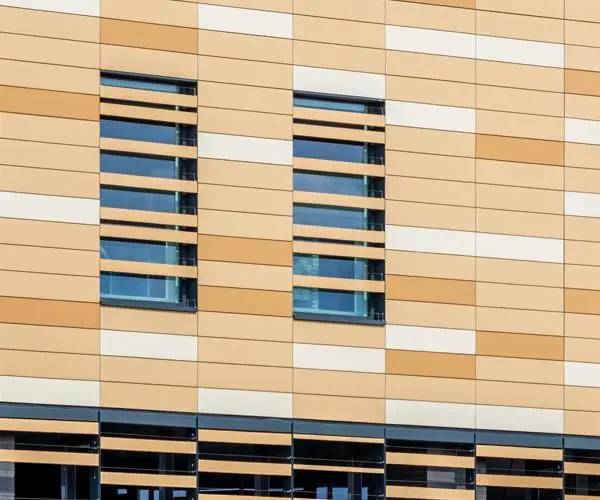

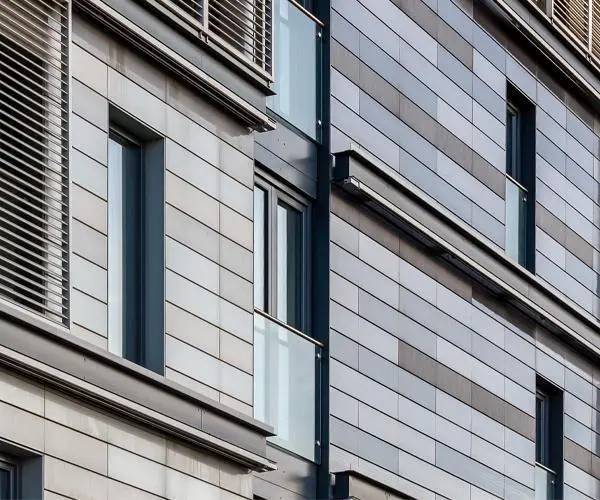

The Argeton Terracotta Façade System is an innovative and cost-effective building cladding system. It is based on the proven principle of the ventilated cavity, using natural clay tiles suspended in a rainscreen, mechanically attached to an aluminium substructure.

Features and benefits:

Durable.
Contemporary aesthetic.
Great thermal insulation.
Combines well with steel, glass or wood.
Available in 26 distinctive colours as standard and glazes can be developed in almost unlimited varieties.
Smooth faced, profiled or textured terracotta cladding tiles.
Euro-class A1 fire-rated.
BBA and EPD for the system.

General information

Color	Beige Black Blue Bronze Brown Copper Cream Green Grey Ivory Orange Pink Purple Red Turquoise White Yellow Other Show more
Finish	Smooth Brushed Textured Other
Material	Clay
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
CAWS	H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation	- Manufacturer guidance Non-combustible rigid type (e.g. boards or batts) - supplied by others. Consult manufacturer and insert requirements.
Breather membrane	-
Material	- Manufacturer guidance Permeable type - supplied by others. Consult manufacturer and insert requirements.
Fasteners	Aluminium clamps or clips.

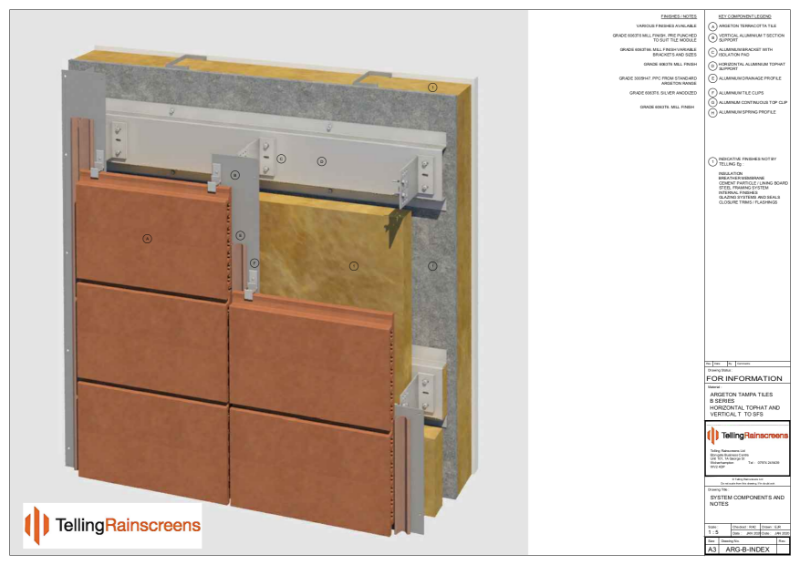

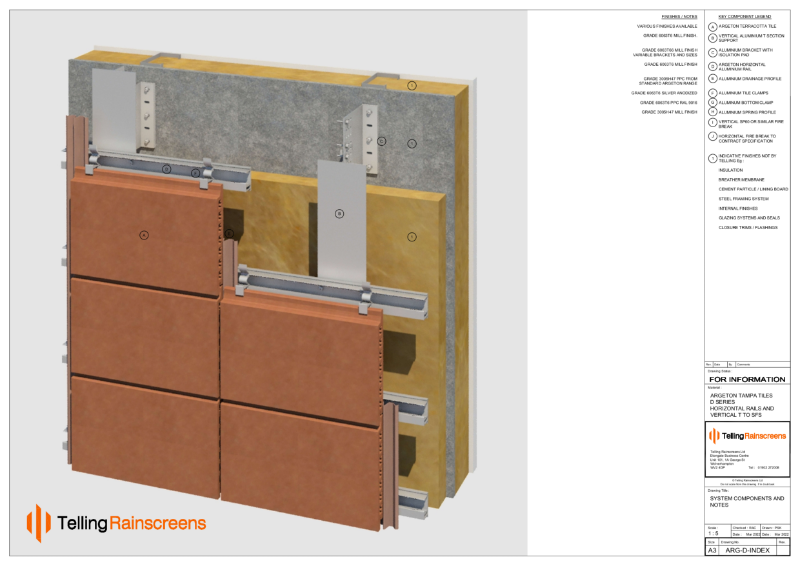

Secondary support structure	Aluminium support rails. Guidance for specification option: Aluminium grade 6063-T6.
Cladding panels	-
Material	Terracotta panels.
Panel joints	Baffled joints (vertical); Labyrinth joints (horizontal).
System accessories	Not required. Ceramic Corner.

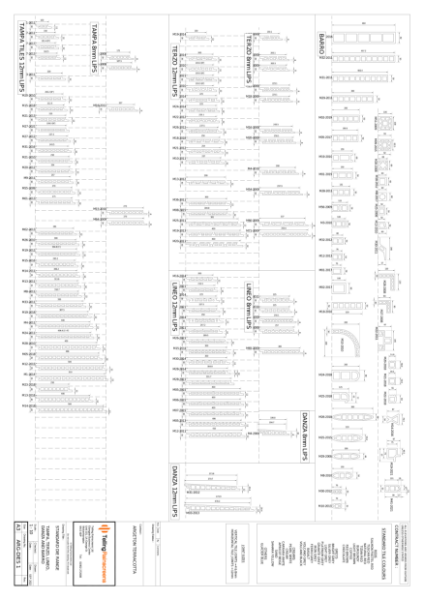

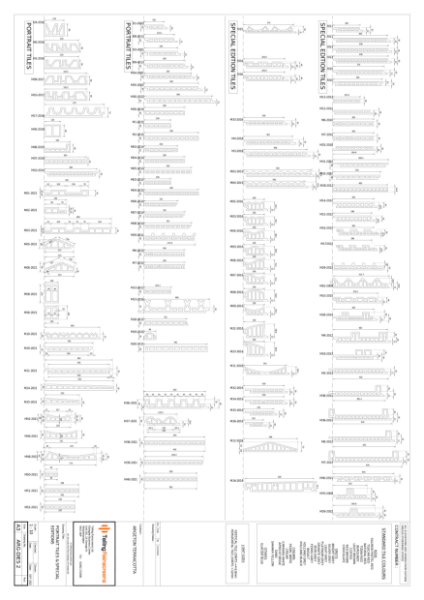

Panel Type	Tampa. Guidance for specification option: Classic tile for a clean building appearance. Terzo. Guidance for specification option: False joints in the surface in various widths and distances. Lineo. Guidance for specification option: Horizontal linear structure created by 3 mm deep grooves. Danza. Guidance for specification option: Overlap of individual panels. Altivo. Guidance for specification option: Vertical oriented facade tiles. Barro Brick Bar. Guidance for specification option: Consult manufacturer's literature for details. Argelite. Guidance for specification option: Low weight. Bespoke. Guidance for specification option: Bespoke tile shapes; consult manufacturer for details and insert requirements. Show more
Colour	Salmon/ Pastel Red. Natural Red. Red Brown. Bright Grey. Light Grey. Platinum Grey. Iron Grey. Volcano Grey. Pearl White. Sand. Tuscan Red. Tizian Red. Burgundy. Light Brown. Coffee. Chocolate. Glacier Blue. Silver Grey. Granite Grey. Basalt. Ferro Grey. Volcano Black. Carrara White. Cream. Apricot Beige. Sahara Yellow. Glaze Colour Range. Guidance for specification option: Consult manufacturer for details and insert requirements. Show more Manufacturer guidance Panel colour.
Surface finish	Natural. Engobe. Glazed. Smooth. Brushed. Wire dragged. Structure. Orange peel. Wave. Show more Manufacturer guidance Consult manufacturer for details.
Panel size	Guidance for specification option: Insert requirements. Thickness of tile: 30 and 35 mm (+/- 1.5 mm). Maximum length: 1500 mm. Maximum height: 500 mm.
Reaction to fire	Class A1.
Samples required	Not required. Required. Guidance for specification option: Consult manufacturer and insert requirements.

Sustainability data

Country of material origin	Germany
Country of product manufacture	Germany
Material	Clay
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	43.4 kg CO₂ eq/m²
Recyclability	All aspects of the system can be recycled
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
