Litchard Picnic Unit
Verified by manufacturer 7 months ago
Health & Safety Accreditation
Certificate type
BBA Agrément Certificate
Certificate type
CHAS
Certificate type
Constructionline
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Rospa Safety Charity
Certificate type
CQMS
Certificate type
smas WORKSAFE
Certificate type

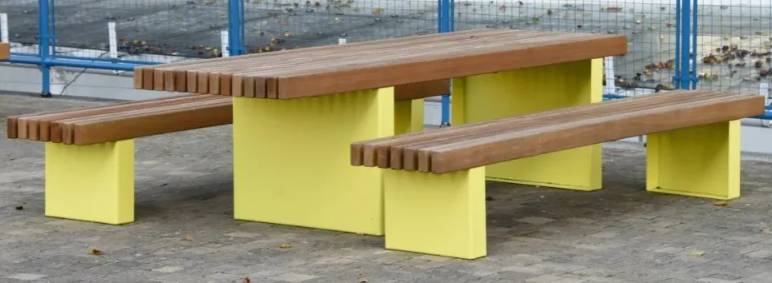

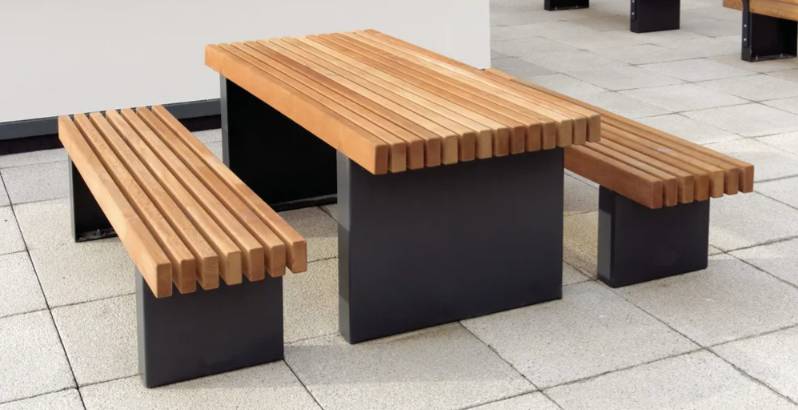

A picnic unit comprising a steel-framed hardwood table and two benches.
Application
Suitable for any outdoor area. Broxap design, manufacture and supply a large selection of weatherproof, outdoor picnic benches in a range of colours and materials. These include cast iron, steel, timber, concrete and recycled plastic. All of which are suitable to convert outdoor areas at restaurants, parks, pubs and other leisure facilities into warm, inviting and welcoming rest areas.
Broxap’s range of picnic benches and seats can also be supplied as free standing units, submerged fixed or base plate fixed.
Description
The Litchard Picnic Unit comprises one table and two benches to create one cohesive unit. The modern, aesthetically pleasing design lends itself to any external works package and will complement any environment.
Features and benefits:
- Available in a range of standard RAL and BS Colours.
- Available with either softwood or heavy-duty Iroko hardwood slats.
- This picnic unit is also available with an extended table top for wheelchair users.
General information
Color | Black Red Blue White Grey |
Finish | Galvanized Powder-coated |
Material | Steel Timber |
Shape | Rectangle |
Length | 1800 mm |
Width | 1670 mm |
Height | 700 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/230 Tables Q50/220 Benches Q50/33 Benches |
Specification data - Combined outdoor tables and seating
Length | 1.8 m. |
Base | Base plated.Root fixed. |
Material | Steel and iroko hardwood.Steel and FSC iroko hardwood.Steel and treated softwood.Steel and FSC treated softwood. |
Finish as delivered | Galvanized only.Galvanized and powder-coated. |
Colours | None.Anthracite Grey RAL 7016.Black RAL 9005.Dark Blue RAL 5013.Dark Grey BS 4800 18 B 25.Duchess Blue BS 4800 20 C 40.Goose Grey BS 4800 00 A 05.Holly Green BS 4800 14 C 39.Mid Blue RAL 5015.Moss Green RAL 6005.Traffic Red RAL 3020.Traffic Yellow RAL 1023.White Aluminium RAL 9006.White RAL 9016.Non standard BS/RAL colour.Guidance for specification option: Insert requirements. |
Configuration | Standard. Extended table top for wheelchair access. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Health & Safety Accreditation
Alcumus Safe Contractor
BBA Agrément Certificate
CE Marking Certification
CHAS
CHAS Elite
Constructionline
Constructionline Gold Member
Health & Safety Accreditation
Insurance
ISO 45001 Health and Safety Management
ISO45001 Health Safety
ISO 9001 Quality Management
ISO9001 Quality
Rospa Safety Charity
ROSPA
CQMS
CQMS Safety Scheme
smas WORKSAFE
SMAS Worksafe
BBA Agrément Certificate
UKCA Marking Certification
Literature
Litchard Picnic Unit Specification Sheet
Case studies
York House, Windsor
