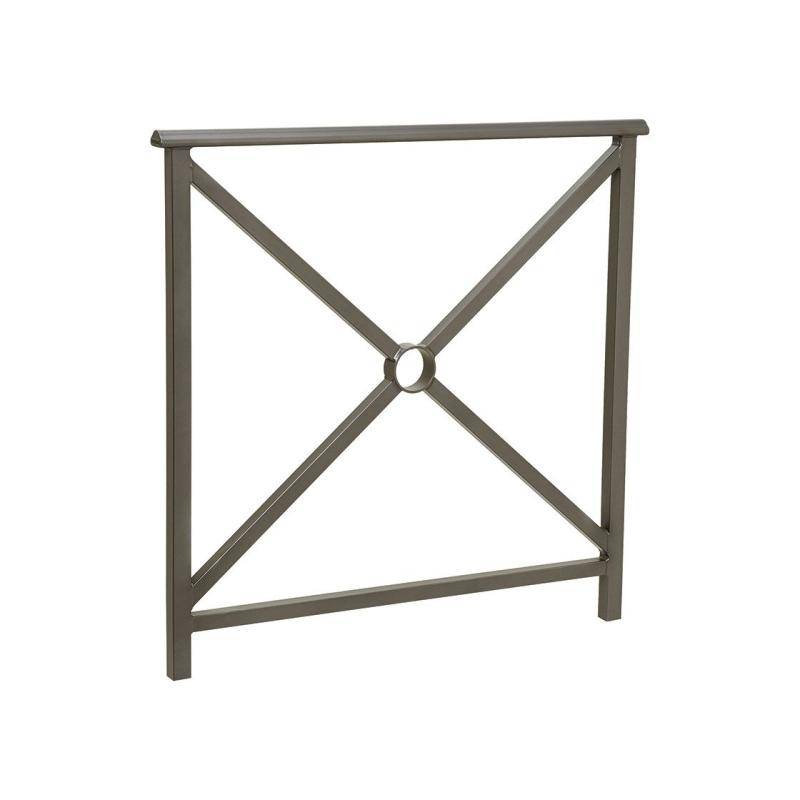

Lisbon railing
Verified by manufacturer 7 months ago
Steel street barriers.
Application
Street barriers help to manage pedestrian flows, prevent illegal parking and make roads and outdoor areas, such as school exits, safer.
Description
A true classic in urban design, a diagonal cross for an eye-catching look and an exceptionally comfortable top handrail which extends slightly past the edges of the frame to provide a continuous line when installed.
Features and benefits:
- Available in two finishes.
- Available in two lengths: 1000 mm or 1500 mm.
- Made from 35 x 35 mm steel tubes.
- Available in three styles: simple cross, mesh and rosette.
- Installation is concreted directly into ground (base plates available as option).
- Top handrail feature which extends slightly past the edges of the frame.
- Lisbon railing - Railings - Street furniture - Procity UK
- Can be made removable using Lockblock socket system. Self-draining through gravel at bottom of sockets composed of two sockets operated by a triangle key.
- Lockblock socket system for removable railings - Procity UK
General information
Color | Grey White Blue Red Black |
Finish | Painted |
Material | Steel |
Shape | Rectangle |
Length | 1000 mm 1500 mm |
Width | 50 mm |
Height | 1180 mm |
Warranty description | Five year |
Uniclass | |
CAWS | Q41/130 Protective barriers Q41/130 Protective barriers Q41/135 Proprietary protective barriers |
Specification data - Protective rail systems
Length | 1000 mm. 1500 mm. |
Frame | Simple cross. Rosette. Mesh. |
Posts | Steel tubes 35 x 35 mm. |
Applied finish | Zinc primed. Zinc primed and painted. Guidance for specification option: RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect. |
Accessories | Lockblock socket system. None. |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Recyclability | Steel is 100% recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
