Description

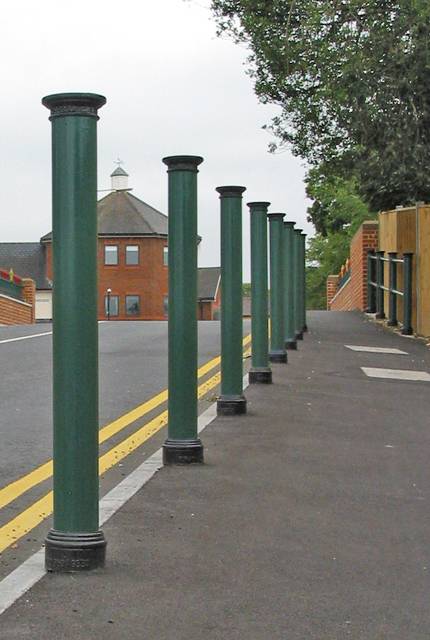

The Linx bollard range is a series of innovative designs, devised to work with Furnitubes patented unique Linx railing system.

These bollards work on a mix and match principle - they are available in four different sizes and there is a choice of six caps and two base collars. This variety of options ensures that the bollards can be tailored to achieve an individual look that reflects the uniqueness of any area.

The above ground height is over 1000 mm, which can help the visually impaired and assist with the requirements of the DDA and BS 8300. Linx bollards can also be supplied as a removable bollard.

General information
Specification data - Stainless steel bollards
Product Reference

Linx Bollard

Type

Insert product reference from 'Options'.

Material/ Finish

Cast iron caps and collars

Primed finish.

Steel post, galvanized finish

Standard.

Stainless steel post, grade 1.4301 (304), bright polished

Stainless steel post, grade 1.4301 (304), satin polished

Stainless steel post, grade 1.4401 (316), bright polished

Stainless steel post, grade 1.4401 (316), satin polished

Fixing

Removable

Root fixed

Standard.

Socket

Not required

For root fixed bollards.

FI75

Small composite socket for 75 mm diameter bollards.

FI115

Large composite socket for 115 mm diameter.

SOCKSS

Small steel socket for bollards under 170 mm diameter.

SOCKLS

Large steel socket for bollards of at least 170 mm diameter.

Accessories

None

CHNS

Steel spiked chain link, galvanized.

CHNP

Steel plain chain link, galvanized.

EB100

Cast iron Euston base collar.

EB200

Cast iron Euston base collar.

EBAB

Steel M10 eye bolt, bright zinc plated.

SLNK

Steel split link, galvanized.

TAPE C

Red/ white chevron reflective tape.

TAPE R

Red reflective tape.

TAPE W

White reflective tape.

TAPE Y

Yellow reflective tape.

TB100

Cast iron Trafford base collar.

TB 200

Cast iron Trafford base collar.

Standard product features

Below ground height:

375 mm (300 mm for Linx 200 Midi range).

Product Options

Type (including cap design options), above ground height:

- Linx100 range, 115 mm diameter:

  • LEB100 – Euston, 375 mm.
  • LKB100 – Knightsbridge, 1275 mm.
  • LAB100 – Ashton, 1200 mm.
  • LHB100 – Hale, 1200 mm.
  • LTB100 – Trafford, 1270 mm.

- Linx200 range, 75 mm diameter:

  • LEB200 – Euston, 1160 mm.
  • LKB200 – Knightsbridge, 1220 mm.
  • LAB200 – Ashton, 1170 mm.
  • LHB200 – Hale, 1170 mm.
  • LTB200 – Trafford, 1220 mm.
  • LNB200 – Kenton, 1135 mm.

- Linx200 Midi range, 75 mm diameter:

  • LEM200 – Euston, 805 mm.
  • LKM200 – Knightsbridge, 865 mm.
  • LAM200 – Ashton, 815 mm.
  • LHM200 – Hale, 815 mm.
  • LTM200 – Trafford, 865 mm.

- Linx400 range, 102 mm diameter:

  • LNB400 – Kenton, 1135 mm. Stainless steel bollard.

Finish:

- Polyester powder coated finish:

A wide range of RAL and BS 4800 colours are available, consult manufacturer and insert requirements.

- Primed:

It is recommended that top coats are applied on site after installation on primed products.
