Linear Slot Diffuser
Verified by manufacturer 5 months ago
Aluminium supply or extract diffuser.
Application
Suitable for wall or ceiling mounting.
Description
Linear Slot Diffuser for supply or extract air. Fully adjustable with air pattern control design. The air pattern can be adjusted in situ or factory set to suit design requirements.
Features and benefits:
- Fabricated from extruded aluminium sections. Frame 1.6 mm thick, anodized matt black air pattern controllers, 3.0 mm thick traversing nylon bearings.
- Height of slot diffuser is determined by the number of slots required, usually to a maximum of eight slots.
- The slot diffuser is designed to form long continuous lengths but is also effective in short sections.
General information
Color | Other |
Finish | Anodized Powder-coated Mill |
Material | Aluminium |
Shape | Rectangle |
Width | Bespoke |
Height | 80 mm 117 mm 155 mm 192 mm 230 mm |
Uniclass | |
CAWS | U90/380 Room extract grilles U90/505 Supply air diffusers |
Product range |
Specification data - Linear air diffusers
Application | Supply.Extract.Supply with equalising grid. |
Duty | |
Air volume | Guidance for specification option: Insert requirements. |
Size | Guidance for specification option: Height of the slot diffuser is determined by the number of slots required, usually to a maximum of eight slots. See the Linear Slot Diffusers data sheet for details. The slot diffuser is designed to form long continuous lengths but is also effective in short sections. Insert requirements. |
Diffuser | Slot. |
Arrangement | Non-adjustable. |
Position | Ceiling.Cill.Wall. |
Material | Aluminium. |
Finish | Polyester powder-coated, BS/ RAL.Guidance for specification option: Insert colour requirement. Satin anodized.Mill finish.PPC BS00E55 White. |
Accessories | None.Damper. |
Fixings | Concealed rear bracket. Drop rod lugs. |
FrameType | 30 mm border, two end caps. 30 mm border, one end cap. 30 mm border, no end caps. |
NumberOfSlots | 1no. 2no. 3no. 4no. 5no. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | The global Recycling Efficiency Rate (RER) of aluminium is currently 76% |
Literature

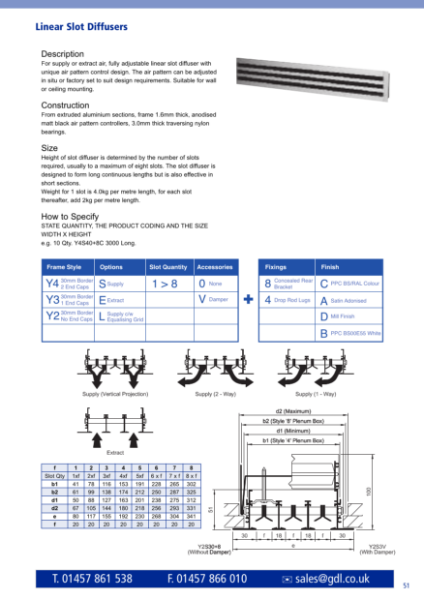

Linear Slot Diffuser
