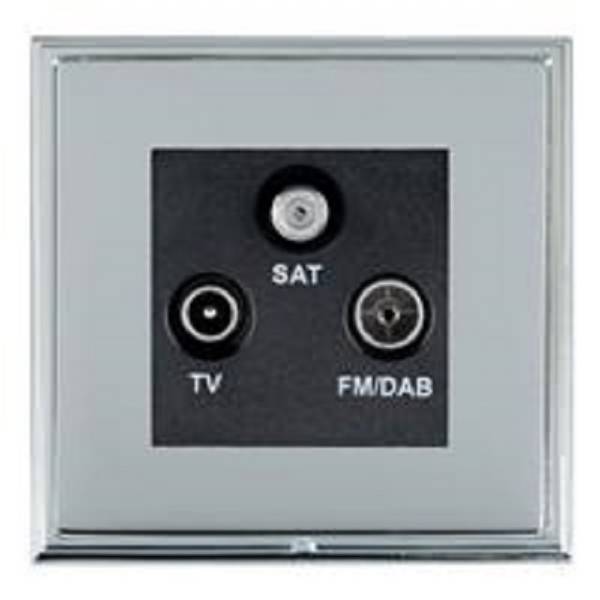

Linea-Scala CFX - Television Sockets

Application

Internal use only.

Description

Sleek and stylish with a delicate stepped-edge frame adds a classic touch to this plate with hidden fixings. A separate back frame and our patented four point face plate clipping system allow the option of matching or contrasting elements


Features and benefits:

  • Stepped edged frames and a modern look.
  • Eleven stunning front plate finishes and ten frame finishes, including four shades of bronze.
  • Concealed fixing (CFX).
  • Stepped-edge frame adds a classic touch to this plate with hidden fixings.
  • Grid and EuroFix options also available.

General information

Color

Black

Silver

Gold

White

Finish

Mix and match between 11 plate finishes and ten frame finishes

Satin

Polished

Material

Cast brass

Shape

Square

Rectangular

Size

91.5 x 91.5 x 4 mm

91.5 x 150.5 x 4 mm

Uniclass 2015

Pr_70_75_04_90 Television outlet platesPrimary

CAWS

V90/430 Electrical accessories

V90/430 Electrical accessories

W90/320 Television outlets

Product range

Linea Scala CFX

Specification data - Television outlet plates Enhanced data

Standard

To BS 5733, BS EN 50083-2:2012/A1; 2015, BS EN 61169-2:2007, BS EN 61169-24:2009.

Format

Non-Isolated TV 1in/ 1 out.

Isolated TV/FM Diplexer 1 in/ 2 out.

Isolated TV 1in/1out.

Non-Isolated TV and Satellite 2 in/ 2 out.

Non-Isolated Satellite.

Isolated Satellite.

Non-Isolated TV+FM+SAT Triplexer 1 in/ 3 out (DAB Compatible).

Non-Isolated TV (Female) (DAB Compatible).

Non-Isolated TV (Male) (DAB Compatible).

Non-Isolated Satellite (DAB Compatible).

Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2 in/ 4out (DAB Compatible).

Non-Isolated TV+FM+SAT1+SAT2 Quadplexer 2 in/ 4out +TVF+TCS (DAB Compatible).

Plate

-

Material

Cast brass.

Finish

Mix and match between 11 plate finishes and ten frame finishes.

Antique brass.

Black nickel.

Bright Steel.

Connaught bronze.

Copper bronze.

Etrium bronze.

Piano Black.

Polished brass.

Richmond bronze.

Satin brass.

Satin Steel.

Insert colour

Black.

White.

Dimensions

91.5 x 91.5 x 4 mm.

91.5 x 150.5 x 4 mm.
