Lindner Raised Floor Pedestals Type M
Verified by manufacturer 3 months ago

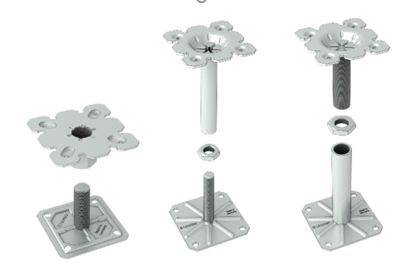

System floor pedestal type M1
System floor pedestal type M1
ISO 9001 Quality Management
Certificate type
System floor pedestal type M made from galvanized steel.
Application
To be used as a substructure with raised access floor systems.
Description
The system floor pedestal type M is made from galvanized steel in combination with gaskets and optionally stringers type RO, RL and RM.
The system floor pedestals are made by Lindner, from the design to the production including galvanization.
The system floor pedestal type M creates the cavity for taking up installations. The system floor pedestal type M offers flexibility from its high loadability and the high adjustment range. The pedestals are infinitely adjustable on height and can therefore take up irregularities of the subfloor.
Features and benefits:
- High loadability.
- Easy installation.
- High corrosion protection.
- Chrome(VI)-free.
- Zinc-whisker free.
- Can be combined with stringers type RO, RL and RM.
General information
Color | Silver |
Finish | Galvanized |
Material | Zinc Steel |
Shape | Square |
Height | Bespoke Guidance for specification option: 13–1790 mm. |
Warranty description | 25 year |
Uniclass | |
CAWS | K41/130 Raised access floor K41/130 Raised access floor |
Product range |
Specification data - Access floor pedestals
Class | To BS EN 12825, Class 2.Guidance for specification option: Concentrated load: 3 kN. |
Pedestal type | Raised floor pedestal. |
Materials | Zinc-plated steel. |
Model | Adjustable. |
Height | 13–55 mm. |
Reaction to fire | To BS EN 13501, A1. Guidance for specification option: Non-combustible. |
Stringers | Not required. Type RO. Type RL. Type RM. |
Breaking load | To BS EN 12825, ≥12 kN (breaking load centric); ≥6 kN (breaking load eccentric). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Zinc Steel |
Manufacturing plant location | |
Expected Life | 50 year |
Third party certifications
Case studies
AMG Brand Centre - FLOOR and more power
Central Station Berlin Completed Works: - Metal Ceiling - FLOOR and more - NORTEC - Plasterboard partition systems - Fire protection doors
Covestro, Leverkusen -> Ceilings -> Partition -> Floors
HAUSER CB - Metal Ceilings, LIGNA and NORTEC raised floors
MOL campus - Floor and more G40 and NORTEC
New headquarters "Helix" Post Luxembourg -> Partitions -> Floors

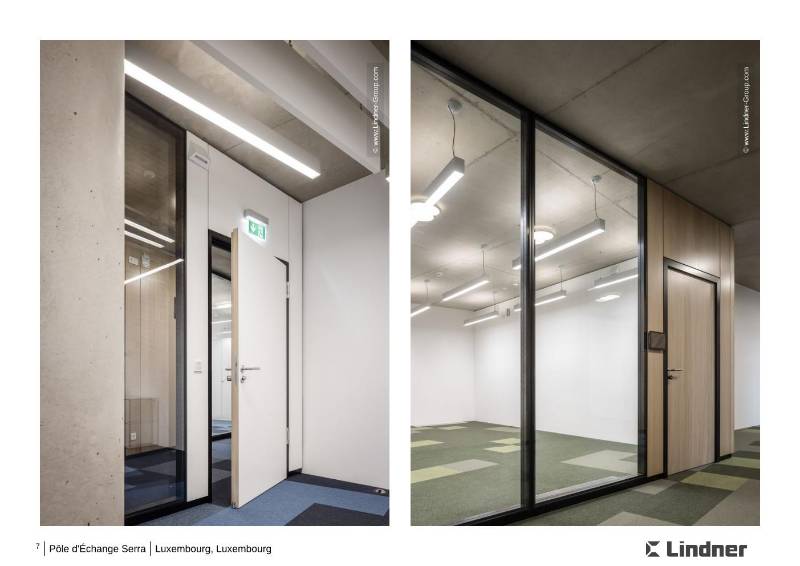

Pôle d'Échange Serra -> Partitions -> Floors
SBB Byte Wankdorf --> Room-in-Room -> Partitions -> Floors

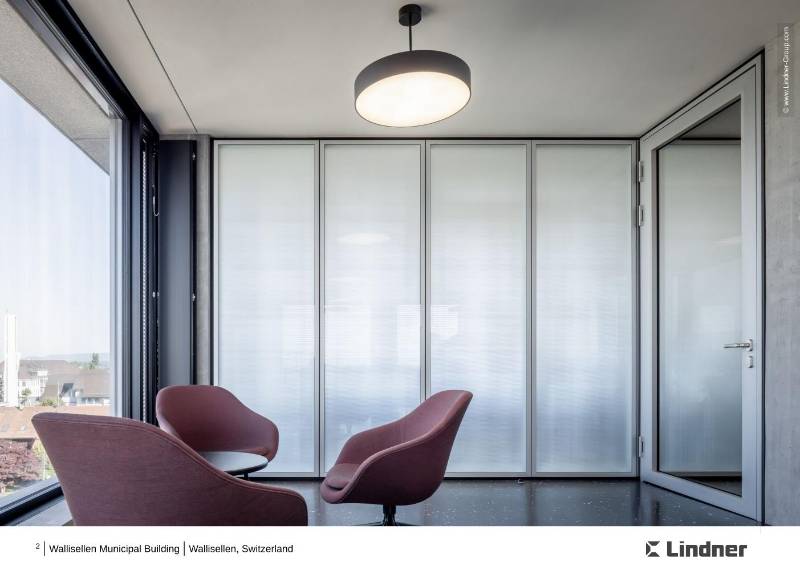

Wallisellen Municipal Building -> Partitions -> Floors
