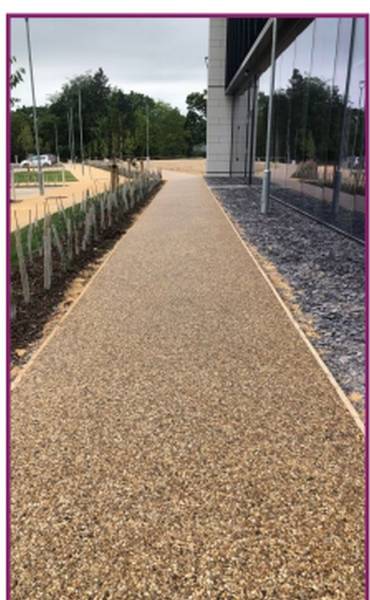

LimeBound Resin Bound Surfacing UV

Suitable for paths, driveways and car parks.


A resin-bound aggregate surface for pedestrian and vehicular traffic which is permeable (SuDS-compliant), decorative and functional, seamless and slightly flexible.

The system is a two-component mixture of the highest grade aliphatic and latest technology ingredients, which bind a range of selected decorative, kiln-dried aggregates. It provides a porous surface strong enough for foot and light vehicle traffic of up to 7.5 tonnes.

Edgings created from brick, stone, timber or steel should be installed to retain and protect the resin bound surfacing.

Features and benefits:

  • Compressive and flexural strength testing to BS EN 13892-2.
  • QUV weathering chamber testing to BS EN ISO 16474-3 method A.
  • Slip resistance testing to BS 8204-6:2008+A1:2010, Appendix B.
  • Application to concrete/ asphalt concrete conforming to EN 13108-1, and hot-rolled asphalt conforming to EN 13108-4.
  • UV-stable; will not discolour nor degrade.
  • SuDS-compliant permeable paving: 850 L/m²/minute.
  • Natural and recycled aggregate available.
  • 15 mm depth installation for paths and drive-on/ drive-off driveways.
  • 18 mm depth installation for turning driveways/ car parks of up to 7.5 tonnes.
  • All aggregates selected to reduce the chances of rust appearing.
  • Optimized ratio of resin to aggregate mix blends, in line with industry standards (7%).
  • Foot traffic after 14–15 hours at 20°C.
  • Manufactured UKAS ISO 9001 in line with the guidance notes published by the Resin Bound Technical Committee as part of FeRFA: the Resin Flooring Association.

General information



Resin and aggregate


Uniclass 2015

Ss_30_14_02_71 Resin-bound aggregate light-duty paving systemsPrimary


Q23/225 Proprietary resin bound chippings

Specification data - Resin-bound aggregate light-duty paving systems Enhanced data

Geotextile below granular sub-base


Not required.

Granular sub-base

150 mm minimum well-compacted type 1 granular sub-base or similar approved.


200 mm minimum well-compacted type 3 granular sub-base or similar approved.


300 mm minimum well-compacted type 3 granular sub-base or similar approved.


Base course

Refer to Limegate Solutions Ltd relevant base build up sheets.

Surface course

Resin-bound mixed aggregate surfacing.

Edge restraints


Product Reference

LimeBound Resin Bound Surfacing UV


15 mm.


18 mm.


Environmental information

Country of material origin

United Kingdom

Third party certifications
  • FeRFA: The Resin Bound Technical Committee guidance notes 2021
