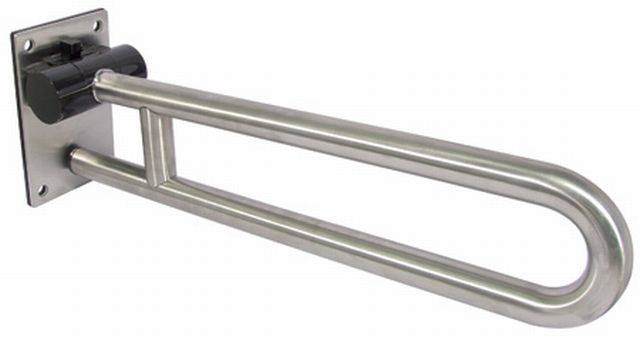

Lift-up Safety Support - Handrail
Verified by manufacturer 14 days ago
980.78.400
980.78.400
Lift-up handrail.
Application
Suitable for support within public and private bathrooms and healthcare rooms.
Description
Lift-up handrail.
Features and benefits:
- Hinged handrail with spring-assisted mechanism to raise the arm and hold it in the upright position.
- CE-marked.
- Wall fixing plate includes nylon interior plate.
- Easy clean and sterile surface.
General information
Finish | Satin Manufacturer guidanceAvailable in nylon finish. |
Material | Stainless steel Guidance for specification option: Grade 316 satin stainless steel. Aluminium Guidance for specification option: Nylon covered die cast aluminium alloy. |
Shape | Rectangle |
Length | 600 mm 700 mm 850 mm |
Width | 125 mm Guidance for specification option: Wall mounted plate. |
Height | 200 mm Guidance for specification option: Wall mounted plate. |
Uniclass | |
CAWS | N13/69 Support rails and grab bars N13/436 Handrails and grab bars |
Product range |
Specification data - Support rails
Form | Hinged. |
Diameter | 32 mm. |
Type | 980.78.400. Guidance for specification option: 150 kg carrying capacity. |
Arm length | 600 mm. |
Materials | Grade 316 satin stainless steel. Nylon covered die cast aluminium alloy. |
Installation | Wall mounted. |
Thickness | 1.5 mm. |
Literature
Access for All Product Directory
Similar products from Hafele UK Ltd

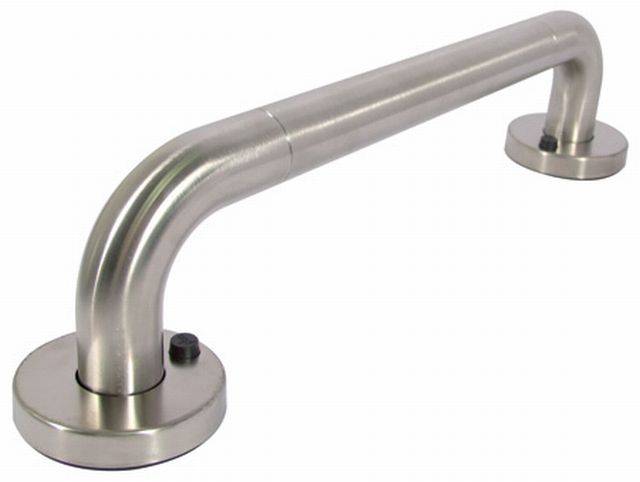

Straight Grab Rail - Support rail
