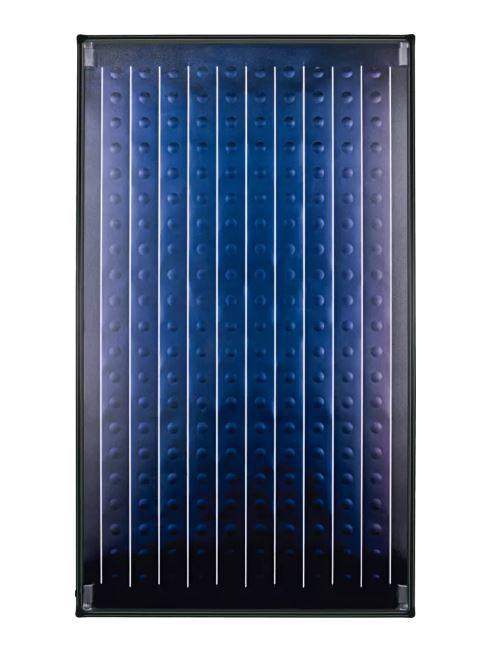

Portrait - 8718530950
Solar thermal panels.
Suitable for any roof shape and space. They can be sited in roof, on a pitched roof, on a flat roof or fixed to a wall.
The robust fibre glass collector offers durability and a superb price/performance ratio. Compatibility with existing heating equipment and straight forward installation saves time and money, and ensures a hassle free energy saving solution. Solar Lifestyle flat plate panels are highly efficient and versatile, allowing customers to benefit from hot water comfort as soon as the sun rises. With a modern one-piece panel design, the panels are available in portrait and landscape formats to suit any roof shape and space. They can be sited in roof, on a pitched roof, on a flat roof or fixed to a wall.
Associated accessories and parts also available from Bosch.
Features and benefits:
Color | Black |
Finish | PVD Guidance for specification option: Vacuum applied PVD coating. |
Material | Fiber-glass Glass Mineral wool |
Shape | Rectangle |
Length | 1175 mm 2017 mm |
Width | 2017 mm 1175 mm |
Height | 87 mm |
Warranty description | Two year |
Uniclass | |
CAWS | S90/347 Flat plate solar collectors S90/347 Flat plate solar collectors |
Description | Solar thermal panels. |
Manufacturer | Bosch Thermotechnology Ltd. |
Third-party certification | MSC certified - 011 7S 1610F. |
Performance characteristics | |
Operating pressure | 6 bar. |
Flow rate | 50 L/h. |
Efficiency | 77.0 η0 (%); a1 3.216 W/m²k; a2 0.015 W/m²k².Manufacturer guidanceOptical efficiency. |
Environmental performance | |
Recyclability | 80%. |
Product characteristics | |
Orientation | Vertical. |
Mounting | |
Mounting method | Flat roof.Over roof.Roof-integrated.Wall-mounted. |
Weight | 40 kg.Manufacturer guidanceWeight empty. |
Panel height | 87 mm. |
Panel width | 1175 mm. |
Area | |
Nominal | 2.37 m². |
Aperture area | 2.25 m². |
Absorber area | 2.18 m². |
Volume | 0.94 L.Manufacturer guidanceAbsorber volume. |
Materials | |
Absorber plate | Vacuum applied PVD coating.Guidance for specification option: A special vacuum applied PVD coating converts up to 97% of the absorbed radiation into heat and also helps to minimize heat loss. |
Panel cover | Solar safety glass.Guidance for specification option: Toughened to 3.2 mm self cleaning safety glass minimizes accidental installation damage. |
Collector box | Fibre-glass. |
Insulation | 55 mm mineral wool.Guidance for specification option: Backed with 0.6 mm zinc aluminium coated steel. |
Panel length | 2017 mm. |
SolarAbsorption | 95 ± 2%. |
Emissions | 5 ± 2%. |
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Germany |
Material | Fiber-glass Glass Mineral wool |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceTM65 data available for embodied carbon calculations. Consult manufacturer for details. |
Recyclability | 80% |
