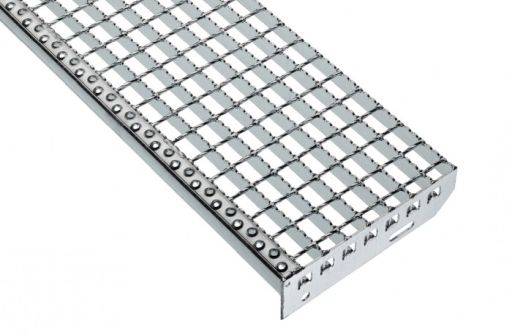

Lichtgitter Stair Tread - Steel Treads
Verified by manufacturer 2 months ago
Stair tread.
Application
Suitable for stairs application.
Description
Stair treads are available as shown with end plate and stair-nosing already welded to give 1000 mm tread. The loose end plate can be welded to the tread after cutting to length, matching the weld specification at the fixed end.
Features and benefits:
- Bespoke sizes are available, with the option of welding a rear riser plate.
- Optional welded rear riser plate and loose end plate.
General information
Color | Silver |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle |
Length | 250 mm Bespoke |
Width | 1000 mm Bespoke |
Height | 65 mm Bespoke |
Uniclass | |
CAWS | L30/310 Proprietary stairs L30/30 Proprietary stairs L30/270 Stairs L30/20 Stairs L30/250 Metal stairs |
Specification data - Carbon steel stair treads
Standard | To BS EN ISO 14122-3:2016 and BS 4592:2006 + A1:2012. |
Finish | Galvanized to BS EN ISO 1461. |
Size | |
Length x width | 250 x 1000 mm.Guidance for specification option: Standard. Other.Guidance for specification option: Bespoke sizes are available; consult manufacturer for options and insert requirements. |
Thickness | 65 mm.Guidance for specification option: Standard. Other.Guidance for specification option: Bespoke sizes are available; consult manufacturer for options and insert requirements. |
Slip resistance value – water wet (minimum) | Manufacturer's standard.Guidance for specification option: Consult manufacturer for details. |
Accessories | None. Welded rear riser plate. Loose end plate. Manufacturer guidanceConsult manufacturer for details. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Germany |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2015 | 2 |
 IFC | IFC2X3 | 1 |
Literature
Lichtgitter Manual
