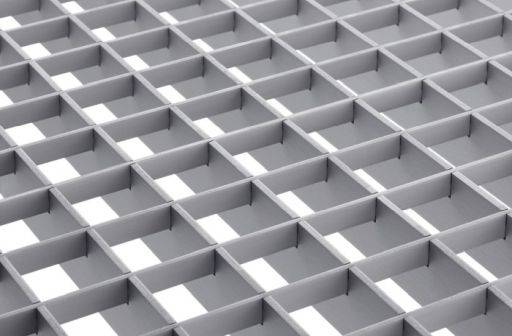

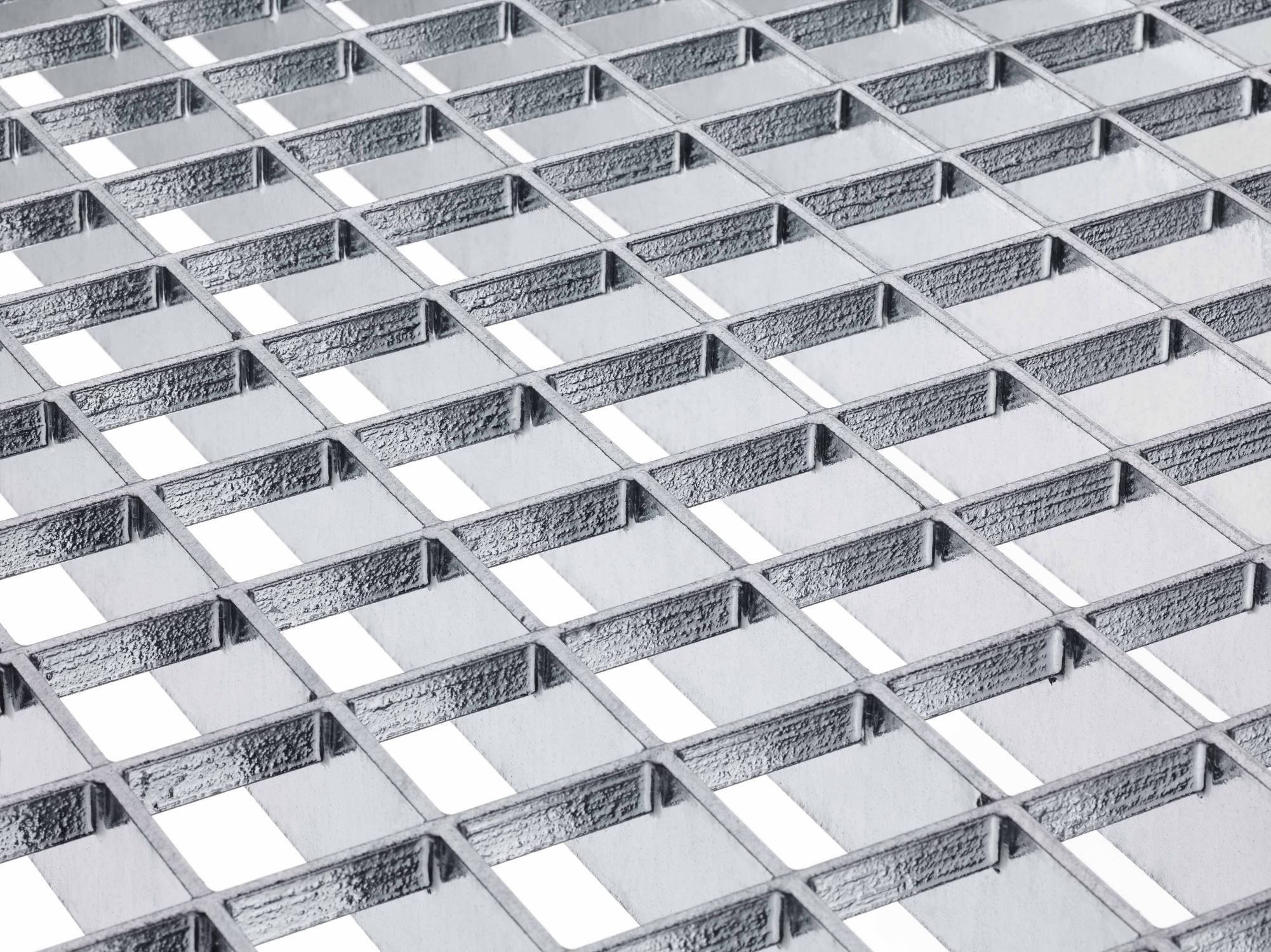

Lichtgitter Pressed-In Grating - Pressure Locked Steel Grating
Verified by manufacturer 28 days ago
Pressed-in grating.
Application
Suitable for use in the following:
- Platforms and walkways for pedestrian traffic in both the steel construction and civil engineering industries.
- Narrow mesh pressed in gratings are used in heavy pedestrian traffic areas and as entrance mats.
- Serrated gratings available for slip resistant applications.
- Heavy duty gratings available for vehicle applications.
Description
Pressed-in gratings.
Features and benefits:
- Available in mild steel, stainless steel grade 304/316 and aluminium.
- The overall size of the grating object may be controlled parametrically to adjust to user needs.
- Suited to all types of architectural applications.
General information
Color | Silver |
Finish | Galvanized |
Material | Steel Guidance for specification option: Mild steel. Aluminium Stainless steel Guidance for specification option: Grade 304/ 316. |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass |
Specification data - Carbon steel open bar metal gratings
Size | |
Length x width | 1000 x 1000 mm. |
Depth | 20 mm. |
Open hole size (maximum) | 31 x 31 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Germany |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 1 |
