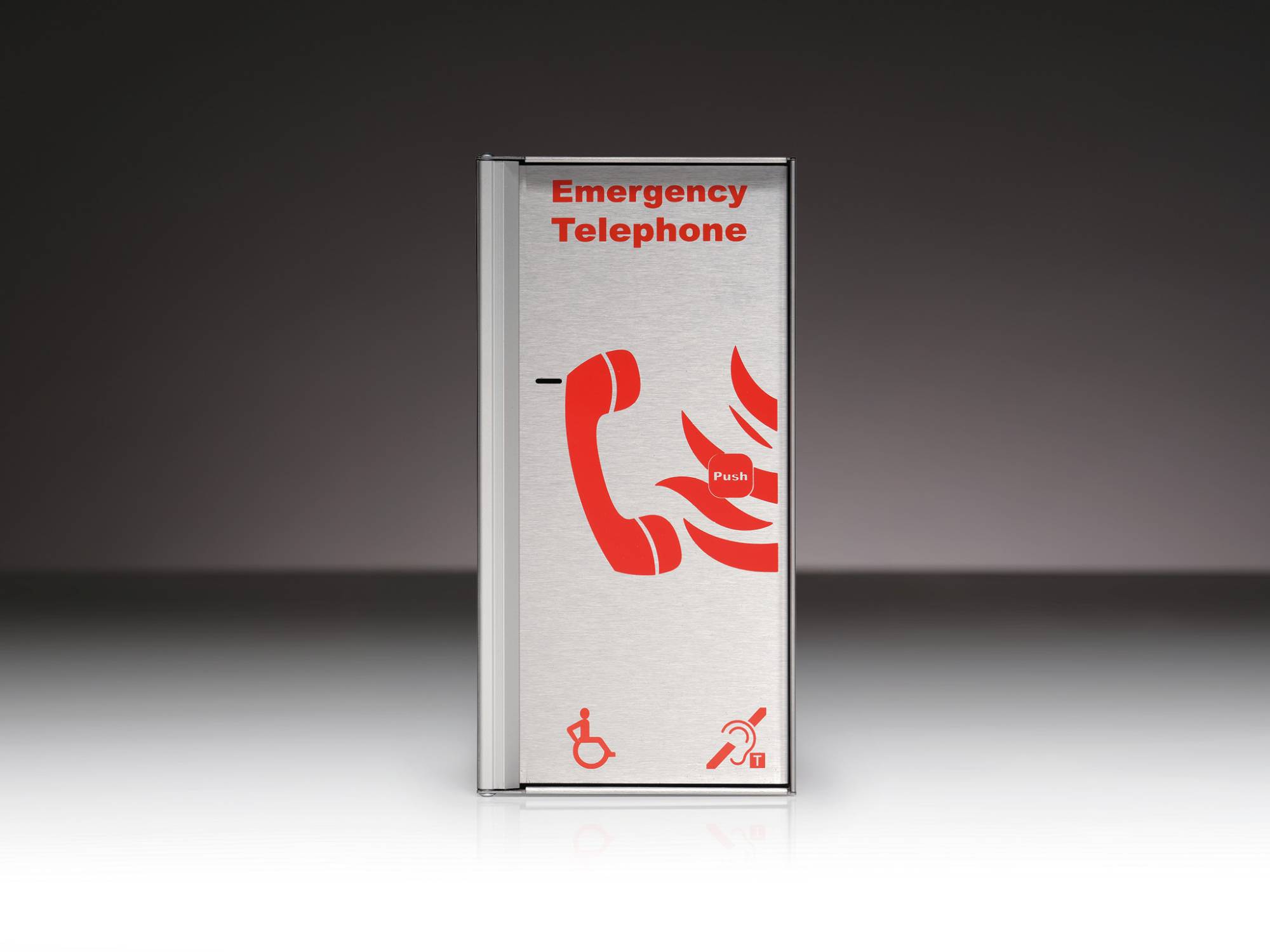

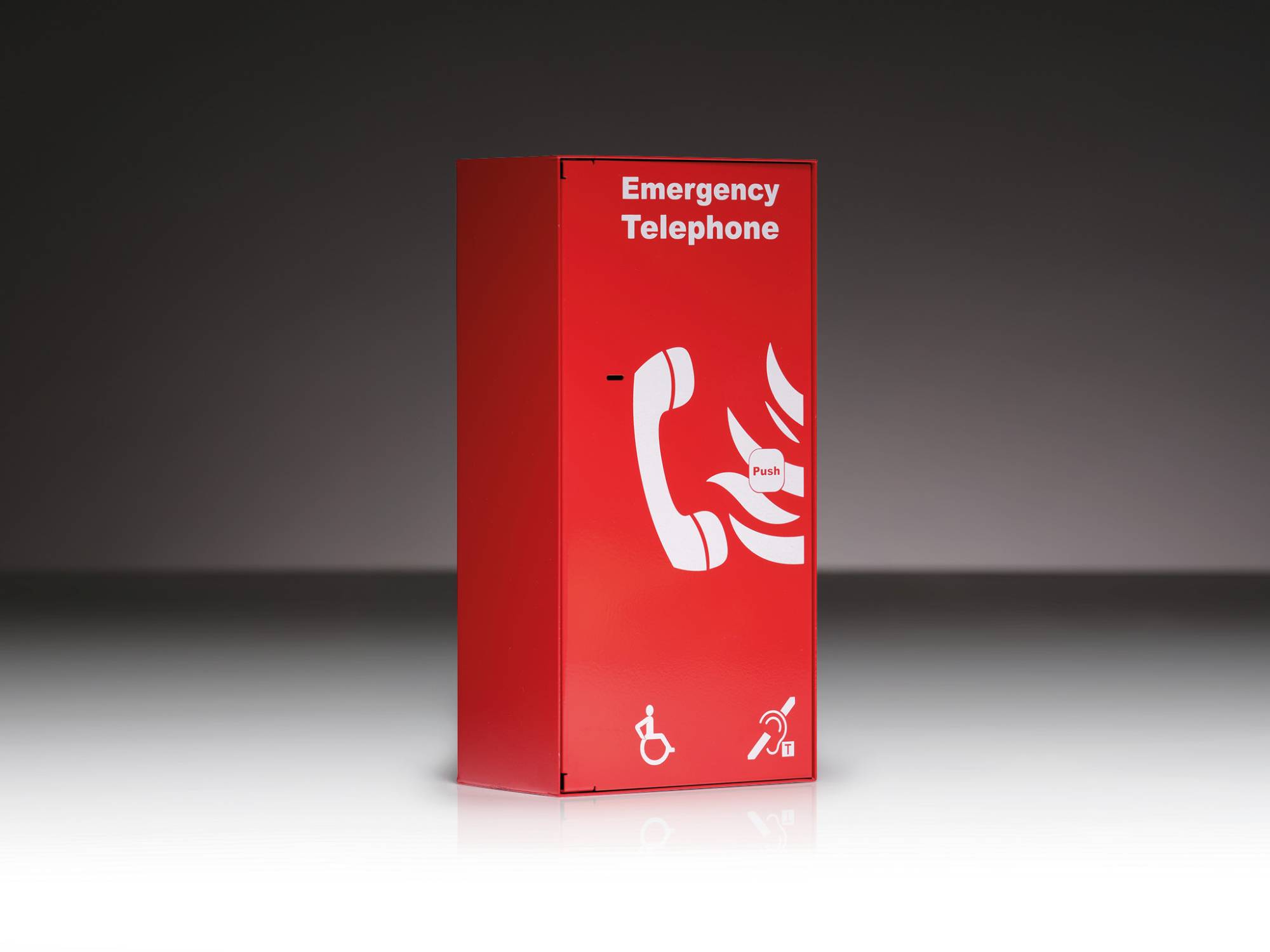

Lexicomm EVCS Type A Fire Telephone - Emergency voice communication system
Verified by manufacturer 21 days ago
Type A fire telephone.
Application
- Suitable for use by the fire services in high rise buildings, typically located in fire fighting lift lobbies.
- Can also be used by fire wardens or by stewards and marshals in sports venues.
- Up to 500 m distance is permitted between the Master Station and an outstation.
Description
Type A fire telephone primarily for use by the fire services to provide clear communications between the control point and the fire fighters, as radio systems may not work.
Features and benefits:
- Status LED.
- Compact design.
- High volume ringer.
- Flush bezel available.
- Ruggedized handset.
- Magnetic push catch.
- Full duplex operation.
- Surface or semi-flush mounted.
- Telecoil for hearing impaired users.
- Handset is fully monitored and robustly constructed.
General information
Color | Silver Red |
Finish | Brushed |
Material | Stainless steel Guidance for specification option: Stainless steel. |
Shape | Rectangle |
Length | 105 mm |
Width | 150 mm |
Height | 300 mm |
Warranty description | 18 months |
Uniclass | |
CAWS | W53/335 Disabled refuge outstations |
SKU Code | ViLX-OSA |
Product range |
Specification data - Disabled refuge outstations
Classification data | |
Standard | In accordance with BS 5839-9, Type A, EN 55035,EN 55032, EN IEC 62368-1, BS 9999, E N60118-4 |
Mounting type | Surface-mounted. |
Material | Steel (CR4). |
Colour | Painted RAL3001. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Stainless steel Guidance for specification option: Stainless steel. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature

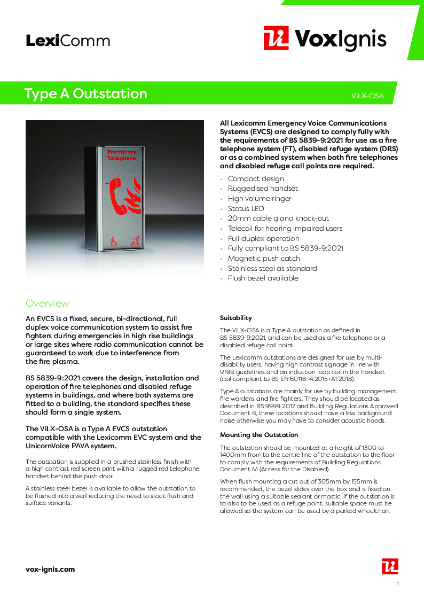

ViLX-OSA Datasheet

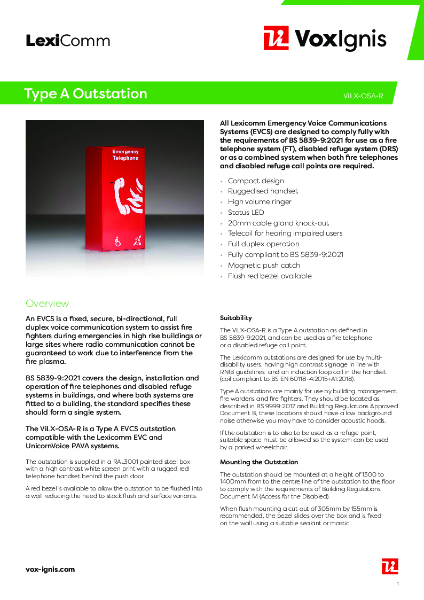

ViLX-OSA-R Datasheet
Case studies
3 Sheldon Square
King Power Stadium
