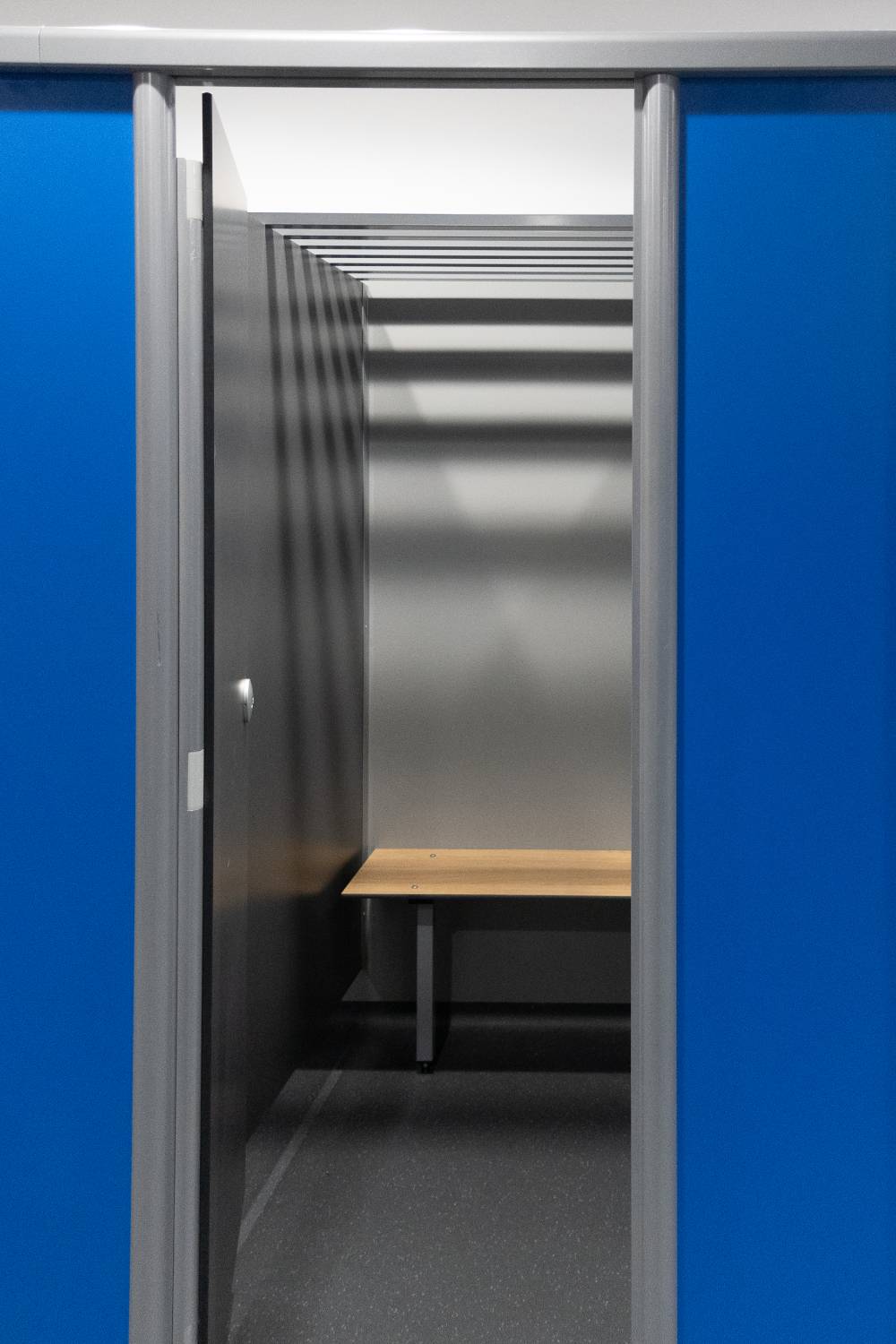

Freestanding fully framed cubicle system is durable and stable.
Application
- For WC, changing room and shower room applications.
- Can be installed in demanding, wet and humid environments.

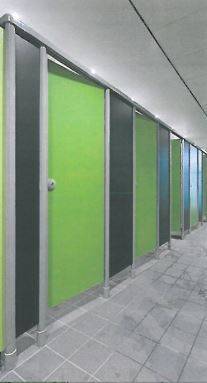

Description
Durable and stable, fully framed, freestanding cubicles. They are available with a large colour choice and with no visible fixings, they are aesthetically and visually appealing. Manufactured using solid grade high-pressure laminate, their non-porous fabrication offers a hardwearing, durable and aesthetic solution for cubicle and locker applications with excellent resistance to impact, scratches and abrasion.
Features and benefits:
- Fully framed system.
- Tamper-proof design with no exposed mechanical fixings.
- Impact, scratch and abrasion-resistant.
- Door frame with anti-finger trap system.
- Full-length channels attach partition and pilaster panels to walls.
- Supplied with a pivoting foot for uneven ground levels.
- Freestanding design in a range of colours.
- Full integration with Helmsman zinc plated metal framed IPS panels.
General information
Color | Beige Black Blue Brown Cream Manufacturer guidanceSelect from manufacturers laminate colour range. |
Finish | Anodized Powder-coated Manufacturer guidanceHelmsman powder colour selection or Satin Silver Anodised. Hardware colour can match or contrast. |
Material | Laminate |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Guidance for specification option: Other options available, consult with the manufacturer. |
Uniclass | |
CAWS | K32/112 Fully framed panel cubicles K32/10 Panel cubicles |
Specification data - Fully-framed panel cubicle systems
System performance | Design submittals. |
Panels | Solid grade laminate boards.Guidance for specification option: As standard. Solid phenolic grade laminate, 12 mm thick, black core. |
Panel supports | Aluminium frames. |
Doors | Solid grade laminate doors. |
Hardware | Door privacy indicator bolts.Guidance for specification option: Robust easy action door latch with emergency release facility. Large visible occupied indicator. Turn action ensures trouble free operation. Discreet security through fixings. Colour coordinated face and back plate. Vandal resistant design. Door hinges.Guidance for specification option: Each door is support by three 'Hewi' hinges mechanically fixed to the hinge side door frame extrusion. The one sprung and two un-sprung hinges can be adjusted so the door can be allowed to stay open, closed, or ajar when not in use. Hinges can be fitted so doors open outwards. Pedestal leg.Guidance for specification option: Heavy-duty,150 mm high, providing 45 mm adjustment to accommodate uneven floors. Concealed floor fixings constructed from aluminium. |
System accessories | None.Anti-peep rails.Baby change.Modesty panels.Wall panels.Special fittings for disabled and family usage.Guidance for specification option: Consult manufacturer and insert requirements. Special order.Guidance for specification option: Insert requirements. Coat hook.Guidance for specification option: Single aluminium hat and coat hook on inside of door. Duct IPS system. |
Design | As drawing. Guidance for specification option: Insert reference. |
Overall height | 1950 mm. Guidance for specification option: Standard, 150 mm ground clearance. Special order. Guidance for specification option: Insert requirement. |
Colour | Guidance for specification option: Panel colour. Insert requirement from Helmsman solid grade laminate ranges. Manufacturer guidanceSelect from the manufacturer’s laminate colour range. |
Door colour | Guidance for specification option: Insert requirement from Helmsman solid grade laminate ranges. |
Frame/ hardware | Satin silver anodized. Helmsman powder colour selection. Manufacturer guidanceHelmsman powder colour selection or Satin Silver Anodised. Hardware colour can match or contrast. |
DDA/ Ambulant cubicle provision | DDA compliant handle set with handle/ grab rails. Aluminium door hook attached to inside face of the door. Two aluminium door hooks to DDA compliant cubicles. Four aluminium door hooks for family special cubicle. Special latch keep for DDA compliant outward opening door. |
Accessories | Anti-peep rails. Guidance for specification option: Option for extended panels for anti camera purposes. Adjustable floor fixing feet from turned aluminium billet with height adjustable bolt. Suspended floating leg at the back. Guidance for specification option: A floating appearance as an optional extra with a suspended floating leg. |
Edge profile | Safety corners, all edges smoothed and radiused. |
Panel fixings | Clear Dow Corning clear silicon sealant. |
Hinges | Nylon covered heavy duty stainless steel/brass hinges. Guidance for specification option: Three nylon covered heavy duty stainless steel/brass hinges per door. One hinge sprung for opening/closing door. Door hinges includes anti-finger trap and anti-lift design. Hinges can be fitted so doors open outwards. |
Door furniture | Polyurethane door buffers. Guidance for specification option: Inset into latch side of door frame leaf. |
Bolts | Turn action. Guidance for specification option: Turn action ensures trouble free operation. Discreet security through fixings. Colour coordinated face and back plate. Vandal resistant design. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Laminate |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

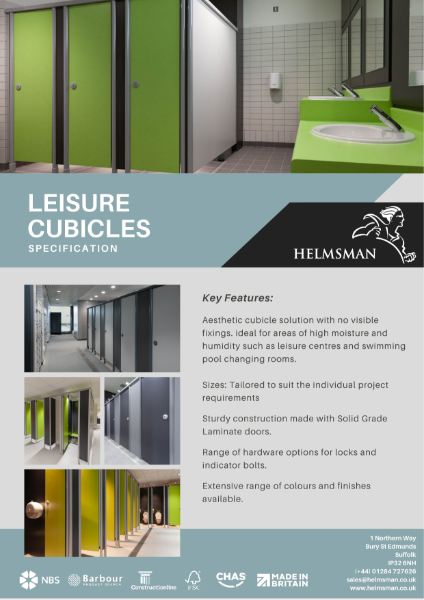

Leisure Cubicles
