Legacy Slimline Window - Aluminium window

Verified by manufacturer 17 hours ago

Comar Architectural Aluminium Systems Third party certifications:
  • CAB membership

    Certificate type

  • BSI Kitemark

    BSI Kitemark

    Certificate type

  • BM Trada

    BM Trada

    Certificate type

  • Secured By Design

    Secured By Design

    Certificate type

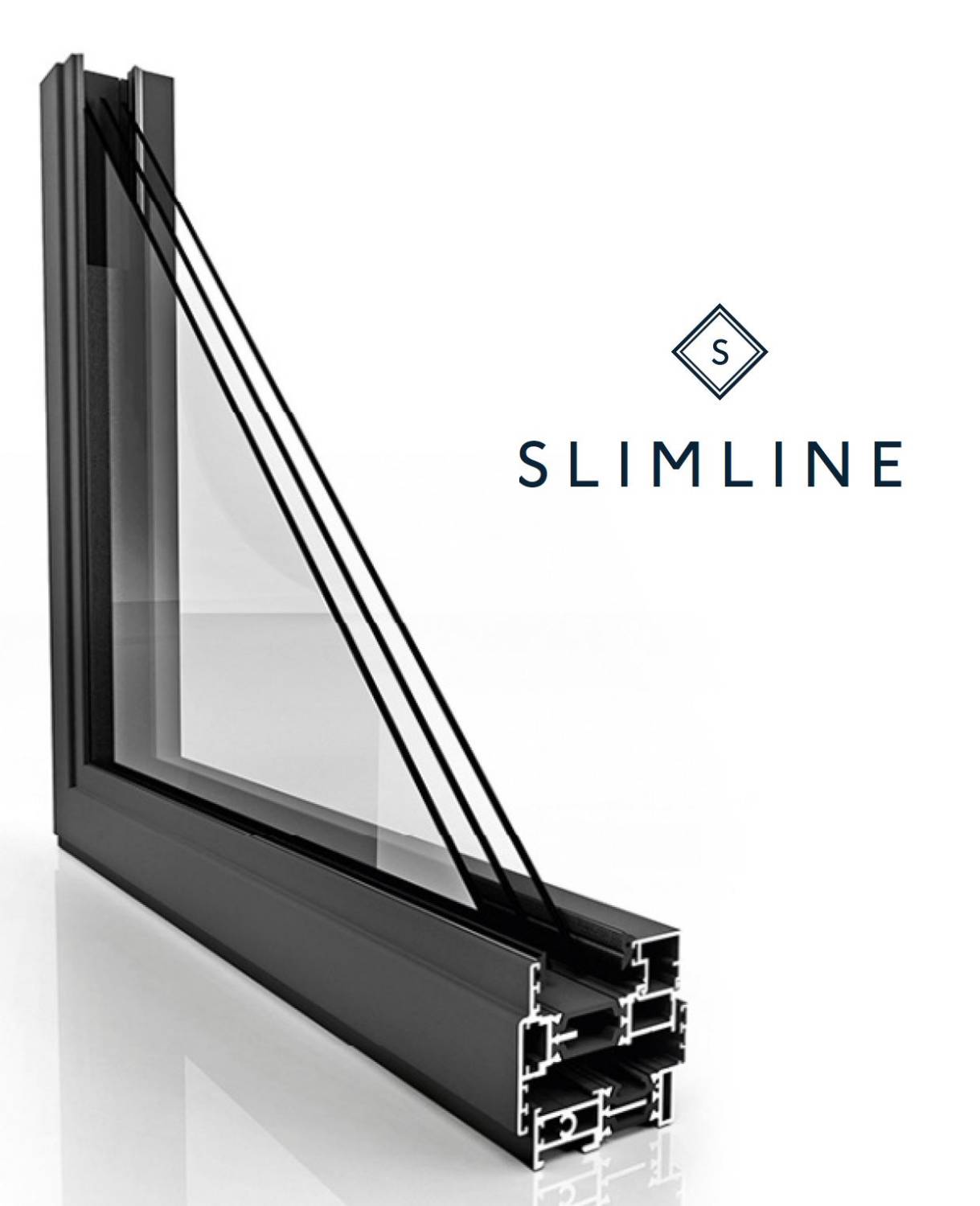

Ultra slim sightline aluminium window system.

Jump to:
+44 (0)20 8685 9685 Website

Application

Residential and light commercial applications.

Description

A window suite that celebrates the heritage of the art deco period, with a modern twist. The steel-look Slimline Casement window replicates the appearance of the traditional steel window, whilst offering all the benefits of a modern aluminium solution – thermal performance, durability and affordability.


Ultra slim sightlines, and a range of beading options all add to the classic design of this attractive windows. available as side, top hung casement and French casement.


Making the Slimline Casement Windows the ideal replacement for steel windows in a heritage building, or a perfect choice for more modern homes that require an elegant and authentic aesthetic.


Features and benefits:

  • Ultra slim sightlines provide superior aesthetics, without compromising on performance.
  • A choice of simple fabrication methods provide easier and quicker fabrication.
  • Superior strength and weather performance.
  • Made from 70% recycled aluminium and 100% recyclable at end of life.
  • Internally and externally beaded options available.
  • Compliance with PAS 24:2022 provides additional reassurance to the homeowner in the event of an attempt at burglary.
  • U-values as low as 1.4 W/m²K.
  • Traditional design styling.
  • Double and triple glazed options available.
  • Sightlines from 57 mm casement.

General information

Color

Finish

Anodized

Powder-coated

Material

Aluminium

Guidance for specification option:

Aluminium Alloy 6063TF or TB, to BS 12020 & BS EN 755.

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Guidance for specification option:

  • Aluminium extrusions.
  • Assembly Sealants.
  • Fixing Brackets.
  • Fixing Screws.
  • Inner Gasket.
  • Outer Gasket.
  • Thermal Break.
  • Weatherseals.

30 year

Guidance for specification option:

  • Anodized finish.

25 year

Guidance for specification option:

  • Powder-coated (matt).

Other

Guidance for specification option:

  • Paint joint / seal extrusions - warranty to be agreed.

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Dimensions and configurations

Guidance for specification option:

Consult manufacturer and insert requirements.

Product performance

-

Weather performance

-

UK exposure category

To BS 6375-1, 2400 Pa.

Air permeability

To BS 6375-1, Class 4.

Guidance for specification option:

600 Pa.

Watertightness

To BS 6375-1, Class E1050.

Guidance for specification option:

1050 Pa.

Resistance to wind load

To BS 6375-1, 2400 Pa.

Durability

-

Operation and strength characteristics

To BS 6375-2.

Safety

-

Security level

Security tested PAS 24:2022.

Thermal

-

Whole window U-value

1.4 W/m²K.

Guidance for specification option:

U-values as low as 1.4 W/m²K.

Manufacturer guidance

U Values and WER's meet current Building Regulations.

Frame

-

Profile

Depth: 54 mm.

Depth: 75 mm.

Finish as delivered

-

Coating

Anodized to BS EN 12373-1:2001 or BS EN 3987.

Polyester powder-coating to BS 6496.

Colour

Silver anodized.

Bronze anodized.

Black anodized.

Black, RAL 9005.

Manufacturer guidance

Other RAL colours available on short lead times.

Dual colour options are available.

All finishes by the Parkside Group

Film thickness (minimum)

60 micrometres.

Ventilator

None.

DucoPlus 45.

DucoPlus 60.

DucoTon 80 SR.

DucoKlep 80 SR.

DucoFlat 80 SR.

GlasMax SR.

Glazing or infill

-

Standard

To BS 6262-1:2005 and BS 6375-1:2004.

Requirements

Guidance for specification option:

Capable of housing double and triple glazed unit options.

Hardware

Multi-point locking with Axim handles.

Guidance for specification option:

Handle colour - RAL 7016, silver, black, white, polished chrome or stainless steel. Insert requirements.

Operation

-

Type

Manual.

Fixing features

Guidance for specification option:

Consult with Comar for recommendations and details.

FrameMaterial

Extruded aluminium profiles, aluminium alloy 6063 T5 or T6, to BS EN 12020-2:2001 and BS 755-9:2001.

Opening lights

French casement.

Side hung.

Guidance for specification option:

Glass weight for opening windows: 40 kg.

Top hung.

Guidance for specification option:

Glass weight for opening windows: 50 kg.

Manufacturer guidance

Consult manufacturer for further details.

  • Minimum width - 350 mm.
  • Maximum height - 1470 mm.

Reaction to fire

To BS EN 13501-1, A1 (anodized); A2-s1-d0 (polyester powder-coated).

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Guidance for specification option:

Aluminium Alloy 6063TF or TB, to BS 12020 & BS EN 755.

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Third party certifications

CAB membership

CAB membership

Council for Aluminium in Building

BSI Kitemark

BSI Kitemark

Kitemark BS4873/PAS 24 Enhanced Security Windows

BM Trada

BM Trada

Q-Mark BM-Trada Enhanced-Security Windows - PAS-242016BS-4873

Secured By Design

Secured By Design

Secured By Design

Literature

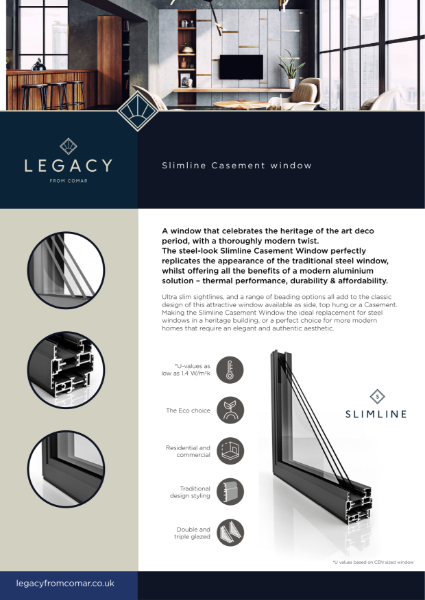

Slimline Window datasheet

Slimline Window datasheet

Legacy Slimline Window

Legacy Slimline Window
