Description

Cast aluminium Ogee gutters, designed for direct fix or fixing with fascia brackets at 600 mm centres maximum. A range of fittings, inclusive of rafter brackets, are also available and finishes include mill finish or polyester powder coated to one side only.

General information
Size

100 x 75 mm

125 x 100 mm

150 x 100 mm

As drawing ___

Uniclass 2015
Aluminium eaves gutters (Pr_65_50_35_06)Primary
Specification data - Aluminium eaves gutters
Product Reference

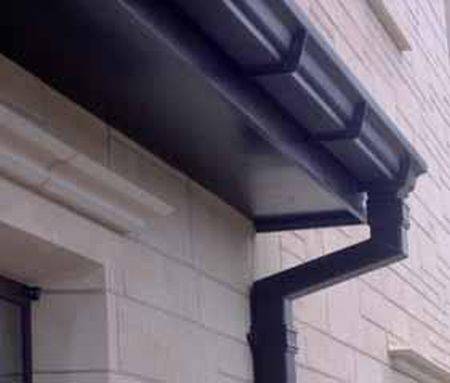

Legacy Moulded No46 Ogee Cast Aluminium Gutters

Size

100 x 75 mm

125 x 100 mm

150 x 100 mm

As drawing ___

Finish -
FinishType

Mill

Polyester powder coating

Accessories

As drawing ___

Standard product features

Legacy gutters and fittings to BS 2997 and BS EN 612 using 6063 T6 grade extruded aluminium in accordance with BS 1474.

Legacy gutters have loose internal union connectors and ARP Ltd recommends the use of Arbosil 1096 Low Modulus Silicone sealant to seal each side of the joint.

Additional sizes, profiles, faceted and radius gutters can be supplied to order, whilst bespoke items can be manufactured to customers own specifications.

Product Options

Size (1.8 m long, left hand systems, PPC both sides):

100 x 75 mm:

  • 43CMOG1.8.

125 x 100 mm:

  • 54CMOG1.8.

Gutter profiles (1.8 m long, right hand system, PPC both sides):

150 x 100 mm:

  • 64CMOG1.8.

Angles:

100 mm:

  • 43CMOAI90 - 90º internal angle.
  • 43CMOAX90 - 90º external angle.
  • 43CMOAI135 - 135º internal angle.
  • 43CMOAX135 - 135º external angle.
  • 43CMOAN - non-standard angle.

125 mm:

  • 54CMOAI90 - 90º internal angle.
  • 54CMOAX90 - 90º external angle.
  • 54CMOAI135 - 135º internal angle.
  • 54CMOAX135 - 135º external angle.
  • 54CMOAN - non-standard angle.

150 mm:

  • 64CMOAI90 - 90º internal angle.
  • 64CMOAX90 - 90º external angle.
  • 64CMOAI135 - 135º internal angle.
  • 64CMOAX135 - 135º external angle.
  • 64CMOAN - non-standard angle.

Outlets:

100 mm:

  • 43CMOO2R - 63 mm diameter.
  • 43CMOO3R - 76 mm diameter.
  • 43CMOO3S - 76 mm square.
  • 43CMOO43 - 101 x 76 mm rectangular.

125 mm:

  • 54CMOO2R - 63 mm diameter.
  • 54CMOO3R - 76 mm diameter.
  • 54CMOO43 - 101 x 76 mm rectangular.

150 mm:

  • 64CMOO2R - 63 mm diameter.
  • 64CMOO3R - 76 mm diameter.
  • 64CMOO4R - 101 mm diameter.
  • 64CMOO3S - 76 mm square.
  • 64CMOO4S - 101 mm square.
  • 64CMOO43 - 101 x 76 mm rectangular.

Stopends:

  • 43CMOSEI - internal to suit 100 mm gutter.
  • 43CMOSEX - external to suit 100 mm gutter.
  • 54CMOSEI - internal to suit 125 mm gutter.
  • 54CMOSEX - external to suit 125 mm gutter.
  • 64CMOSEI - internal to suit 150 mm gutter.
  • 64CMOSEX - external to suit 150 mm gutter.

Union connectors:

  • 43CMOUC - to suit 100 mm gutter.
  • 54CMOUC - to suit 125 mm gutter.
  • 64CMOUC - to suit 150 mm gutter.
