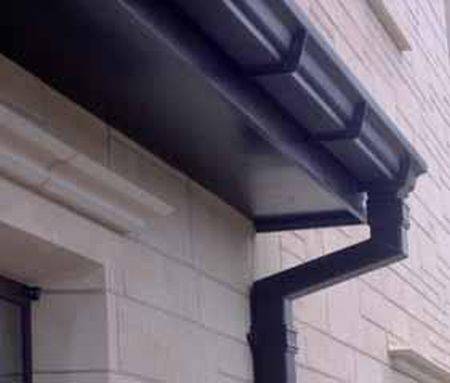

Legacy Moulded No46 Ogee Cast Aluminium Gutters

Legacy gutters and fittings to BS 2997 and BS EN 612 using 6063 T6 grade extruded aluminium in accordance with BS 1474.

Legacy gutters have loose internal union connectors and ARP Ltd recommends the use of Arbosil 1096 Low Modulus Silicone sealant to seal each side of the joint.

Additional sizes, profiles, faceted and radius gutters can be supplied to order, whilst bespoke items can be manufactured to customers own specifications.

Size (1.8 m long, left hand systems, PPC both sides):

100 x 75 mm:

• 43CMOG1.8.

125 x 100 mm:

• 54CMOG1.8.

Gutter profiles (1.8 m long, right hand system, PPC both sides):

150 x 100 mm:

• 64CMOG1.8.

Angles:

100 mm:

• 43CMOAI90 - 90º internal angle.

• 43CMOAX90 - 90º external angle.

• 43CMOAI135 - 135º internal angle.

• 43CMOAX135 - 135º external angle.

• 43CMOAN - non-standard angle.

125 mm:

• 54CMOAI90 - 90º internal angle.

• 54CMOAX90 - 90º external angle.

• 54CMOAI135 - 135º internal angle.

• 54CMOAX135 - 135º external angle.

• 54CMOAN - non-standard angle.

150 mm:

• 64CMOAI90 - 90º internal angle.

• 64CMOAX90 - 90º external angle.

• 64CMOAI135 - 135º internal angle.

• 64CMOAX135 - 135º external angle.

• 64CMOAN - non-standard angle.

Outlets:

100 mm:

• 43CMOO2R - 63 mm diameter.

• 43CMOO3R - 76 mm diameter.

• 43CMOO3S - 76 mm square.

• 43CMOO43 - 101 x 76 mm rectangular.

125 mm:

• 54CMOO2R - 63 mm diameter.

• 54CMOO3R - 76 mm diameter.

• 54CMOO43 - 101 x 76 mm rectangular.

150 mm:

• 64CMOO2R - 63 mm diameter.

• 64CMOO3R - 76 mm diameter.

• 64CMOO4R - 101 mm diameter.

• 64CMOO3S - 76 mm square.

• 64CMOO4S - 101 mm square.

• 64CMOO43 - 101 x 76 mm rectangular.

Stopends:

• 43CMOSEI - internal to suit 100 mm gutter.

• 43CMOSEX - external to suit 100 mm gutter.

• 54CMOSEI - internal to suit 125 mm gutter.

• 54CMOSEX - external to suit 125 mm gutter.

• 64CMOSEI - internal to suit 150 mm gutter.

• 64CMOSEX - external to suit 150 mm gutter.

Union connectors:

• 43CMOUC - to suit 100 mm gutter.

• 54CMOUC - to suit 125 mm gutter.

• 64CMOUC - to suit 150 mm gutter.
