Ledro - Freestanding Bath, 180 L capacity.
Verified by manufacturer 2 months ago
QUARRYCAST™ White Gloss LED-N-SW-IO
QUARRYCAST™ White Gloss LED-N-SW-IO
Freestanding bath.
Application
Luxury freestanding bath suitable for domestic and hospitality settings.
Description
Named after Lake Ledro in Italy, the new Ledro bath reduces water usage without sacrificing design or a luxurious bathing experience. The design team have used their expert understanding of ergonomics and the material capability of QUARRYCAST™ to create Ledro; a bath that doesn't compromise in comfort, but has a low water capacity.
Features and benefits:
- Made with QUARRYCAST™ a unique blend of Volcanic Limestone™ and high-performance resins.
- Delivers unrivalled strength, durability, and beauty.
- Available in a gloss or matt finish.
- Available in a range of RAL colours.
- Uses waste kit K-15.
General information
Color | White Other |
Finish | Gloss Matt |
Material | Limestone Stone |
Shape | Oval |
Length | 1670 mm |
Width | 705 mm |
Height | 738 mm |
Warranty description | Eight year Guidance for specification option: For commercial use. 25 year Guidance for specification option: For residential use. |
Uniclass | |
CAWS | N13/355 Baths N13/35 Baths |
Specification data - Baths
Form | Free-standing. |
Materials | QUARRYCAST™ Volcanic Limestone™. |
Colour | White. |
Size | 1670 x 705 mm. |
Volume to overflow (maximum) | 180 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes.Guidance for specification option: Tap holes cannot be drilled for this product. |
Overflow | No overflow hole.Guidance for specification option: Drill as required. |
Waste | Bottom waste outlet. |
Material Finish | QUARRYCAST™ white (gloss). |
Dimensions – height | 738 mm. |
Weight | 77.8 kg. |
Recommended discharge pipe | Not required. K-15. Guidance for specification option: Recommended waste. |
Sustainability data
Material | Limestone Stone |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

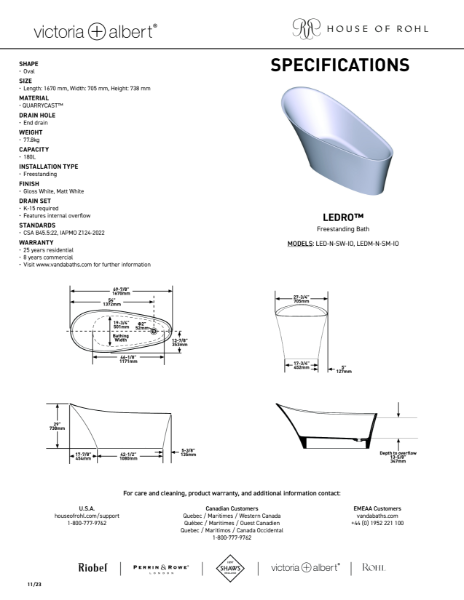

LEDRO™ Specification
