Gradus

Illuminated indicators for seating rows.

Jump to:
+44 (0)1625 428922 Website

Description

Features and benefits:

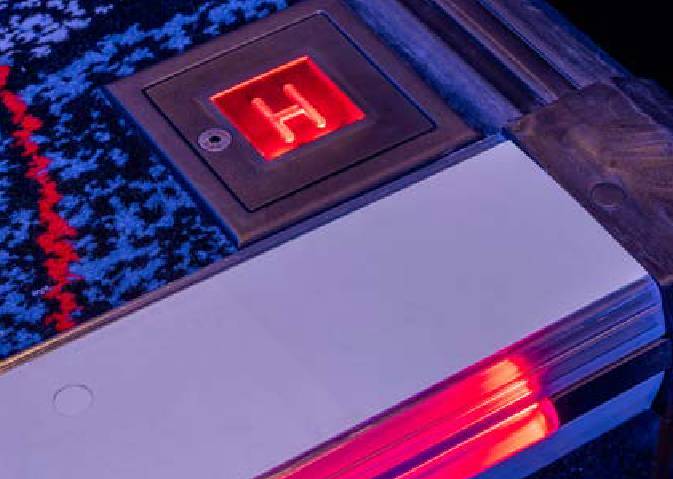

  • Seating rows in auditoria can be identified in two ways using Gradus LED lighting systems.
  • Seat row indicators are used to identify the location of seating rows, to provide illumination for guidance (e.g. by emergency exits) or to illuminate the floor for safe movement around auditoria when the main lighting is dimmed.
  • Floor profiles are available for step mounting as part of the illuminated stair edging system, or LED seat row indicators can be installed into seating at the end of rows.

General information

Color

Black

Gold

Clear

Material

PVC-U

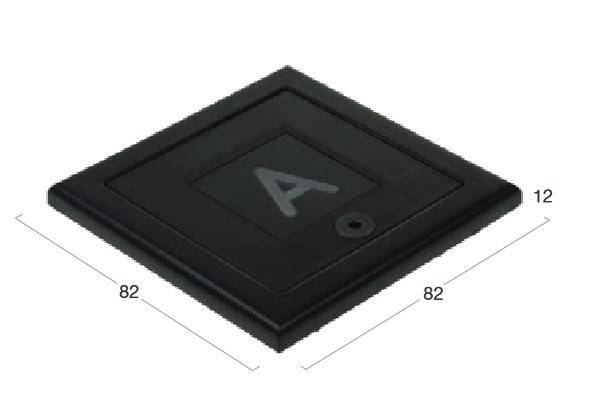

Shape

Square

Length

82 mm

Width

82 mm

Height

12 mm

Uniclass

Pr_35_90_31_29 Floor cover stripsPrimary

CAWS

V90/510 General purpose luminaires

V90/510 Luminaires

Specification data - Floor cover strips

Profile

Seat Row Indicator.

Guidance for specification option:

60 mm diameter, 20 mm deep.

Step Row Indicator.

Guidance for specification option:

82 m high, 82 mm wide, 12 mm deep.

Material

Aluminium.

PVC-U.

Finish

Anodized.

Colour

Anodized clear

Guidance for specification option:

Seat Row Indicator only.

Anodized black

Guidance for specification option:

Seat Row Indicator only.

Anodized gold

Guidance for specification option:

Seat Row Indicator only.

Not applicable

Guidance for specification option:

Step Row Indicator only.

LED

Amber.

Guidance for specification option:

Step Row Indicator only.

Blue.

Green.

Red.

White.

Show more

Voltage

12 V.

Fixing

Mechanical and adhesive: consult Gradus for further guidance.
