LED Architectural Lighting
Verified by manufacturer 1 month ago
ALS/TS – Thin Surface profile
ALS/TS – Thin Surface profile
LED Architectural Lighting that provides a decorative illumination solution. Comprising 11 profiles that feature Gradus Impression LED Tapes in different colours or temperatures.
Application
Gradus LED Architectural Lighting profiles are suitable for a wide variety of applications, spanning across multiple sectors, including:

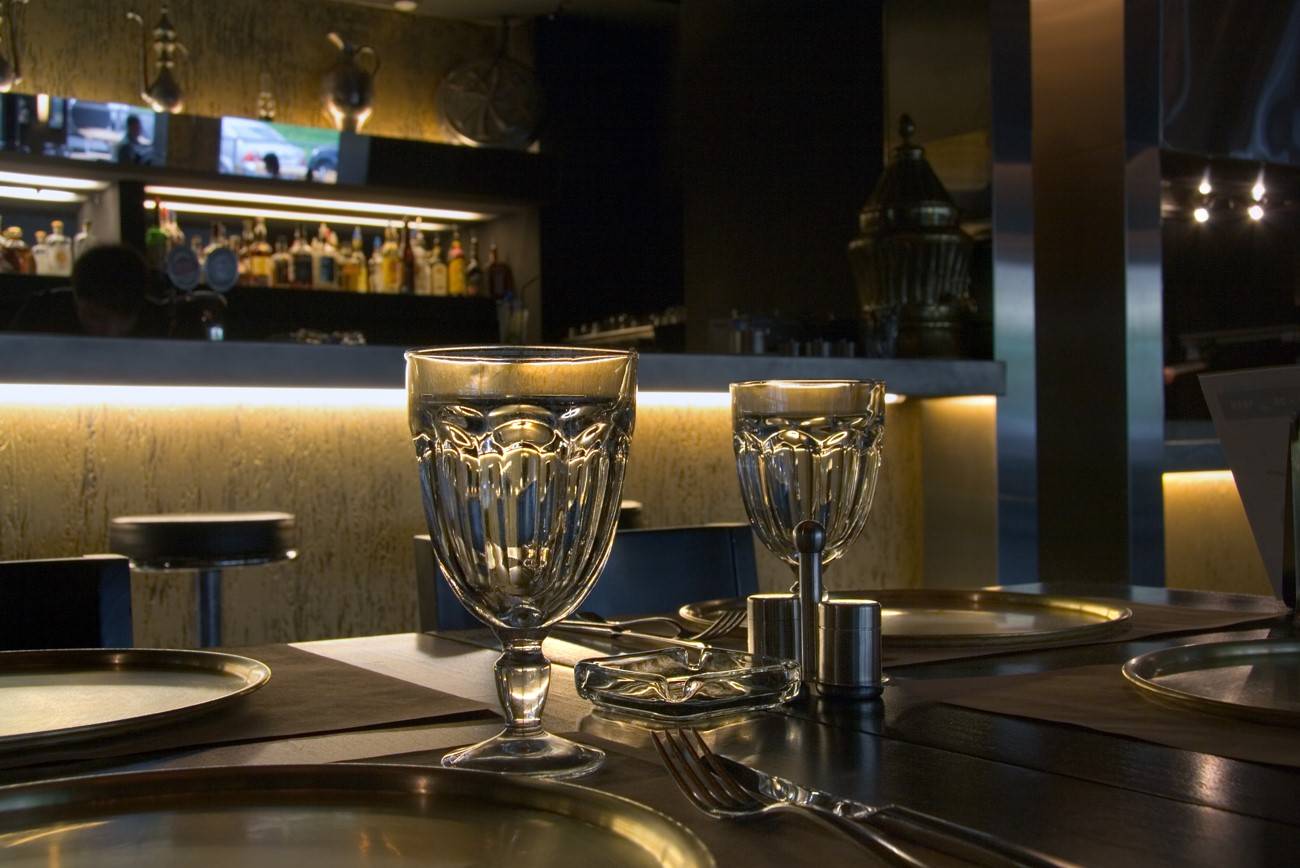

- Hospitality: Hotels, Bars, Restaurants, Nightclubs & Lounges
- Leisure: Theatres, Museums, Galleries & Casinos
- Cinemas: Multi-Screen, Boutique & Home
- Education: Lecture Theatres, Breakout Areas, Canteens & Libraries
- Retail: Boutique Shops, Shopping Centres & Food Courts
- Health & Fitness: Gyms, Fitness Studios & Health Spa's
- Residential: Luxury Developments
- Healthcare: Private Clinics & Private Hospitals.
Description
Visually enhances a space:
- Can be easily incorporated into design schemes to provide illumination.
- Provides the ability to change or affect the mood within a space.
- Aids navigation routes and walkways.
- Highlights focal points.
- Creates a subtle glow.
Profiles that create practical solutions:
- Provides a more secure solution to adhering LED tapes directly onto surfaces.
- Helps dissipate heat, extending the Gradus Impression LED tape's life, ensuring optimum performance.
- Protects the LED tape against dirt and damage.
- Easier to clean & maintain.
Offers increased functionality:
- Gradus LED Impression tapes are available single colours, dual-white colours, RGB or RGBW colour changing.
- Control equipment also available for managing multiple areas/zones, colour changing, or dimming.

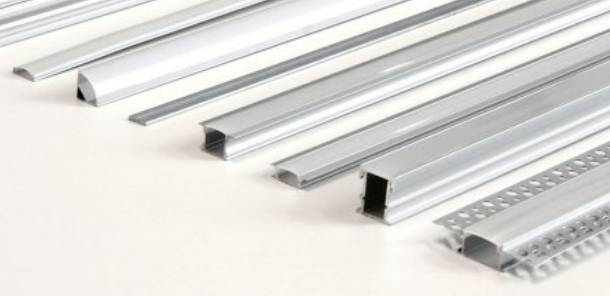

Profile Options:
- ALS/TS Thin Surface - Aluminium base with Polycarbonate cover (semi-diffused) and Gradus Impression LED Lighting. For surface mounting to walls, ceilings, units, cabinets etc.
- ALS/DS Deep Surface - Aluminium base with Polycarbonate cover (semi-diffused) and Gradus Impression LED Lighting. For surface mounting to walls and ceilings in highly visible locations.
- ALS/OL Optic Lens - Aluminium base with Polycarbonate cover (clear) and Gradus Impression LED Lighting. For surface mounting to create a wall washing lighting effect.
- ALS/B Bendable - Aluminium base with Polycarbonate cover (semi-diffused) and Gradus Impression LED Lighting. For surface mounting to walls, ceilings, or within coves. Bendable (300mm minimum bend radius).
- ALS/FC Corner - Aluminium base with Polycarbonate cover (semi-diffused) and Gradus Impression LED Lighting. For surface mounting to 90° angle corners on walls and ceilings.
- ALS/FB Flat Base - Aluminium base with Polycarbonate cover (semi-diffused) and Gradus Impression LED Lighting. For surface mounting to locations that are not visible.
- ALS/SR Shallow Recessed - Aluminium base with Polycarbonate cover (semi-diffused) and Gradus Impression LED Lighting. For shallow recesses within walls, ceilings, units, furniture etc.
- ALS/DR Deep Recessed - Aluminium base with Polycarbonate cover (semi-diffused) and Gradus Impression LED Lighting. For deeper recesses within walls, ceilings, units, furniture etc.
- ALS/WO Walk Over - Aluminium base with Polycarbonate cover (semi-diffused) and Gradus Impression LED Lighting. For use in floor recesses.
- ALS/FR Flush Recessed - Aluminium base with Polycarbonate cover (semi-diffused) and Gradus Impression LED Lighting. For projects where the profile is to be plastered into a wall or other surface.
- DLA45 U-Section - Aluminium base with Polycarbonate cover (semi-diffused) and Gradus Impression LED Lighting. For surface mounting to locations that are not visible.
General information
Color | White Red Green Blue Pink |
Material | Aluminium Polycarbonate |
Length | 1000 mm Guidance for specification option: All profiles excluding ALS/FR Flush Recessed and DLA45 U-Section. 2000 mm Guidance for specification option: All profiles excluding ALS/FB Flat Base and DLA45 U-Section. 3100 mm Guidance for specification option: DLA45 only. |
Width | Manufacturer guidancePlease see individual variants for details. |
Height | Manufacturer guidancePlease see individual variants for details. |
Uniclass | |
CAWS | V90/115 Low-voltage electrical installation N10/770 Trims N10/910 General |
Specification data - Edge trims
Material | Aluminium.Manufacturer guidanceBase: |
Finish | Polycarbonate cover. |
Profile | Thin surface profile. |
Size | 17.5 mm.Manufacturer guidanceWidth: |
Fixing | Screws.Guidance for specification option: Mechanical (screw) fix – as per manufacturers instructions. |
Mounting | Surface mounted. |
Depth | 7 mm. |
Ingress protection (IP) rating | IP22. |
Ancillaries | End caps and fixing clips. Guidance for specification option: Supplied. |
Cover | Semi-diffused cover. |
LED | 5W Gradus Impression 24v – Whites (available in 2700k, 3000k, 4000k or 6000k). 5W Gradus Impression 24v - Single Colours (available in Red, Green, Blue, Amber or Pink). 10W Gradus Impression 24v – Whites (available in 2700k, 3000k, 4000k or 6000k). 10W Gradus Impression 24v - Single Colours (available in Red, Green, Blue, Amber or Pink). 15W Gradus Impression 24v – Whites (available in 2700k, 3000k, 4000k or 6000k). Manufacturer guidanceLED Options: |
Sustainability data
Material | Aluminium Polycarbonate |
