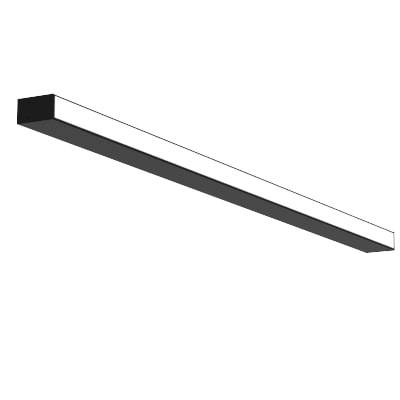

Leck Wall Linear Lighting
Application

Suitable for offices, retail, galleries, lobby areas and healthcare.

Description

Wall mounted slim linear architectural LED lighting.


Features and benefits:

  • Forms a thin, decorative line of continuous light.
  • Designed to add texture to any forward thinking project.
  • A range of size and colour variations are possible.
  • Wide selection of modules available - can be used both as a standalone light and as part of a lighting system. Versatile design blends in with most room geometries.
  • Diffuser clicks out and into place for cleaning and easy access.
  • Internal ballasts or drivers are supplied.

Also available as recessed, surface mounted or suspended (specified separately).

General information

Finish

Polyester powder coat

Material

Extruded aluminium profile with LEDs

Shape

Linear

Size

561 mm

842 mm

1122 mm

1403 mm

1682 mm

Show more

Uniclass 2015

Pr_70_70_48_85 Surface luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Surface luminaires Enhanced data

Standard

Directive 2014/30/EC - EMC.

Third-party certification

Photometrics.

Luminaire description

Wall mounted, tubular strip.

Classification

-

Electric shock

To BS EN 60598-1, Class I.

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Loop wiring.

Nominal voltage

220–240 V.

Luminaire power factor

0.96.

LED luminaires

-

Performance standards

EN 62031, EN 60598-1, EN 60598-2-1, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 55015, EN 62471.

Safety standard

SELV.

Initial LED luminaire efficacy (minimum)

95 lm/W.

Wattage

7.7 W/ 720 lm up to 61.8 W/ 5820 lm.

Colour temperature

3000K.

4000K.

Colour rendering index (Ra)

80+.

Beam angle

180°.

Useful life

50 000 hours (L80B20).

Dimming protocol

DALI Dimming.

DALI Dimming/ Bluetooth.

Non-dimming.

Standard.

Emergency version

-

Standard

Tridonic.

Accessories

Not required.

Ceiling cup, 80 mm.

Insert colour requirements.

Corner joint.

Insert colour requirements.

End cap.

Insert colour requirements.

Power cable, 2000 mm, 4 core.

Power cable, 2000 mm, 5 core.

Straight connector.

Unlit profile, 1000 mm.

Insert colour requirements.

Product Reference

Leck Wall Mounted - LED

Control gear position

Integral within luminaire.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Three hours.

Optics

Microprismatic Diffuser.

Opal Diffuser.

Colour

Black.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<25.8.

Longitudinal

<25.8.

Efficiency

96%.

Frequency

50–60 Hz.

Emergency output

210 lm.

Output direction

Direct/ indirect.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
