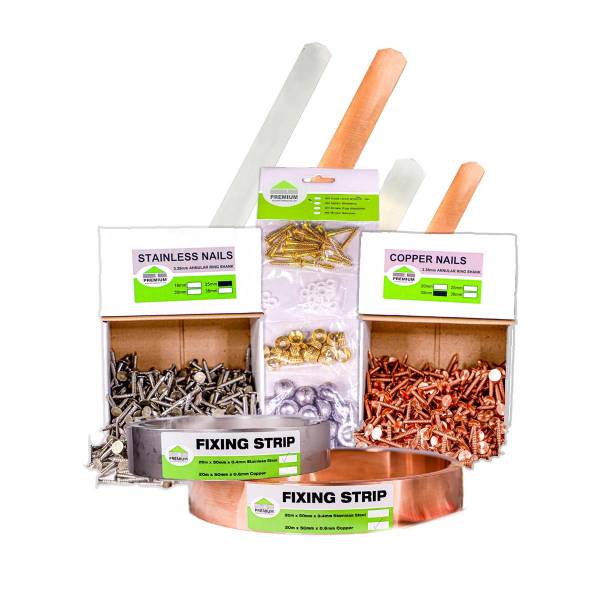

Lead Fixings - Roofing Materials

Verified by manufacturer 5 months ago

Associated Lead Mills

Copper and stainless steel annular ring shank fixings for metal roofing as recommended by trade.

Jump to:
+44 (0)199 2444100 Website

Application

For lead roofing applications.

Description

Premium Fixing Clips and Strip:

Premium Roofing Products provide a selection of fixing clips together with strip, from which fixing clips of the desired size may be cut. Both clips and strip are available in copper and stainless steel. Clips either from 0.6 mm gauge copper or 0.4 mm stainless steel are normally recommended. However, when clips are required to be malleable enough to follow complex profiles, only copper clips can be used. Steel clips are preferred when the clip can only be fixed at its top extremity and rigidity is required, e.g. over a glass roof.


Premium Annular Ring Shank Nails:

Available in both copper and stainless steel. These are recommended by the Lead Sheet Association for fixing the lead sheet panels, clips etc to a timber substrate.


Premium Cast Lead Domes:

For intermediate cladding fixings and for fixing to stone or masonry, brass or stainless steel screws are required. For intermediate fixings, the screw must be covered. Premium Cast Lead Domes are ideal for this application as they are supplied as sets of brass screws, lead buttons and serrated edged washers, over which the buttons are crimped.

General information

Color

Silver

Copper

Material

Copper

Stainless steel

Brass

Uniclass

Pr_20_29_14_86 Steel clipsPrimary

CAWS

H71/110 Lead sheet fully supported roof covering

H71/130 Lead sheet fully supported wall covering

H71/15 Valley gutter linings to slate/ tile roofs

H71/150 Lead sheet fully supported covering to dormers

H71/160 Lead-covered roofing panels

H71/170 Lead-covered cladding panels

H71/180 Lead-wrapped panels

H71/20 Weathering to

H71/210 Gutter lining with proprietary expansion joints

H71/230 Valley gutter lining to slate/ tile roofs

H71/235 Valley gutter lining to lead roofs

H71/240 Valley gutter lining to lead roofs

H71/250 Weathering to

H71/27 Soakers for mitred hips to slate/ plain tile roofs

H71/30 Apron flashings

H71/310 Ridge/ hip rolls to lead roofs

H71/315 Ridge/ hip rolls to slate roofs

H71/35 Cover flashings

H71/41 Soakers and step flashings

H71/410 Apron flashings

H71/420 Cover flashings

H71/430 Cover flashings

H71/440 Soakers and step flashings

H71/45 Step and cover flashings

H71/450 Step and cover flashings

H71/452 Single-step and cover flashings

H71/454 Single-step flashings

H71/456 Step flashings with secret gutter

H71/458 Step and cover flashing with secret gutter

H71/460 Change of roof pitch flashings

H71/470 Flashings

H71/472 Chimney flashings to slate/ plain tile roofs

H71/474 Chimney flashings to single lap tile roofs

H71/476 Chimney damp-proof course

H71/478 Chimney damp-proof course

H71/490 Vertical tiling/ Slating bottom edge flashings

H71/492 Vertical tiling/ Slating top edge flashings

H71/494 Vertical tiling/ Slating side abutment step flashings

H71/496 Vertical tiling/ Slating angle soakers

H71/497 Lead damp-proof course/ Cavity tray at raking abutments

H71/498 Combined lead damp-proof course/ Cavity tray and cover flashing at horizontal abutments

H71/5 Lead sheet fully supported covering to dormers

H71/50 Flashings

H71/52 Chimney flashings

H71/54 Vertical tiling/ Slating bottom edge flashings

H71/55 Vertical tiling/ Slating top edge flashings

H71/56 Vertical tiling/ Slating side abutment step flashings

H71/57 Vertical slating angle soakers

H71/715 Clips

H71/760 Continuous clips

H71/80 Clips

Specification data - Steel clips

Material

Stainless steel.

Guidance for specification option:

Premium Annular Ring Shank Nails.

Premium Fixing Clips.

Premium Fixing Strip.

Copper.

Guidance for specification option:

Premium Annular Ring Shank Nails.

Premium Fixing Clips.

Premium Fixing Strip.

Lead.

Guidance for specification option:

Premium Cast Lead Domes.

Options

Premium Annular Ring Shank Nails, copper.

Guidance for specification option:

Recommended by the Lead Sheet Association for fixing the lead sheet panels, clips etc. to a timber substrate.

Available in 20, 25, 30 and 38 mm lengths – insert requirements.

Premium Annular Ring Shank Nails, stainless steel.

Guidance for specification option:

Recommended by the Lead Sheet Association for fixing the lead sheet panels, clips etc. to a timber substrate.

Available in 20, 25, 30 and 38 mm lengths – insert requirements.

Premium Cast Lead Domes.

Guidance for specification option:

For covering the screws of intermediate fixings.

Supplied as sets of brass screws, lead buttons and serrated edged washers, over which the buttons are crimped.

Premium Fixing Clips, copper.

Guidance for specification option:

When clips are required to be malleable enough to follow complex profiles, only copper clips can be used.

Premium Fixing Clips, stainless steel.

Guidance for specification option:

Steel clips are preferred when the clip can only be fixed at its top extremity and rigidity is required, e.g. over a glass roof.
