Lattice Frame Rail Paving System - TerraSmart® IGNO

Name: Lattice Frame Rail Paving System - TerraSmart® IGNO
Brand: RYNO
SKU: fkmk8y6TfCf47jXwJVj1x4

Verified by manufacturer 20 days ago

RYNO

Product certifications:

Cyclic Wind Load Test Certificate
Certificate type
EPD
Certificate type

Non-combustible rigid paving support rail system.

Jump to:

BOS

+44 (0)203 967 3500 Website

Application

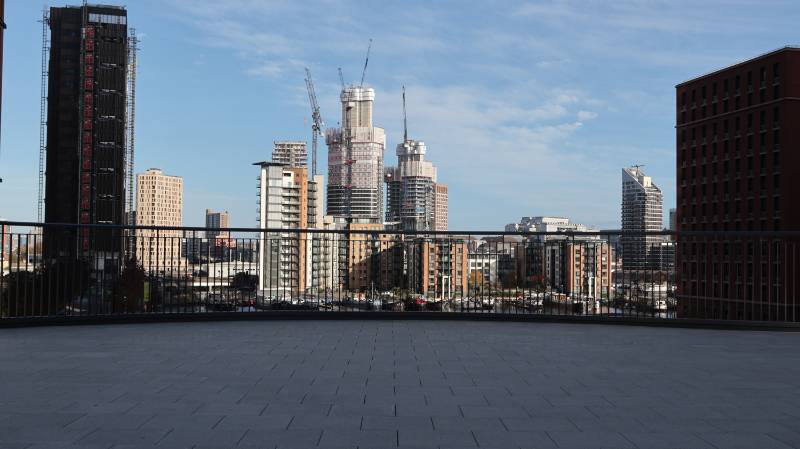

For terraces, podiums, roof decks, inset balconies and other outdoor spaces.

Description

TerraSmart® Rail is made up of strong, 100% recyclable aluminium joists, which overlap to create a lattice framework, offering the maximum possible level of support for the paving surface.

The system is fully non-combustible, achieving a Euroclass A1 fire rating.

Features and benefits:

Allows many different paving layout formats including random length, mixed width, stack bond, stretcher bond, herringbone.
Suitable for use in areas subjected to high foot traffic.
Suitable for projects with maintenance access requirements such as piping or services.
Allows rapid water drainage through paving.

General information

Color	Grey Guidance for specification option: Support pedestals, joists and rails only. Silver Cream Beige Brown Black Copper Show more
Finish	Anti-slip Textured Woodgrain
Material	Steel Aluminium
Shape	Rectangle Square
Length	Bespoke Guidance for specification option: TerraSmart Rail can be configured to suit most applications. For specific design support, please contact specification@rynogroup.co.uk
Width	Bespoke
Height	Bespoke Guidance for specification option: System height varies from 55-652 mm excluding paving thickness.
Warranty description	30 year Guidance for specification option: 30-year warranty and 60-year design life when installed as part of a complete RYNO IGNO system.

Uniclass	Ss_30_14_90_34 Flag and slab pedestal-supported paving systemsPrimary
CAWS	J21/467 Support system for precast concrete paving slabs J31/370 Precast concrete paving slabs J31/375 Paving tiles J31/80 Precast concrete paving slabs J41/467 Support system for precast concrete paving slabs J41/90 Precast concrete paving slabs J42/467 Support system for precast concrete paving slabs K11/295 Floating floor system Q37/460 Support pedestals Q55/395 Support pedestals

Specification data - Flag and slab pedestal-supported paving systems

Classification data
Description	Paving system for waterproofed substrates.
Pedestals	RD-FR Non-Combustible Adjustable Joist Support Pedestal 25–505 mm. ADC Joist Support Cleat 2–27 mm.
Paving units	Porcelain. Concrete. Manufacturer guidance Consult manufacturer and insert details on paving colour, size and laying pattern. Finishes include natural stone effect, contemporary concrete effect and woodgrain effect.
Samples required	Required. Not required.
Fire performance	To EN 13501-5:2016, BRoof(T4).
Load	Concentrated load: >2.0 kN as standard, available up to 4.5 kN if required. Uniformly distributed: >4.0 kN as standard, available up to 7.5 kN if required/m².
Pedestal size	120 x 120 mm Square. 170 mm dia. Circular. 220 mm dia. Circular. Manufacturer guidance Pedestal support base size.
Type	Adjustable. Manufacturer guidance Pedestal type.
Adjustment	44–55 mm. 55–85 mm. 85–145 mm. 145–605 mm. >605 mm. Manufacturer guidance Height ranges exclude paving thickness.
Accessories	Not required. Sound Acoustic Base Rubber Shock Pad. Side Stops. End Stops.
Coating	Pedestal coating: Zinc-nickel electroplating.
Top rail	RST Aluminium Paving Support Rail, 6063 T6, 27 mm. Guidance for specification option: RST27 maximum span 600 mm. RST Aluminium Paving Support Rail, 6063 T6, 62 mm. Guidance for specification option: RST62 maximum span 1200 mm.
Joists	DS Aluminium Joist, 6063 T6, 25 mm. Guidance for specification option: Joist maximum span 600 mm. DS Aluminium Joist, 6063 T6, 50 mm. Guidance for specification option: Joist maximum span 1200 mm. DS Aluminium Joist, 6063 T6, 75 mm. Guidance for specification option: Joist maximum span 1600 mm.
Spacer tab width	2 mm. 4 mm. Manufacturer guidance Spacer tabs: For equal spacing between slabs. Glass-filled nylon.
Finish (top rail and lower joist)	Mill finish.
