Lattice Baffle Trapezium
Verified by manufacturer 3 months ago
Suspended acoustic sculptures
Application
- Can be suspended or direct fixed to ceilings
- Commercial/office spaces
- Education
Description
A collection of acoustic baffles that are suspended or direct fixed to ceiling space. A simple out of the box solution acoustic solution, Lattice easily creates a point of interest in any space.
Features and benefits:
- Delivers excellent acoustic performance
- Gridded configuration designed to absorb echo and reverberation
- Original design, trusted acoustic solution
- Easy to install
- Adjust suspension height to target different acoustic frequencies
- Available in three standard designs and a sophisticated colour palette
- Solid colour and smooth finish
- No capping required
- Customisable
- Carbon neutral
- Made locally
General information
Color | Beige Black Blue Cream Gold Manufacturer guidanceAvailable in a range of colours. |
Finish | Smooth |
Material | Polyester fibre (PET) Guidance for specification option: Polyester fibre (PET). |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings |
Specification data - Sound attenuator infill units
Form | Baffle. |
Rigidity | Semi rigid. |
Application | Ceiling mounting. |
Material | Polyester fibre (PET). |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class A to BS EN ISO 11654. |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class B-s2,d2. |
VOC emissions | 0.092 mg/m³.Guidance for specification option: CDPH Standard Method v1.2-2017: after 14 days, office room scenario |
Dimensions | |
Size (length x width) | 1180 x 2380 mm. |
Thickness (overall) | 290 mm. |
Profile | Lattice. |
Edges | Square. |
Surface pattern | Solid. |
Colour | Acros.Bosco.Empire.Falling water.Flatiron.Ironbank.Opera.Petronas.Pinnacle.Savoye.Senado.Zenith. |
Accessories | Fittings for independent suspension. |
Acoustic performance | 1.40. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polyester fibre (PET) Guidance for specification option: Polyester fibre (PET). |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.89 kg CO₂ eq/kg Self declared |
Recyclability | yes Guidance for specification option: Global GreenTag GreenRate Level A, Declare certified LBC Red List Free, Low VOC and formaldehyde emissions, Contains minimum 60% recycled polyester fibre, 100% recyclable, ISO 14001 certified Environmental Management System (EMS). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Guidance for specification option: Minimum 60% post-consumer recycled PET material. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | IFC2X3 | 2 |
 Revit | Revit 2016 | 3 |
Literature

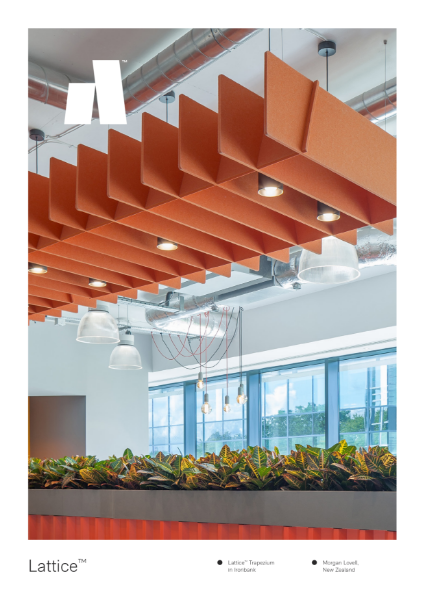

Lattice Lookbook

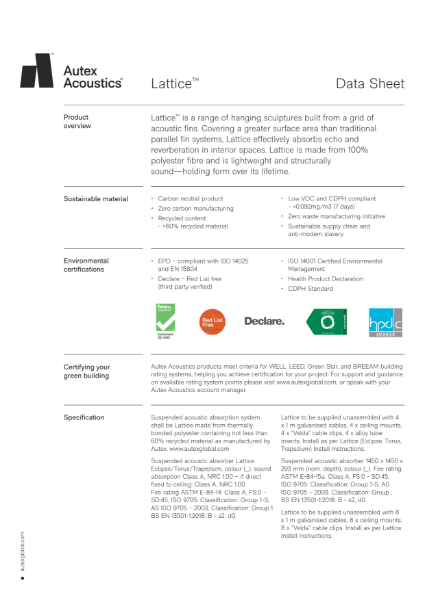

Lattice Datasheet

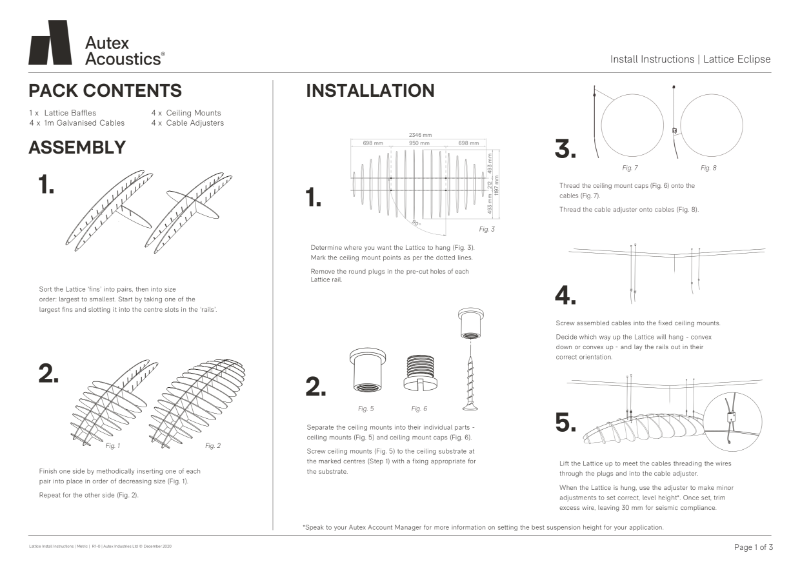

Lattice Install Instructions

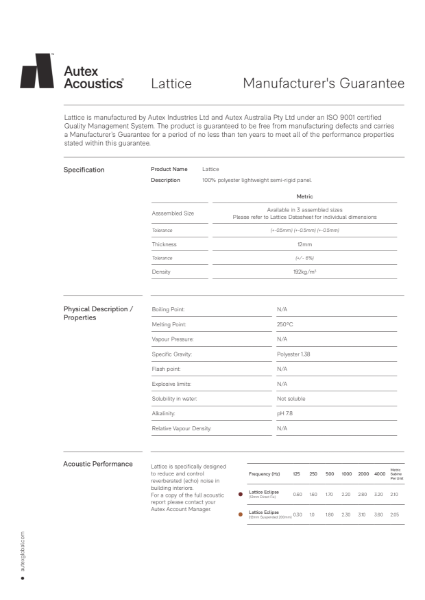

Lattice Manufacturers Guarantee
Colour Guide
Case studies
Acoustics for learning environments
