Compare

Lattice Baffle Torus

Name: Lattice Baffle Torus
Brand: Autex Acoustics Ltd
SKU: 6b1EbZDB5Sv873ogPfkXYJ

Verified by manufacturer 4 months ago

Autex Acoustics Ltd

Suspended acoustic sculptures

Jump to:

BOS

+44 (0)1422 418 899 Website

Application

Can be suspended or direct fixed to ceilings
Commercial/office spaces
Education

Description

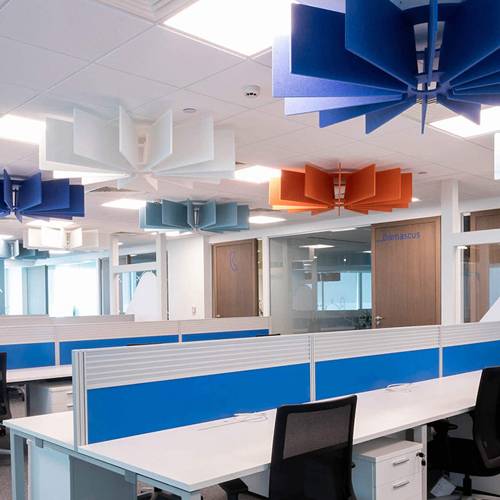

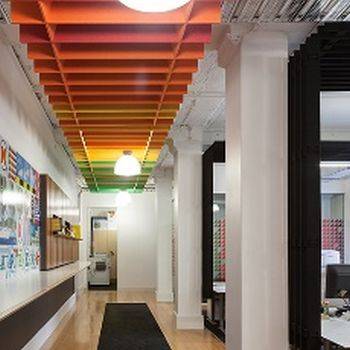

A collection of acoustic baffles that are suspended or direct fixed to ceiling space. A simple out of the box solution acoustic solution, Lattice easily creates a point of interest in any space.

Features and benefits:

Delivers excellent acoustic performance
Gridded configuration designed to absorb echo and reverberation
Original design, trusted acoustic solution
Easy to install
Adjust suspension height to target different acoustic frequencies
Available in three standard designs and a sophisticated colour palette
Solid colour and smooth finish
No capping required
Customisable
Carbon neutral
Made locally

General information

Color	Beige Black Blue Cream Gold Green Grey Ivory White Yellow Pink Purple Brown Orange Turquoise Show more Manufacturer guidance Available in a range of colours.
Finish	Smooth
Material	Polyester fibre (PET) Guidance for specification option: Polyester fibre (PET).
Shape	Circle
Warranty description	Ten year

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary Ss_25_25_75_05 Acoustic panel lining systems
CAWS	K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings

Specification data - Sound attenuator infill units

Form	Baffle.
Rigidity	Semi rigid.
Application	Ceiling mounting.
Material	Polyester fibre (PET).
Acoustic performance	-
Purpose	Absorber.
Sound absorption	Class A to BS EN ISO 11654.
Fire performance	-
Reaction to fire	To BS EN 13501-1, Class B-s2,d2.
VOC emissions	0.092 mg/m³. Guidance for specification option: CDPH Standard Method v1.2-2017: after 14 days, office room scenario
Dimensions	-
Size (length x width)	1450 x 1450 mm.
Thickness (overall)	293 mm.
Profile	Lattice.
Edges	Square.
Surface pattern	Solid.
Colour	Acros. Bosco. Empire. Falling water. Flatiron. Ironbank. Opera. Petronas. Pinnacle. Savoye. Senado. Zenith.

Acoustic performance	1.15.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Polyester fibre (PET) Guidance for specification option: Polyester fibre (PET).
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	1.89 kg CO₂ eq/kg Self declared
Recyclability	yes Guidance for specification option: Global GreenTag GreenRate Level A, Declare certified LBC Red List Free, Low VOC and formaldehyde emissions, Contains minimum 60% recycled polyester fibre, 100% recyclable, ISO 14001 certified Environmental Management System (EMS).
Recycled content As defined in clause 7.8 of BS EN ISO 14021	60 % Guidance for specification option: Minimum 60% post-consumer recycled PET material.
